Installation

PARKING BRAKE: PARKING BRAKE SWITCH: INSTALLATION

1. INSTALL PARKING BRAKE SWITCH ASSEMBLY

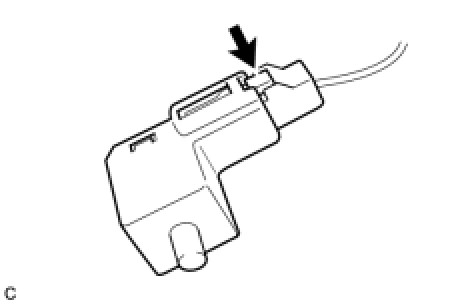

(a) Connect the connector to the parking brake switch assembly.

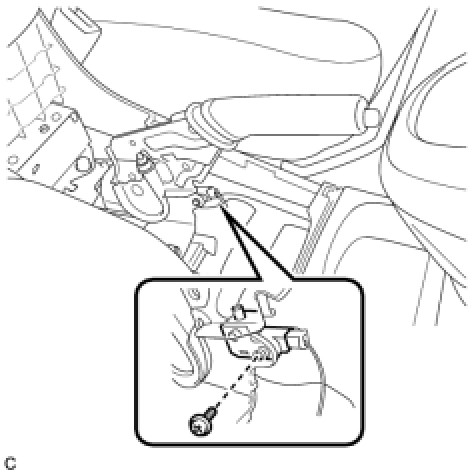

(b) Install the parking brake switch assembly to the parking brake lever assembly with the screw.





Torque : 0.9 Nm (9 kgf-cm, 8 in-lbf)

2. INSPECT BRAKE WARNING LIGHT Adjustments

3. INSTALL FRONT UPPER CONSOLE BOX Installation
