Removal

AUDIO / VIDEO: MICROPHONE AMPLIFIER: REMOVAL

1. REMOVE MAP LIGHT ASSEMBLY (w/o Sliding Roof) Removal

2. REMOVE MAP LIGHT ASSEMBLY (w/ Sliding Roof) Removal

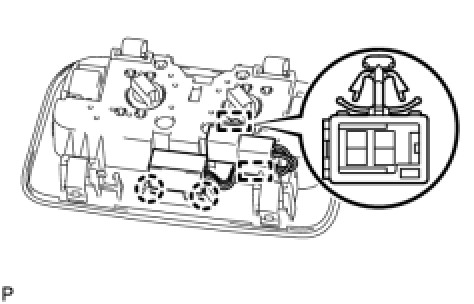

3. REMOVE TELEPHONE MICROPHONE ASSEMBLY (w/o Sliding Roof)

(a) Disengage the 2 clamps.





(b) Disengage the 2 claws and remove the telephone microphone assembly.

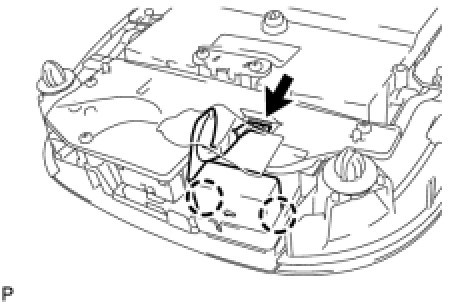

4. REMOVE TELEPHONE MICROPHONE ASSEMBLY (w/ Sliding Roof)

(a) Disconnect the connector.





(b) Disengage the 2 claws and remove the telephone microphone assembly.
