Removal

AUDIO / VIDEO: AMPLIFIER ANTENNA: REMOVAL

1. REMOVE ROOF HEADLINING ASSEMBLY

Removal

2. REMOVE ROOF ANTENNA POLE SUB-ASSEMBLY

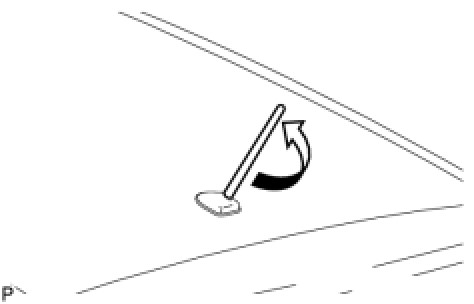

(a) Remove the roof antenna pole sub-assembly by turning it in the direction of the arrow shown in the illustration.





3. REMOVE AMPLIFIER ANTENNA ASSEMBLY

(a) Remove the antenna nut.





(b) Remove the antenna wire from the 4 clamps.

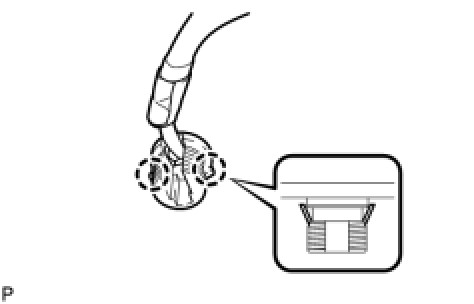

(c) Disengage the 2 claws and remove the amplifier antenna assembly.
