Operating Light Control Rheostat does not Change Light Brightness: Procedure

1. Operate the Techstream according to the display and select Data List, refer to DATA LIST / ACTIVE TEST .
   COMBINATION METER



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Tail Cancel SW*	TAIL cancel switch condition/ON or OFF	ON: TAIL cancel switch ON OFF: TAIL cancel switch OFF	-
   Rheostat value	Light control rheostat switch input/Min.: 0, Max.: 100	Light control rheostat switch is fully turned right (0) → fully turned left (100)	Unit: %

   HINT:

   *: w/ TAIL Cancel Switch

   OK

   Light brightness can be changed within specified range by manual operation.

NG → See step   2

OK → See step   6

1. Inspect the light control rheostat.

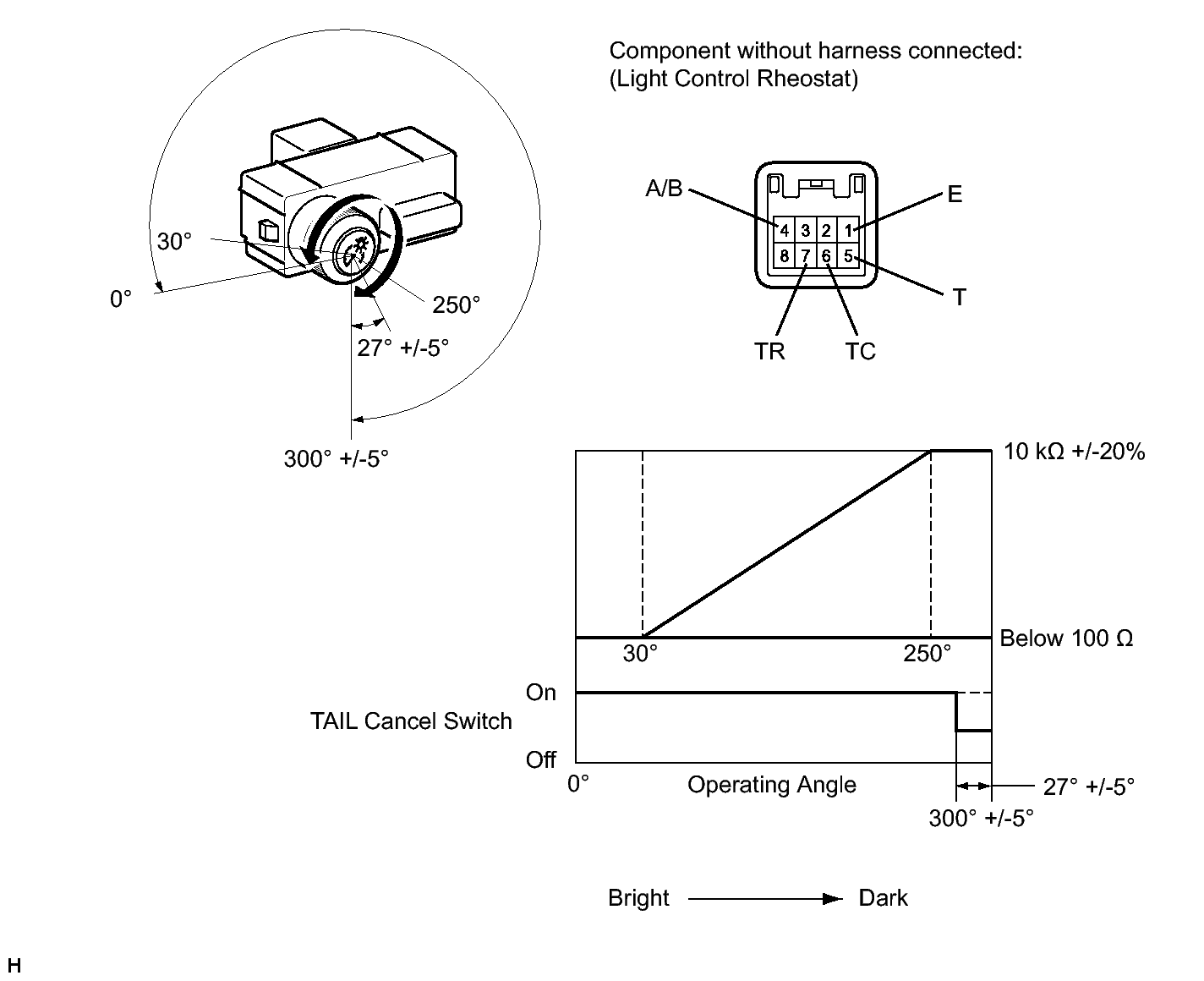

   Fig 1: Identifying Light Control Rheostat Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Remove the light control rheostat, refer to REMOVAL .
   2. Measure the resistance according to the table below.

      Standard Resistance

      Tester Connection	Switch Condition	Specified Condition
      6 (TC) - 1 (E)	TAIL cancel switch off → on	10 kΩ or higher → Below 1 Ω
      5 (T) - 1 (E)	Always	10 kΩ or higher
      7 (TR) - 1 (E)	Light control rheostat fully turned right → fully turned left	10 kΩ or higher → Below 100 Ω

2. Inspect the trip switch.
   1. Measure the resistance according to the table below.

      Standard Resistance

      Tester Connection	Switch Condition	Specified Condition
      4 (A/B) - 1 (E)	TRIP switch on (Pushed)	Below 200 Ω
      	TRIP switch off (Not Pushed)	1 MΩ or higher

NG → See step   7

OK: Go to next step

Fig 2: Identifying E8 Meter Connector And E9 Rheostat Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the E8 meter connector.
2. Disconnect the E9 rheostat connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E8-18 (ILL+) - E9-5 (T)	Always	Below 1 Ω
   E8-19 (TR) - E9-7 (TR)
   E8-23 (E2) - E9-1 (E)
   E8-20 (TC) - E9-6 (TC)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the combination meter assembly with a new or normally operating one. Perform an operation inspection.

   OK

   Combination meter assembly operates normally.

NG → See step   8

OK → See step   5
