Engine Coolant Temperature Sensor: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL ENGINE COOLANT TEMPERATURE SENSOR
1. Install a new gasket to the sensor.

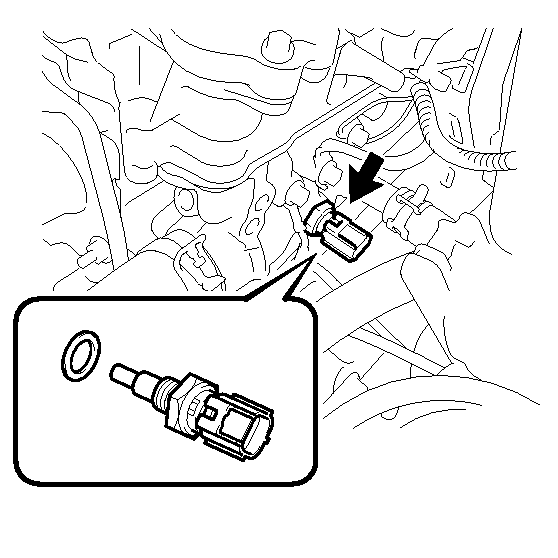

  Fig 1: Locating Gasket & Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the engine coolant temperature sensor.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
3. Connect the engine coolant temperature sensor connector.

  Fig 2: Locating Engine Coolant Temperature Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CASE . Refer to INSTALLATION - Step 53
INSTALL AIR CLEANER CAP SUB-ASSEMBLY See step 2
INSTALL NO. 1 VACUUM SWITCHING VALVE . Refer to INSTALLATION - Step 1
ADD ENGINE COOLANT . Refer to REPLACEMENT - Step 3
INSPECT FOR COOLANT LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 89
INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 12
INSTALL WINDSHIELD WIPER MOTOR AND LINK
HINT:

See the steps from "Install Windshield Wiper Motor and Link Assembly" through "Install front wiper arm and blade assembly LH", refer to INSTALLATION .
INSTALL NO. 1 ENGINE UNDER COVER
