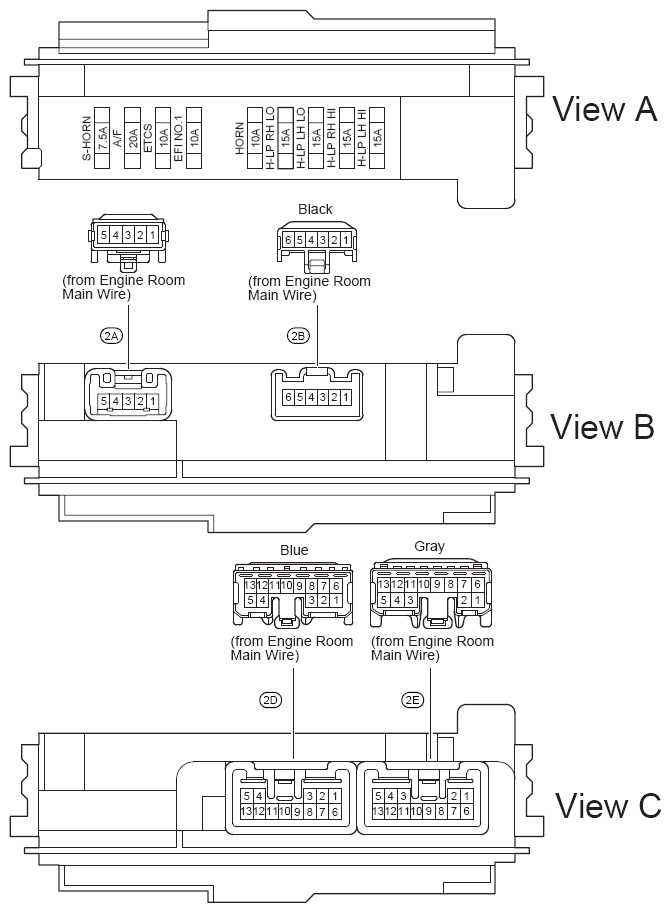

Engine Room Relay Block Assembly And Engine Room Junction Block Assembly
Front Fender Apron LH (See Figure)

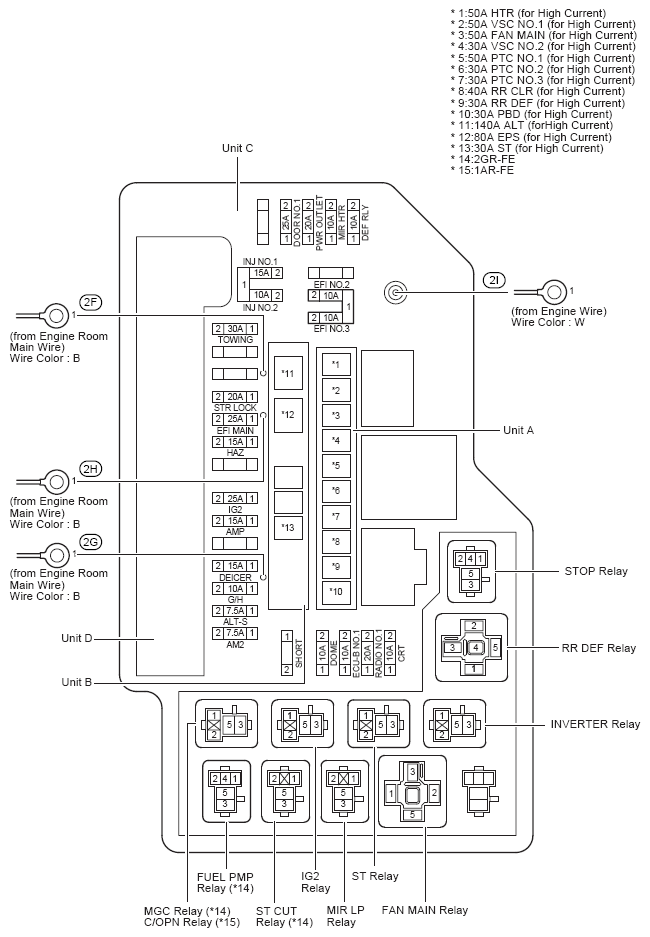

ENGINE ROOM J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Stop Relay |
| RR DEF Relay |
| Inverter Relay |
| Fan Main Relay |
| MIR LP Relay |
| ST CUT Relay (2GR-FE) |
| MGC Relay (2GR-FE) |
| C/OPN Relay (IAR-FE) |
| ST Relay |
| IG2 Relay |
| Fuel PMP Relay (2GR-FE) |
ENGINE ROOM R/B ASSEMBLY AND ENGINE ROOM J/B ASSEMBLY FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 7.5A | AM2 | Automatic Light Control and Light Auto Turn Off System |
| Door Lock Control, Back Door Opener (w/o Power Back Door) and Glass Hatch Opener | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (2GR-FE) | ||
| Power Back Door | ||
| Power Window | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Key System | ||
| 7.5A | S-HORN | Smart Key System |
| Theft Deterrent | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 10A | CRT | Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) |
| 10A | DEF RLY | Rear Window Defogger |
| 10A | DOME | ABS, TRAC, VSC, Downhill Assist Control and Hill-Start Assist Control |
| Air Conditioning | ||
| Audio System (Except JBL) | ||
| Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) | ||
| Charging | ||
| Clock (w/Multi Display), Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Combination Meter | ||
| Cooling Fan | ||
| Cruise Control (1AR-FE) | ||
| Cruise Control (2GR-FE) | ||
| Door Lock Control, Back Door Opener (w/o Power Back Door) and Glass Hatch Opener | ||
| Electronically Controlled Transmission and A/T Indicator (1AR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (1AR-FE) | ||
| Engine Control (2GR-FE) | ||
| EPS | ||
| Front Fog Light | ||
| Garage Door Opener | ||
| Headlight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) | ||
| Power Back Door | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Key System | ||
| SRS | ||
| Taillight and Illumination | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 10A | ECU-B NO.1 | ABS, TRAC, VSC, Downhill Assist Control and Hill-Start Assist Control |
| Air Conditioning | ||
| Audio System (Except JBL) | ||
| Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Charging | ||
| Clock (w/Multi Display), Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Clock (w/o Multi Display) | ||
| Combination Meter | ||
| Cooling Fan | ||
| Cruise Control (1AR-FE) | ||
| Cruise Control (2GR-FE) | ||
| Door Lock Control, Back Door Opener (w/o Power Back Door) and Glass Hatch Opener | ||
| Electronically Controlled Transmission and A/T Indicator (1AR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (1AR-FE) | ||
| Engine Control (2GR-FE) | ||
| Engine Immobiliser System (w/o Smart Key System) | ||
| EPS | ||
| Front Fog Light | ||
| Headlight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) | ||
| Power Back Door | ||
| Power Window | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Key System | ||
| SRS | ||
| Taillight and Illumination | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 10A | EFI NO.1 | Cruise Control (1AR-FE) |
| Cruise Control (2GR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (1AR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (1AR-FE) | ||
| Engine Control (2GR-FE) | ||
| Smart Key System | ||
| 10A | EFI NO.2 | Cruise Control (1AR-FE) |
| Cruise Control (2GR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (1AR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (1AR-FE) | ||
| Engine Control (2GR-FE) | ||
| 10A | EFI NO.3 | Electronically Controlled Transmission and A/T Indicator (1AR-FE) |
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (1AR-FE) | ||
| Engine Control (2GR-FE) | ||
| 10A | ETCS | Cruise Control (1AR-FE) |
| Cruise Control (2GR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (1AR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (1AR-FE) | ||
| Engine Control (2GR-FE) | ||
| 10A | G/H | Door Lock Control, Back Door Opener (w/o Power Back Door) and Glass Hatch Opener |
| Interior Light | ||
| Mirror Heater | ||
| Smart Key System | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 10A | HORN | Horn |
| Smart Key System | ||
| Theft Deterrent | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 10A | INJ NO.2 | Clock (w/Multi Display), Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) |
| Combination Meter | ||
| Engine Control (1AR-FE) | ||
| Engine Control (2GR-FE) | ||
| 10A | MIR HTR | Mirror Heater |
| 15A | AMP | Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) |
| 15A | HAZ | Trailer Towing |
| Turn Signal and Hazard Warning Light | ||
| 15A | H-LP LH HI | Headlight |
| 15A | H-LP LH LO | Headlight |
| 15A | H-LP RH HI | Headlight |
| 15A | H-LP RH LO | Headlight |
| 15A | INJ NO.1 | Ignition (1AR-FE) |
| Ignition (2GR-FE) | ||
| 15A | RADIO NO.1 | Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) |
| 20A | A/F | Engine Control (1AR-FE) |
| Engine Control (2GR-FE) | ||
| 20A | RADIO NO.1 | Audio System (Except JBL) |
| 20A | STR LOCK | Smart Key System |
| 25A | DOOR NO.1 | Air Conditioning |
| Automatic Light Control and Light Auto Turn Off System | ||
| Clock (w/Multi Display), Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Combination Meter | ||
| Door Lock Control, Back Door Opener (w/o Power Back Door) and Glass Hatch Opener | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (2GR-FE) | ||
| Front Fog Light | ||
| Headlight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) | ||
| Power Back Door | ||
| Power Window | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Key System | ||
| Taillight and Illumination | ||
| Theft Deterrent | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 25A | EFI MAIN | Cooling Fan |
| Cruise Control (1AR-FE) | ||
| Cruise Control (2GR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (1AR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (1AR-FE) | ||
| Engine Control (2GR-FE) | ||
| 25A | IG2 | Electronically Controlled Transmission and A/T Indicator (2GR-FE) |
| Engine Control (2GR-FE) | ||
| Smart Key System | ||
| 30A | PBD | Power Back Door |
| 30A | PTC NO.2 | Air Conditioning |
| 30A | PTC NO.3 | Air Conditioning |
| 30A | RR DEF | Rear Window Defogger |
| 30A | ST | Electronically Controlled Transmission and A/T Indicator (2GR-FE) |
| Engine Control (2GR-FE) | ||
| Smart Key System | ||
| Starting (w/o Smart Key System) | ||
| 30A | TOWING | Trailer Towing |
| 30A | VSC NO.2 | ABS, TRAC, VSC, Downhill Assist Control and Hill-Start Assist Control |
| 40A | RR CLR | Air Conditioning |
| 50A | FAN MAIN | Cooling Fan |
| 50A | HTR | Air Conditioning |
| 50A | PTC NO.1 | Air Conditioning |
| 50A | VSC NO.1 | ABS, TRAC, VSC, Downhill Assist Control and Hill-Start Assist Control |
| 80A | EPS | EPS |
| 140A | ALT | Automatic Light Control and Light Auto Turn Off System |
| Charging | ||
| Front Fog Light | ||
| Power Window | ||
| Starting (w/o Smart Key System) | ||
| Taillight and Illumination | ||
| Theft Deterrent | ||
| Trailer Towing | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
Front Fender Apron LH (See Figure)
ENGINE ROOM J/B FUSE IDENTIFICATION LEGEND
| See ENGINE ROOM R/B ASSEMBLY AND ENGINE ROOM J/B ASSEMBLY FUSE IDENTIFICATION LEGEND . |
