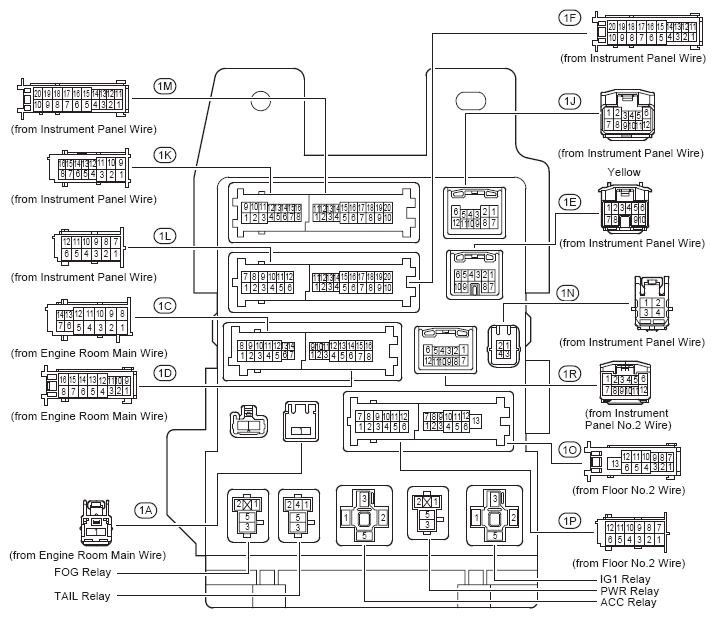

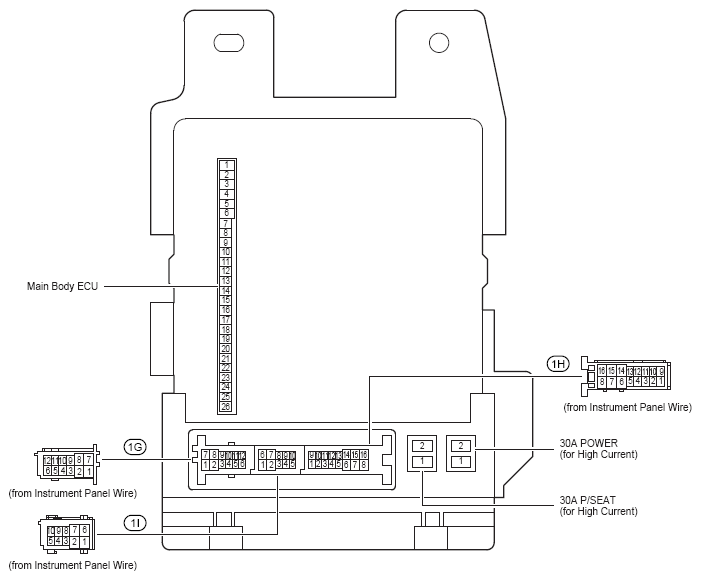

Instrument Panel Junction Block Assembly

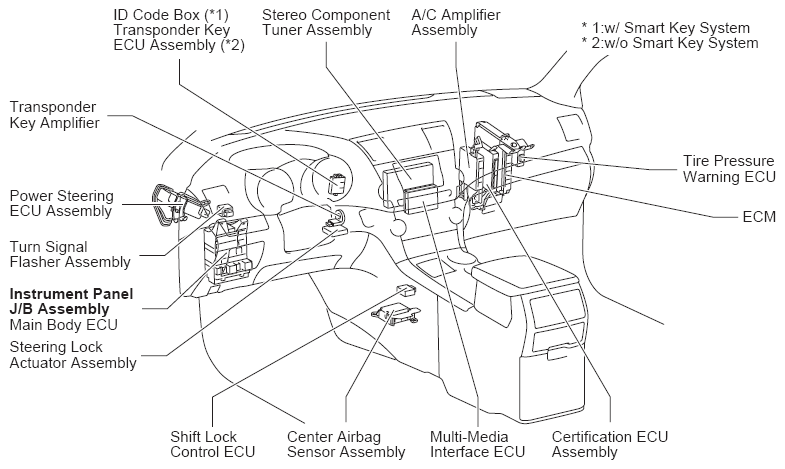

Near Lower Finish Panel (See Figure)
INSTRUMENT PANEL J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Tail Relay |
| Fog Relay |
| IG1 Relay |
| PWR Relay |
| ACC Relay |
INSTRUMENT PANEL J/B ASSEMBLY FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | AM1 | Cruise Control (1AR-FE) |
| Electronically Controlled Transmission and A/T Indicator (1AR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (1AR-FE) | ||
| Engine Control (2GR-FE) | ||
| Starting (w/o Smart Key System) | ||
| 7.5A | ECU IG NO.2 | Smart Key System |
| Stop Light | ||
| Trailer Towing | ||
| 7.5A | ECU-ACC | Air Conditioning |
| Automatic Light Control and Light Auto Turn Off System | ||
| Clock (w/Multi Display), Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Combination Meter | ||
| Door Lock Control, Back Door Opener (w/o Power Back Door) and Glass Hatch Opener | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (2GR-FE) | ||
| Front Fog Light | ||
| Headlight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) | ||
| Power Back Door | ||
| Power Window | ||
| Remote Control Mirror | ||
| Seat Belt Warning | ||
| Shift Lock | ||
| Sliding Roof | ||
| Smart Key System | ||
| Taillight and Illumination | ||
| Theft Deterrent | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 7.5A | GAUGE NO.2 | ABS, TRAC, VSC, Downhill Assist Control and Hill-Start Assist Control |
| Air Conditioning | ||
| Audio System (Except JBL) | ||
| Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) | ||
| Charging | ||
| Clock (w/Multi Display), Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Combination Meter | ||
| Cooling Fan | ||
| Cruise Control (1AR-FE) | ||
| Cruise Control (2GR-FE) | ||
| Door Lock Control, Back Door Opener (w/o Power Back Door) and Glass Hatch Opener | ||
| Electronically Controlled Transmission and A/T Indicator (1AR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (1AR-FE) | ||
| Engine Control (2GR-FE) | ||
| EPS | ||
| Front Fog Light | ||
| Headlight | ||
| Key Reminder (w/o Smart Key System) | ||
| Power Back Door | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Key System | ||
| SRS | ||
| Taillight and Illumination | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 7.5A | OBD | Data Link Connector 3 |
| 7.5A | PANEL | Taillight and Illumination |
| 7.5A | RADIO NO.2 | Audio System (Except JBL) |
| Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) | ||
| Clock (w/o Multi Display) | ||
| Taillight and Illumination | ||
| 10A | A/C NO.1 | Air Conditioning |
| 10A | A/C NO.2 | Air Conditioning |
| Cooling Fan | ||
| 10A | ECU IG NO.1 | ABS, TRAC, VSC, Downhill Assist Control and Hill-Start Assist Control |
| Air Conditioning | ||
| Automatic Glare-Resistant EC Mirror | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Clock (w/Multi Display), Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Combination Meter | ||
| Cruise Control (1AR-FE) | ||
| Cruise Control (2GR-FE) | ||
| Door Lock Control, Back Door Opener (w/o Power Back Door) and Glass Hatch Opener | ||
| Electronically Controlled Transmission and A/T Indicator (1AR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (2GR-FE) | ||
| EPS | ||
| Front Fog Light | ||
| Headlight | ||
| Interior Light | ||
| Key Reminder (w/o Smart Key System) | ||
| Power Back Door | ||
| Power Window | ||
| Seat Belt Warning | ||
| Seat Heater | ||
| Shift Lock | ||
| Sliding Roof | ||
| Smart Key System | ||
| Taillight and Illumination | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 10A | FR FOG | Front Fog Light |
| 10A | GAUGE NO.1 | ABS, TRAC, VSC, Downhill Assist Control and Hill-Start Assist Control |
| Air Conditioning | ||
| Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) | ||
| Back-Up Light | ||
| Charging | ||
| Clock (w/Multi Display), Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Cruise Control (1AR-FE) | ||
| Cruise Control (2GR-FE) | ||
| Door Lock Control, Back Door Opener (w/o Power Back Door) and Glass Hatch Opener | ||
| Electronically Controlled Transmission and A/T Indicator (1AR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Front Window Deicer | ||
| Interior Light | ||
| Mirror Heater | ||
| Power Back Door | ||
| Rear Window Defogger | ||
| Seat Belt Warning | ||
| Trailer Towing | ||
| Turn Signal and Hazard Warning Light | ||
| 10A | IGN | Cruise Control (1AR-FE) |
| Cruise Control (2GR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (1AR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (1AR-FE) | ||
| Engine Control (2GR-FE) | ||
| Engine Immobiliser System (w/o Smart Key System) | ||
| Seat Belt Warning | ||
| Smart Key System | ||
| SRS | ||
| 10A | STOP | ABS, TRAC, VSC, Downhill Assist Control and Hill-Start Assist Control |
| Clock (w/Multi Display), Multi Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| Cruise Control (1AR-FE) | ||
| Cruise Control (2GR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (1AR-FE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FE) | ||
| Engine Control (1AR-FE) | ||
| Engine Control (2GR-FE) | ||
| Shift Lock | ||
| Smart Key System | ||
| Stop Light | ||
| Trailer Towing | ||
| 15A | ACC SOCK NO.1 | Power Outlet (12V) |
| 15A | DEICER | Front Window Deicer |
| 15A | RR WIP | Rear Wiper and Washer |
| 15A | TAIL | Front Fog Light |
| Taillight and Illumination | ||
| Trailer Towing | ||
| 20A | S/ROOF | Sliding Roof |
| 20A | S-HTR | Seat Heater |
| 20A | WASH | Front Wiper and Washer |
| Rear Wiper and Washer | ||
| 25A | ACC SOCK NO.2 | Power Outlet (12V) |
| 25A | DOOR NO.2 | Power Window |
| 25A | RR DOOR LH | Power Window |
| 25A | RR DOOR RH | Power Window |
| 30A | FR WIP | Front Wiper and Washer |
| 30A | P/SEAT | Power Seat (Driver's Seat) |
| 30A | P/SEAT (PS) | Power Seat (Front Passenger's Seat) |
| 30A | POWER | Power Window |
