Overall Electrical Wiring Diagram
>>
Rear Wiper and Washer: Trailer Towing
Rear Wiper and Washer: Trailer Towing

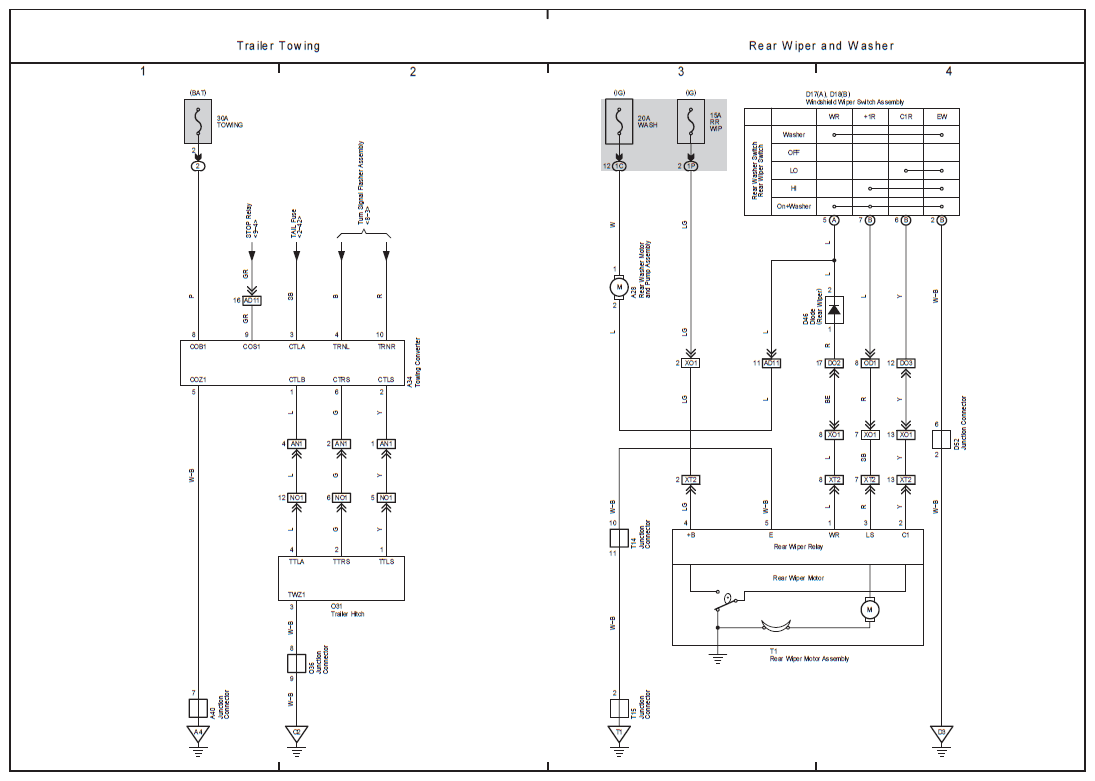

Fig 1: Trailer Towing With Rear Wiper And Washer Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
