Toyota
>>
2011
>>
Highlander Limited, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Overall Electrical Wiring Diagram (Except Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Power Outlet (12V)
Power Outlet (12V)

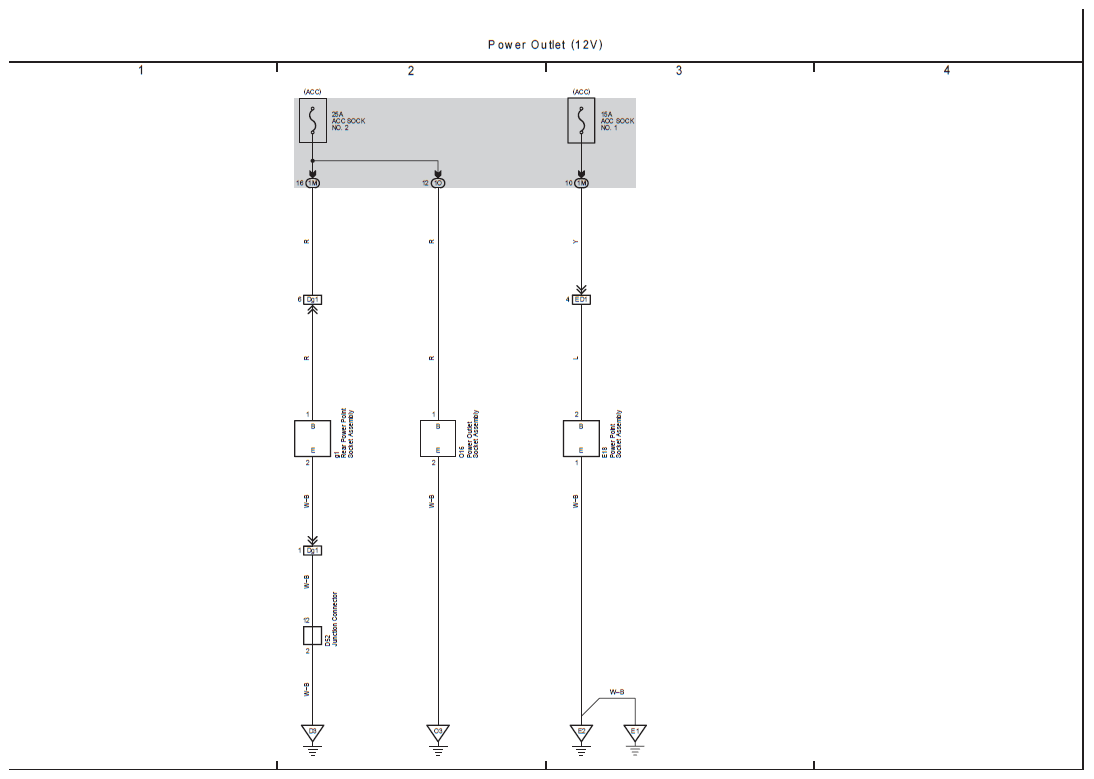

Fig 1: Power Outlet (12V) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
