How To Read This Section

* The System shown here is an EXAMPLE ONLY. It is different to the actual circuit shown in the wiring diagram section.

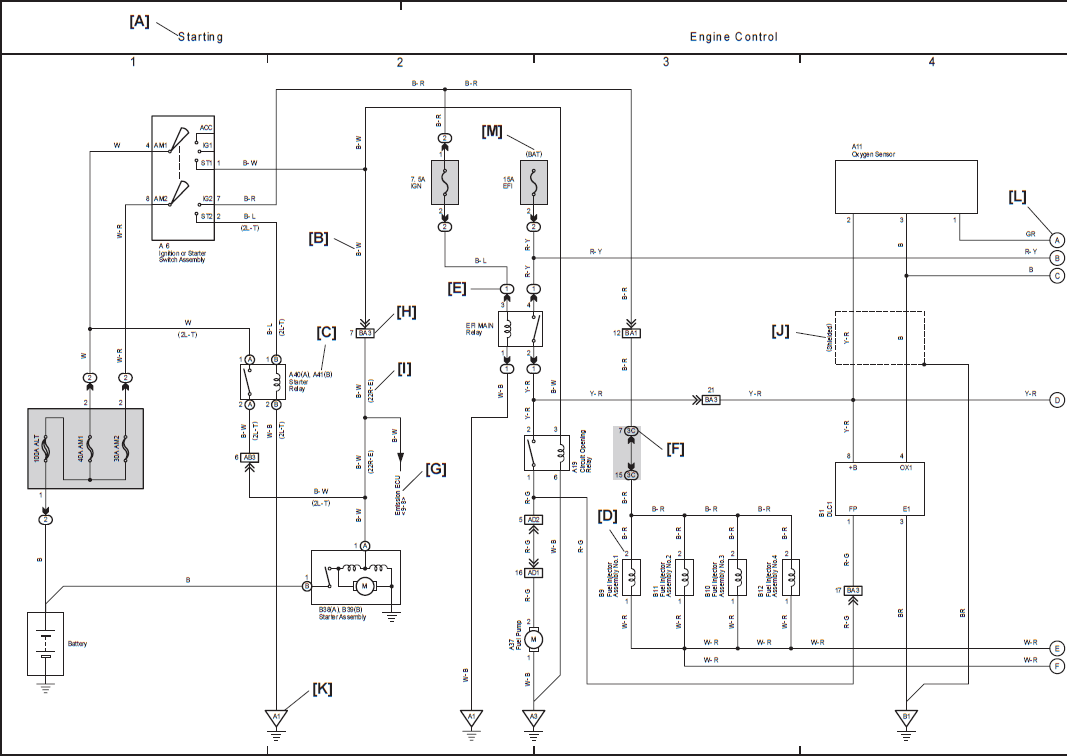

Fig 1: Electrical Wiring Diagram Example

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

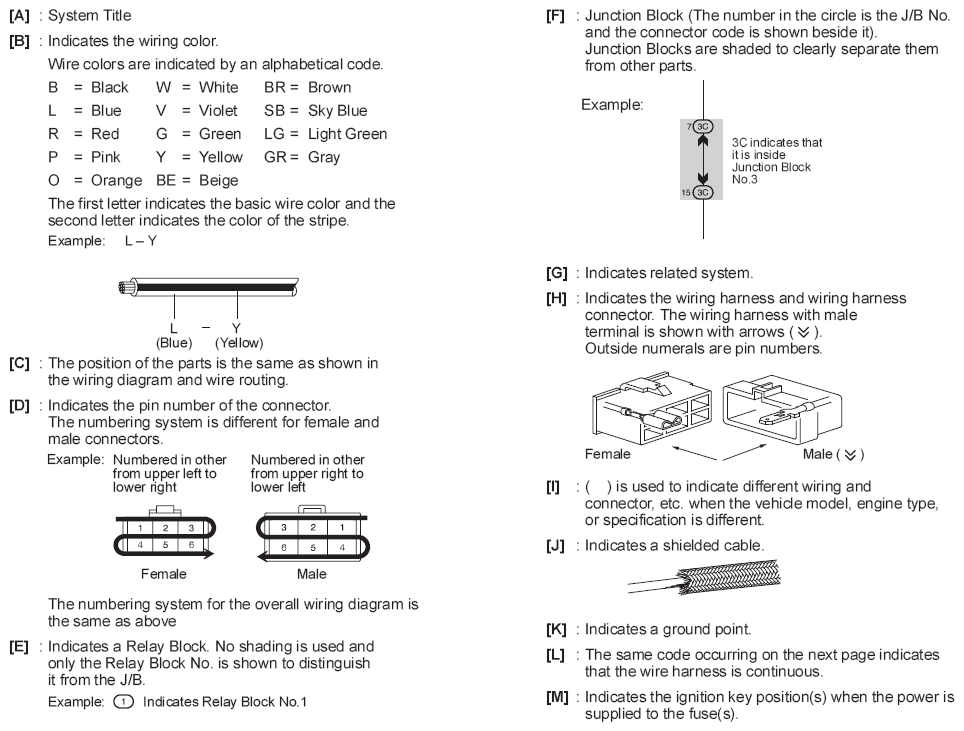

Fig 2: Electrical Wiring Diagram Example (Legends)
