Front Window Deicer: Horn: Shift Lock

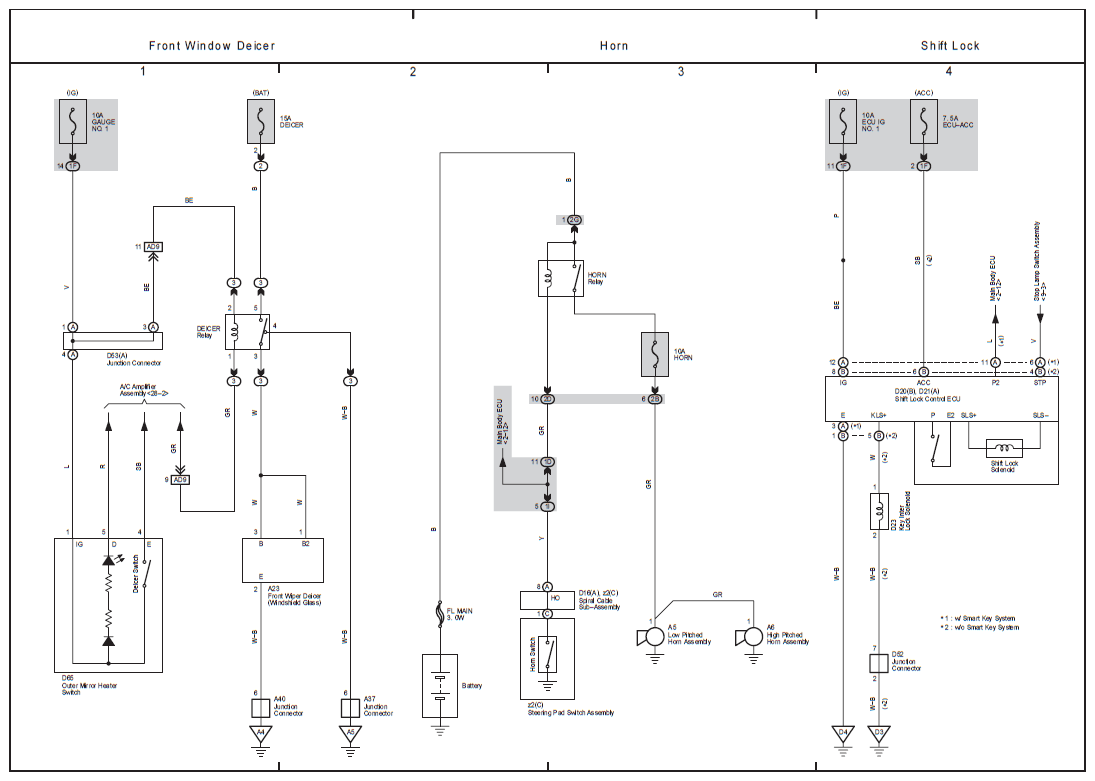

Fig 1: Horn Electrical Wiring Diagram

G07114857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
