Automatic Glare-Resistant EC Mirror: Clock (w/o Multi Display): Sliding Roof

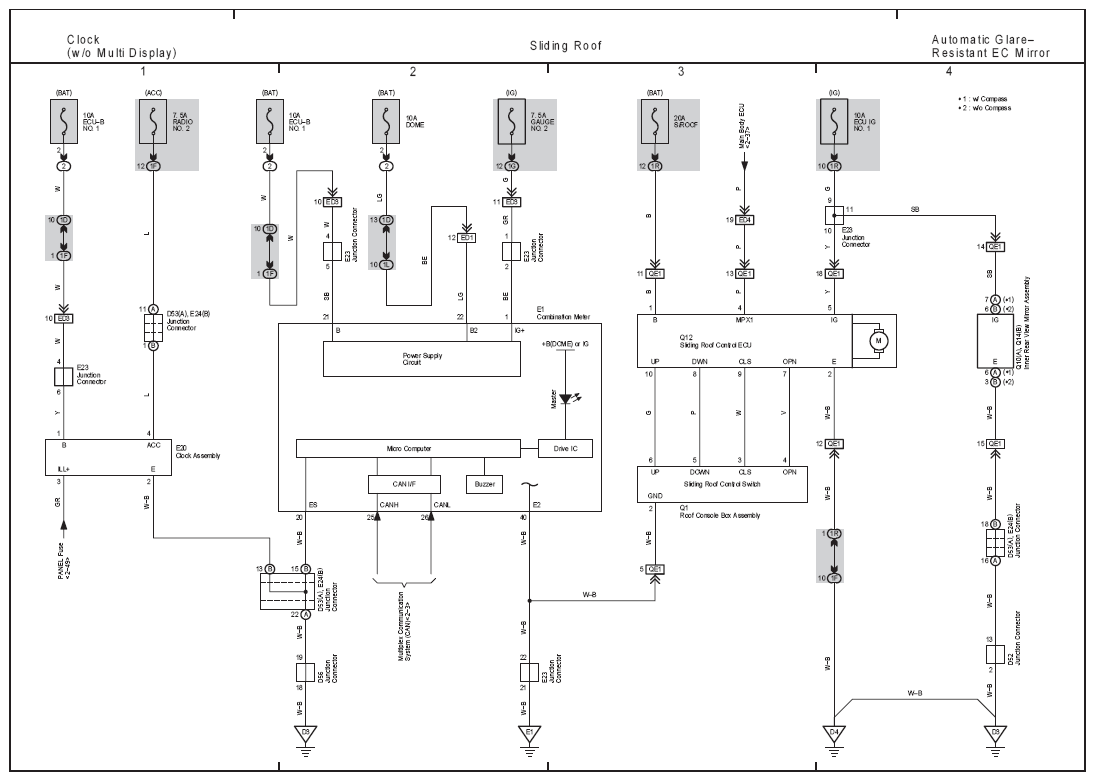

Fig 1: Sliding Roof Electrical Wiring Diagram

G07122590

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
