Audio System (JBL): Navigation System: Parking Assist (Rear View Monitor w/Navigation System)

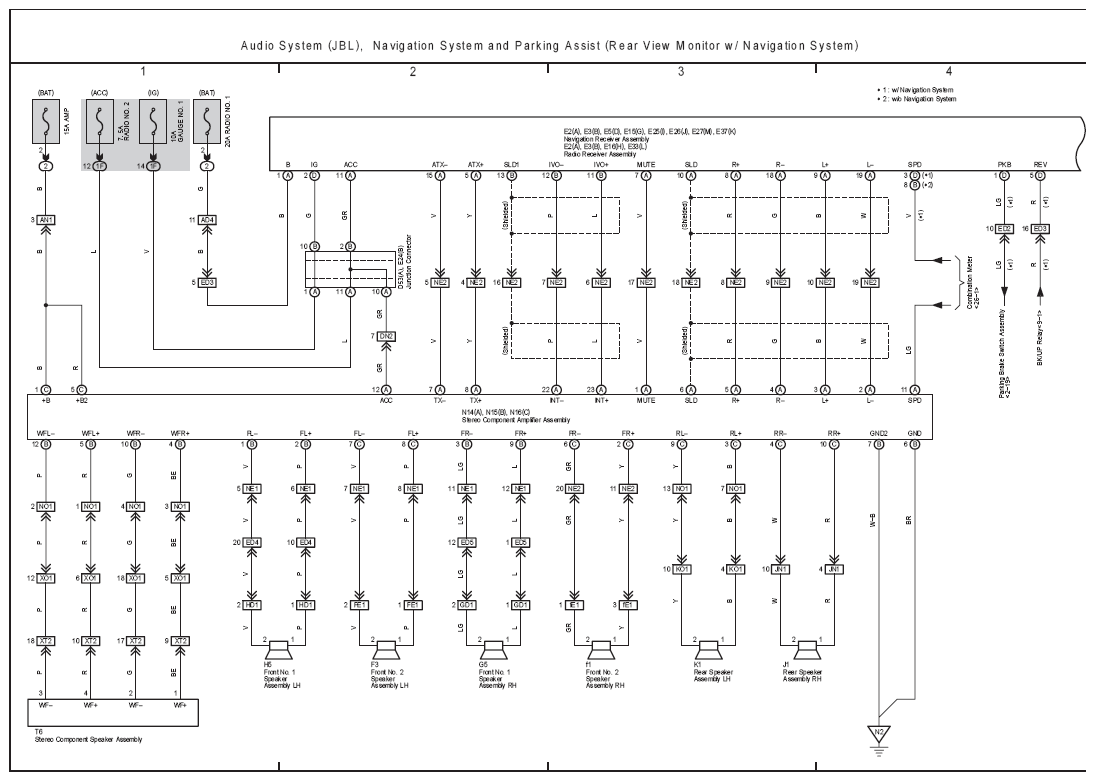

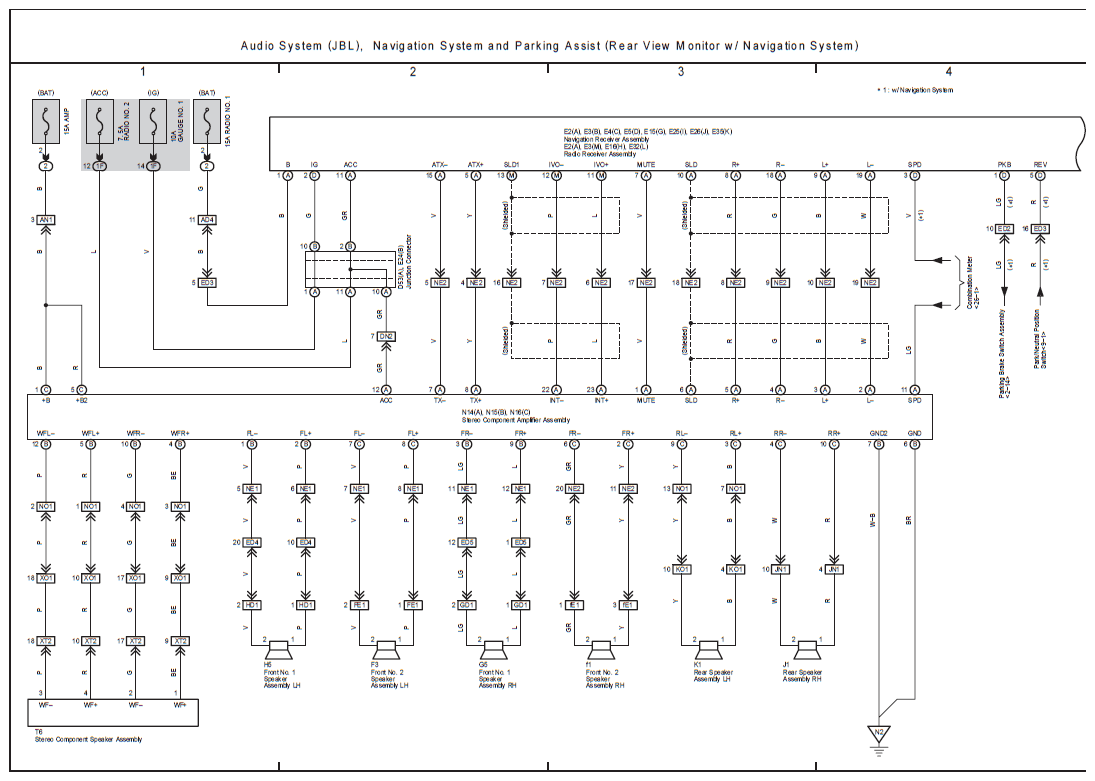

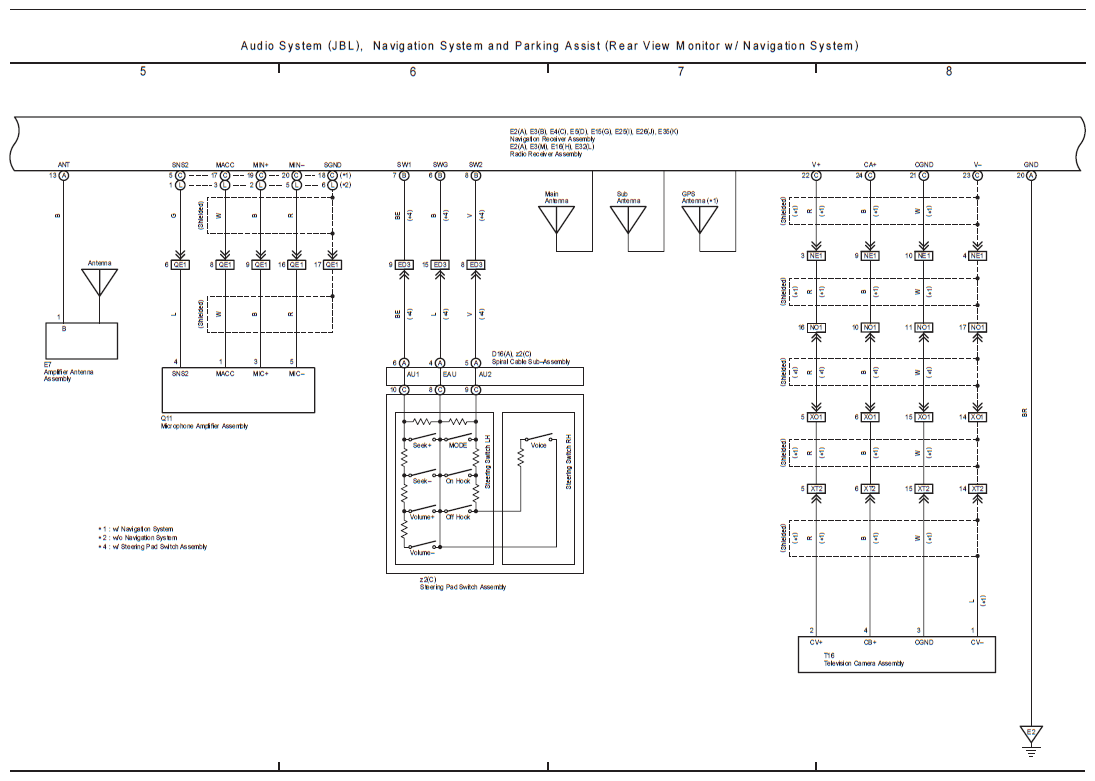

Fig 1: Audio System (JBL), Navigation System And Parking Assist (Rear View Monitor w/ N Avigation System) Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

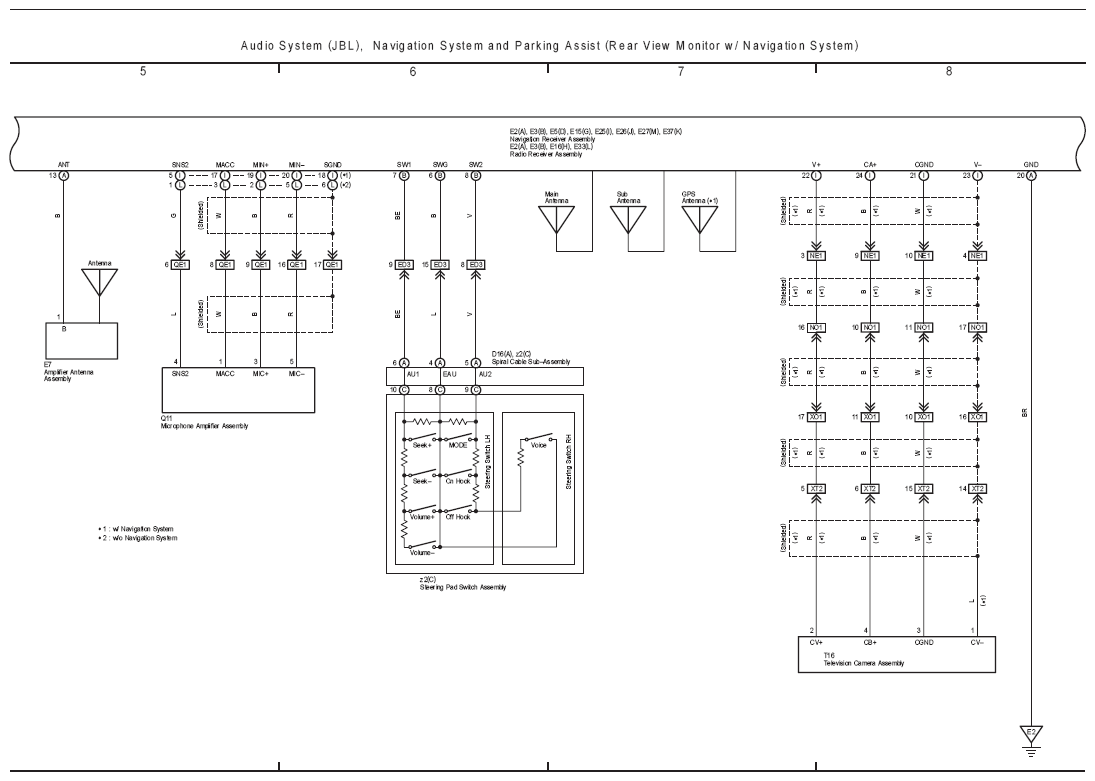

Fig 2: Audio System (JBL), Navigation System And Parking Assist (Rear View Monitor w/ N Avigation System) Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

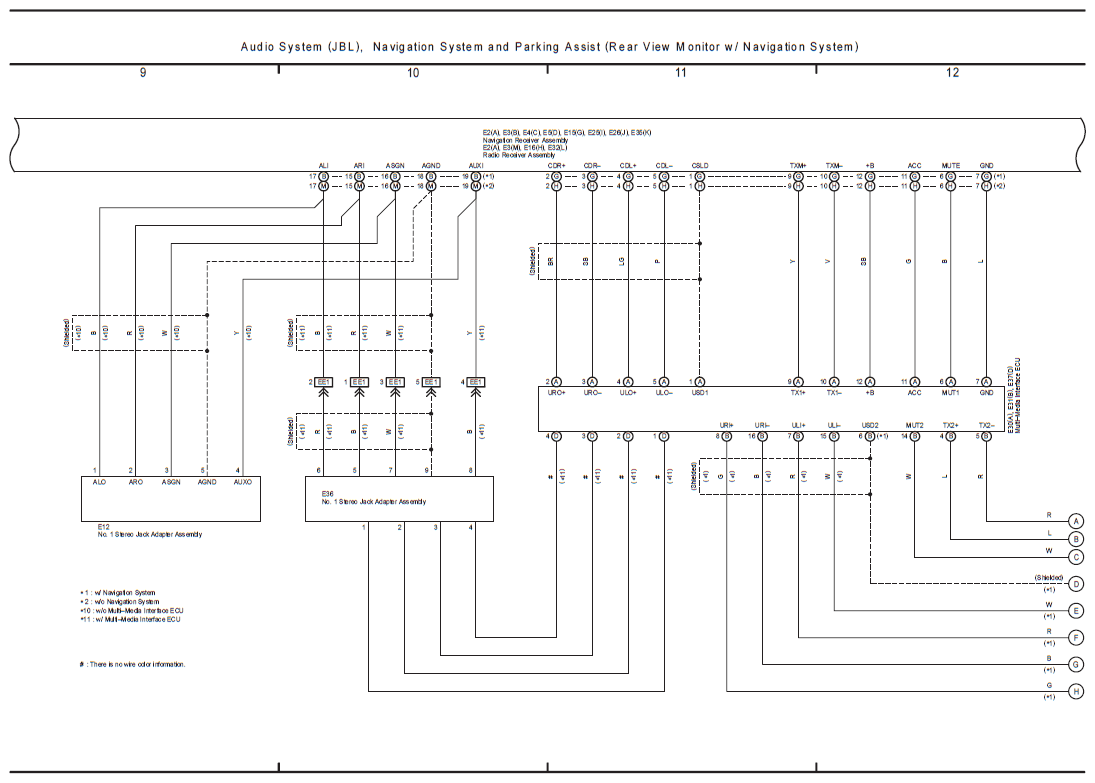

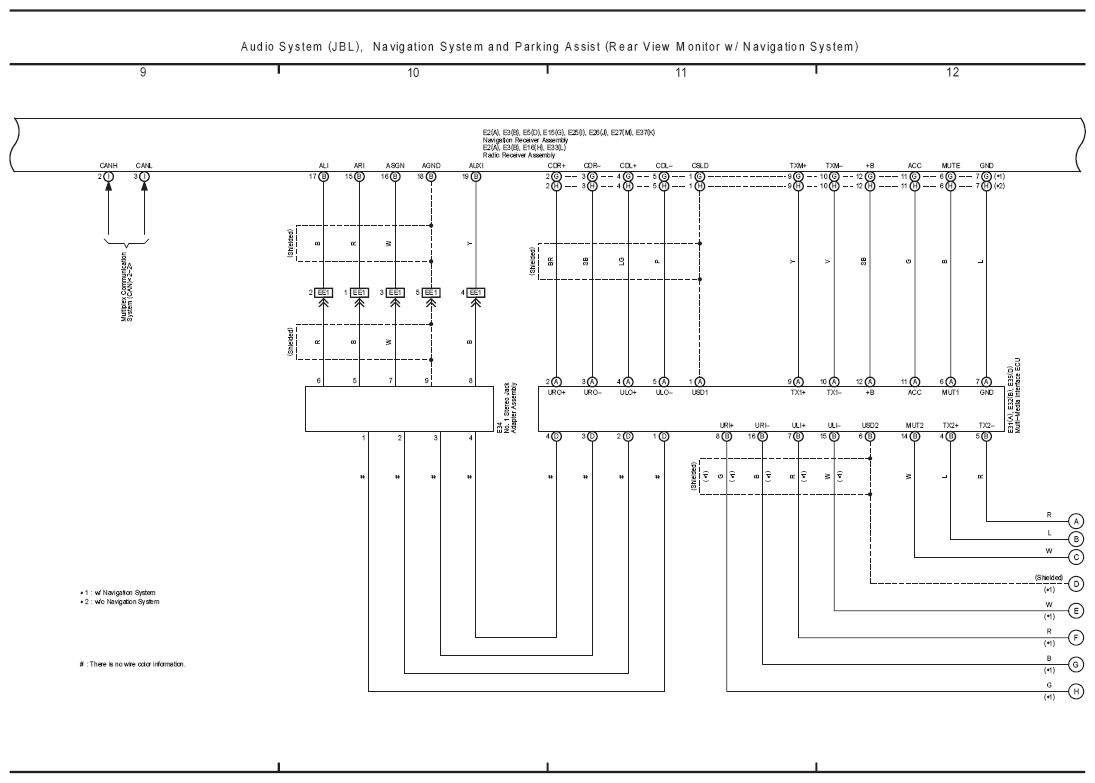

Fig 3: Audio System (JBL), Navigation System And Parking Assist (Rear View Monitor w/ N Avigation System) Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

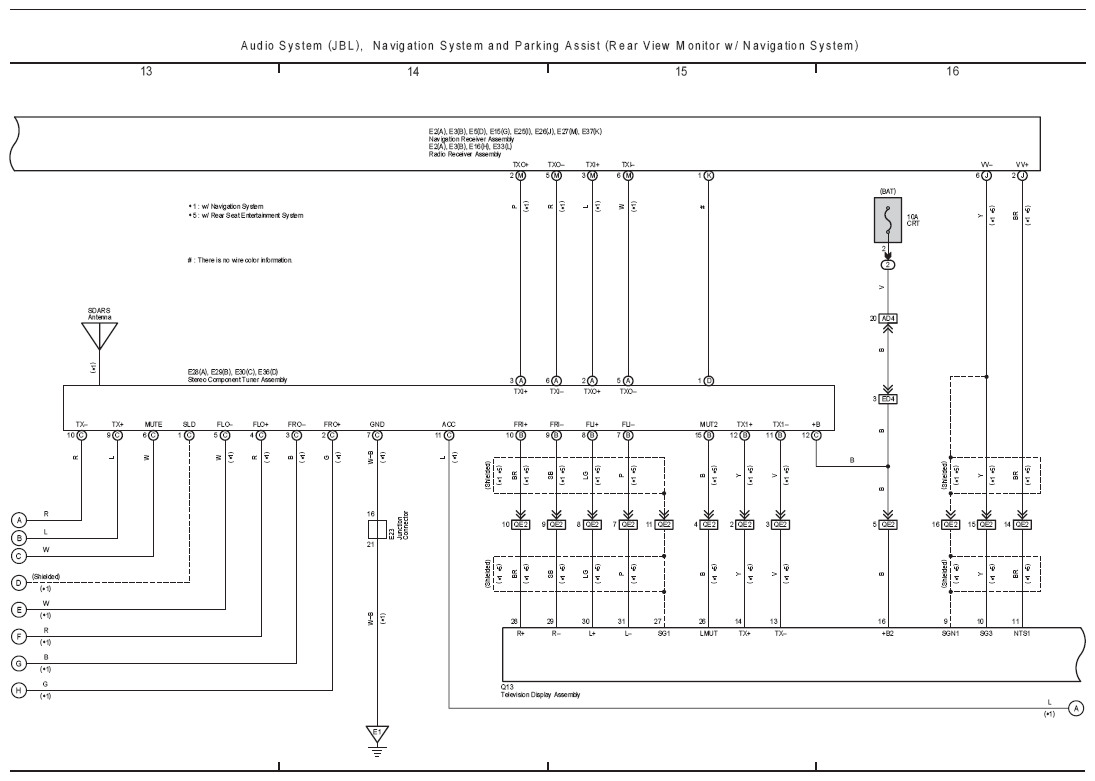

Fig 4: Audio System (JBL), Navigation System And Parking Assist (Rear View Monitor w/ N Avigation System) Electrical Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

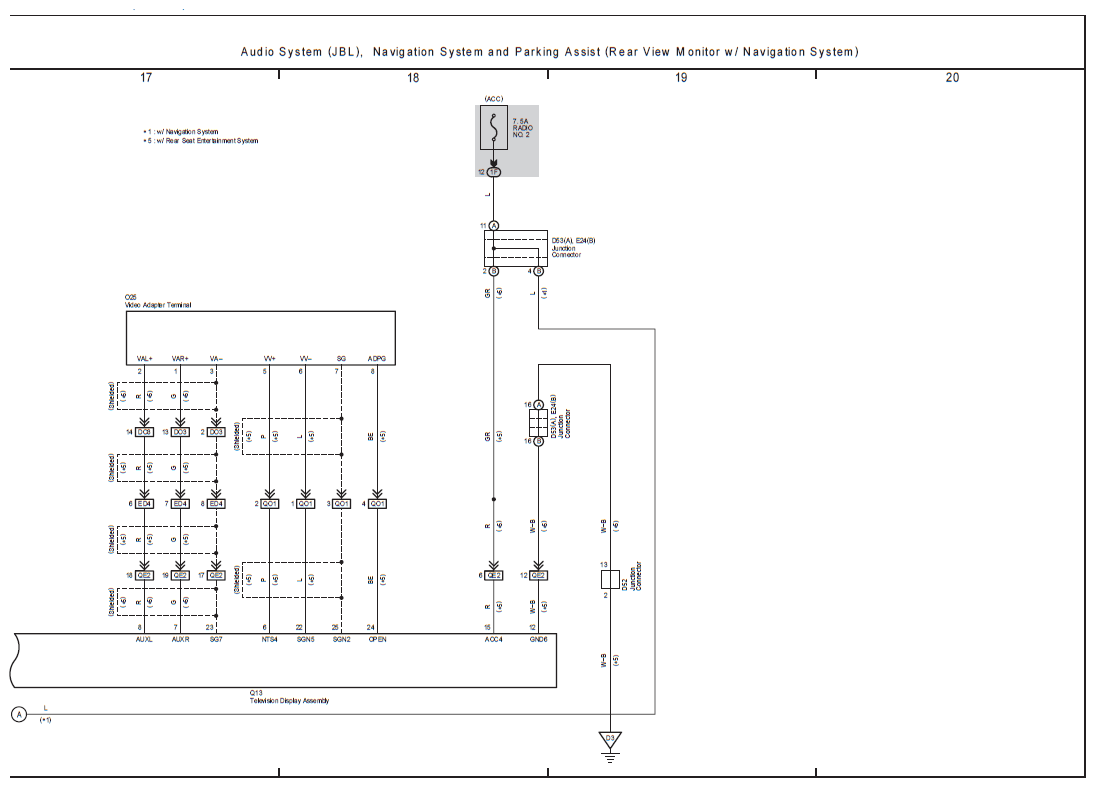

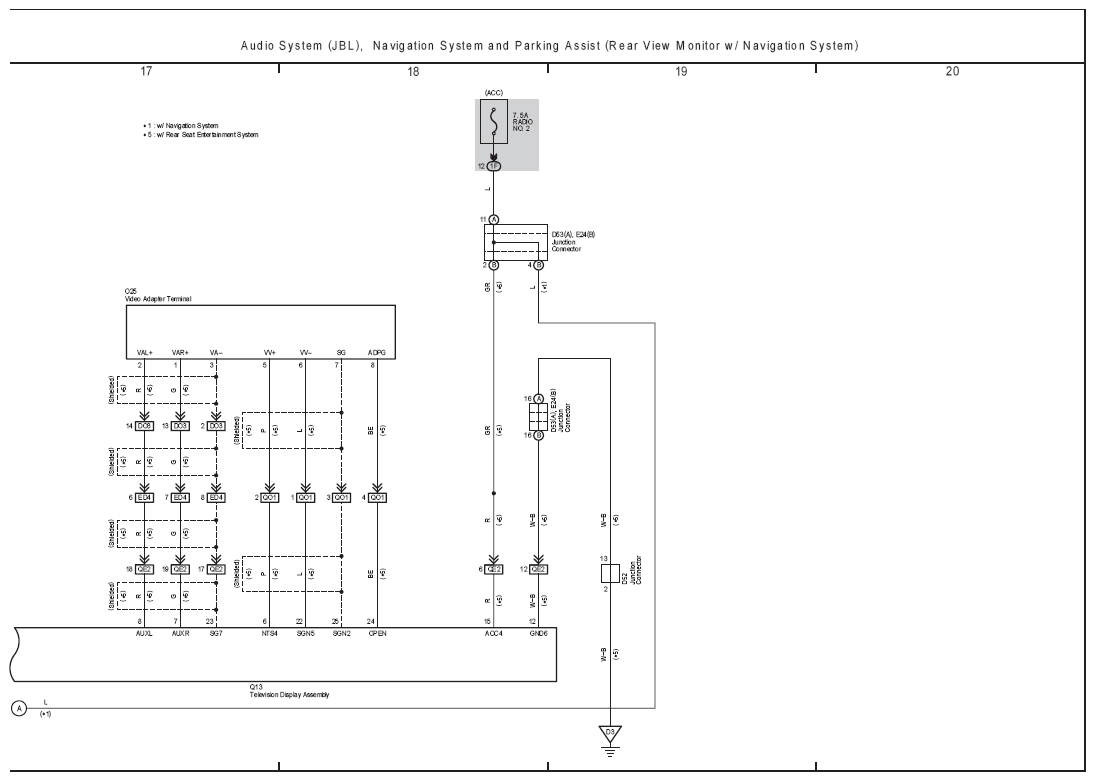

Fig 5: Audio System (JBL), Navigation System And Parking Assist (Rear View Monitor w/ N Avigation System) Electrical Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
