ABS: Downhill Assist Control: Hill-Start Assist Control: TRAC: VSC

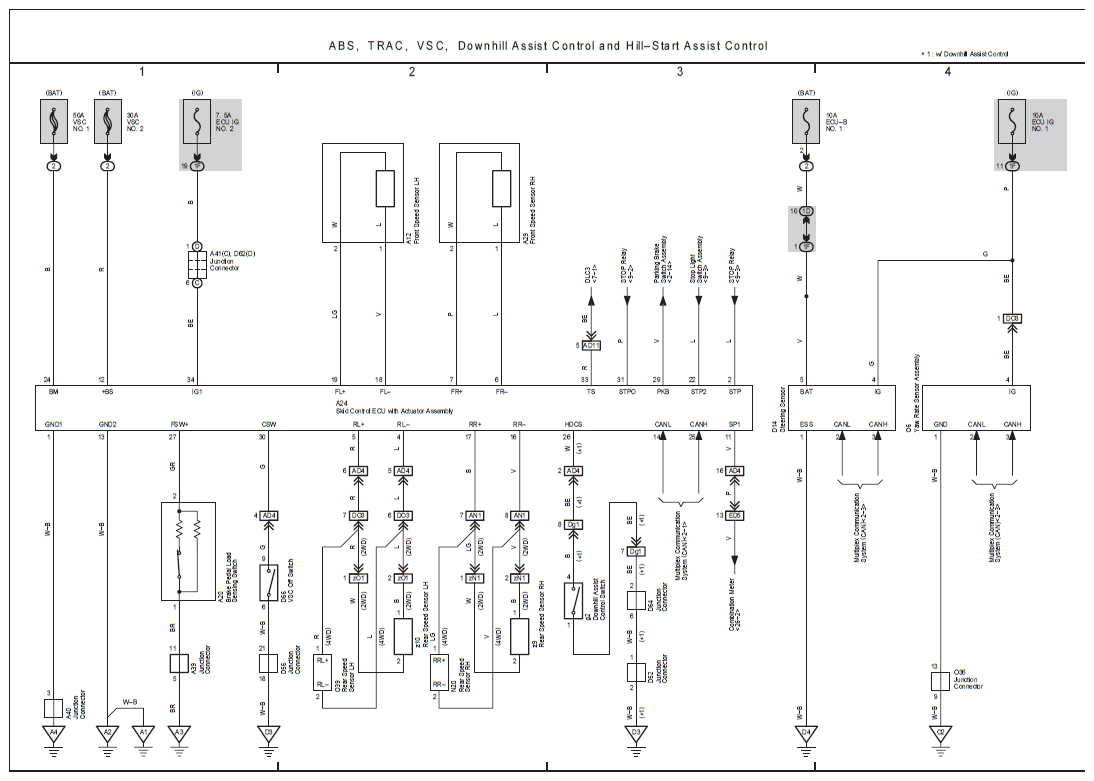

Fig 1: ABS, TRAC, VSC, Downhill Assist Control And Hill-Start Assist Control Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

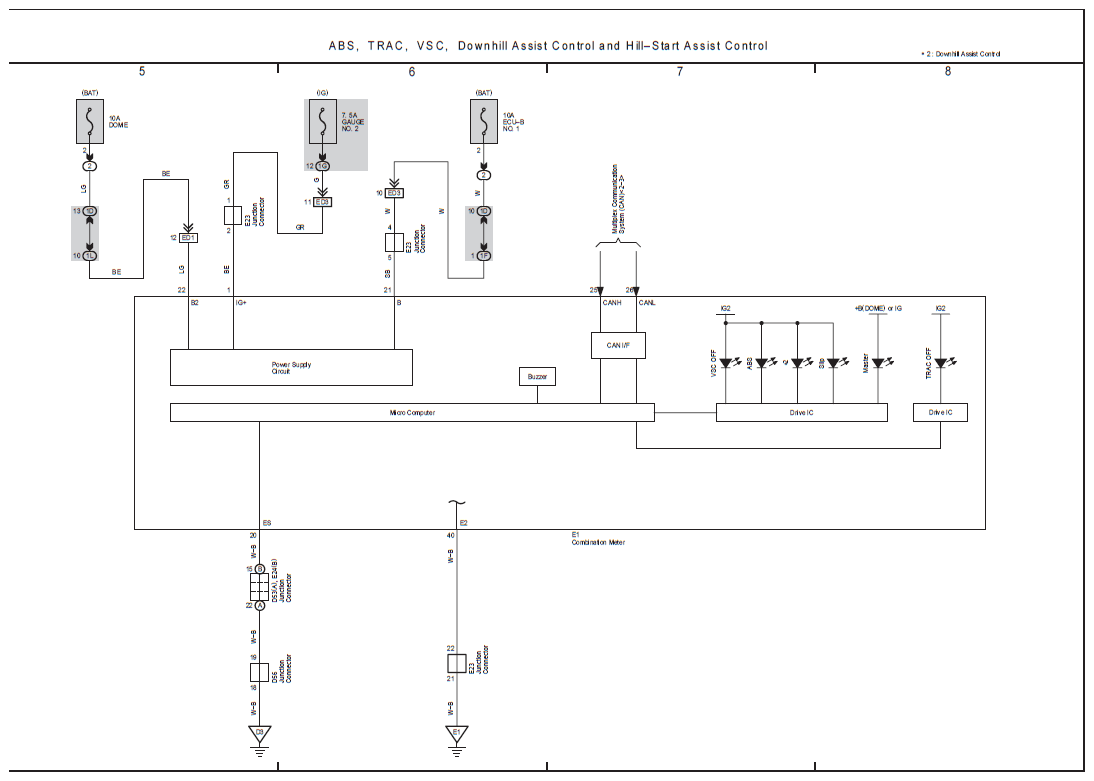

Fig 2: ABS, TRAC, VSC, Downhill Assist Control And Hill-Start Assist Control Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
