Position of Parts in Seat

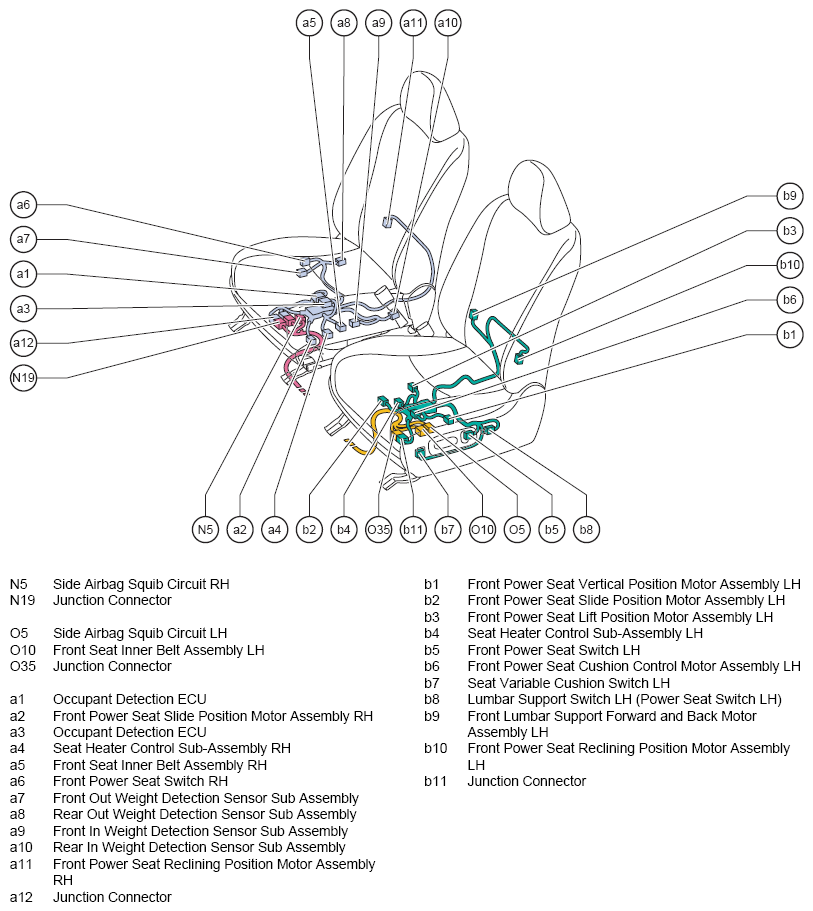

Fig 1: Seat Parts (w/Front Passenger's Power Seat)
G07114499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

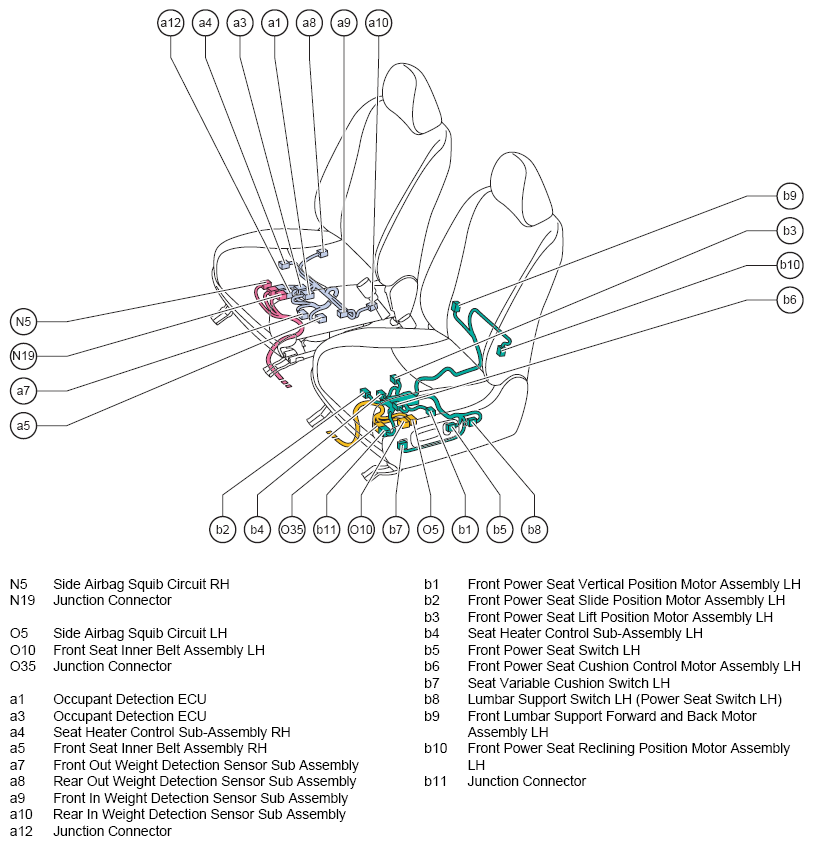

Fig 2: Seat Parts (w/o Front Passenger's Power Seat)
G07114500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
