Position of Parts in Engine Compartment: [1AR-FE]

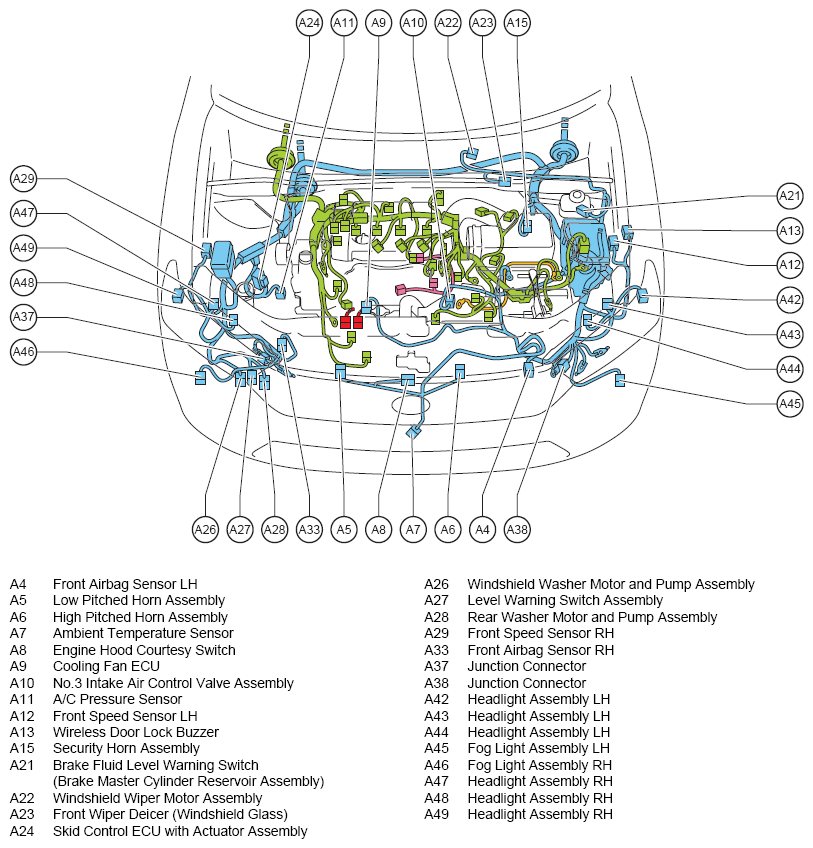

Fig 1: Engine Compartment Parts (1AR-FE; 1 Of 2)
G07114487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

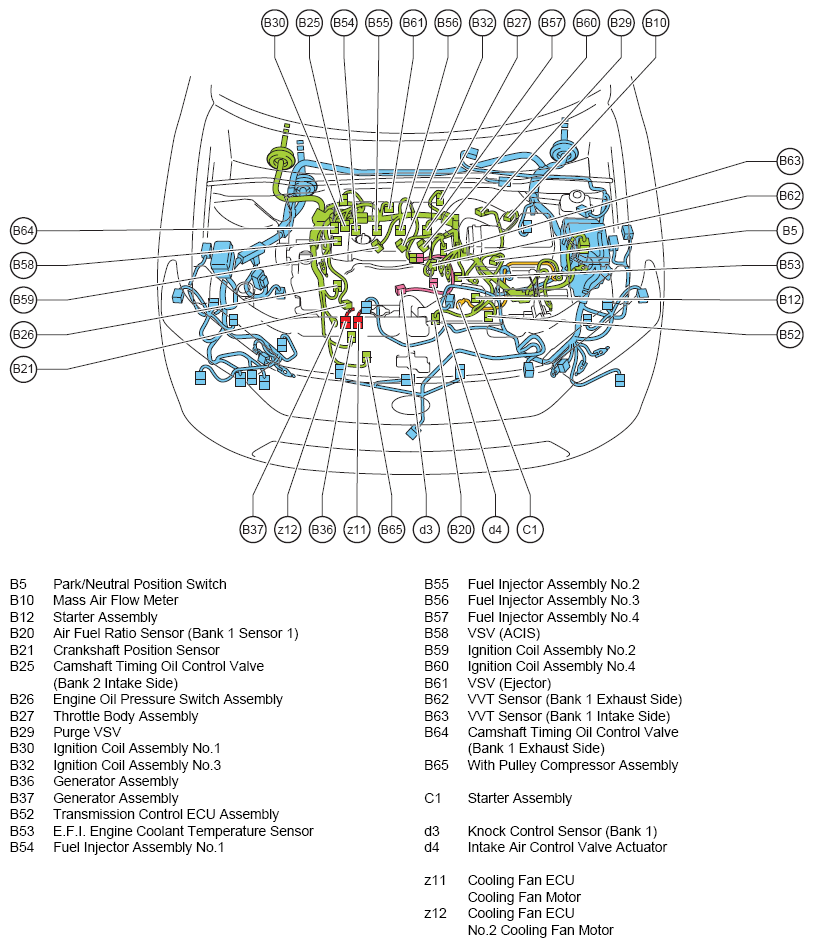

Fig 2: Engine Compartment Parts (1AR-FE; 2 Of 2)
G07114488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
