: Location of Connector Joining Wire Harness and Wire Harness: Overview

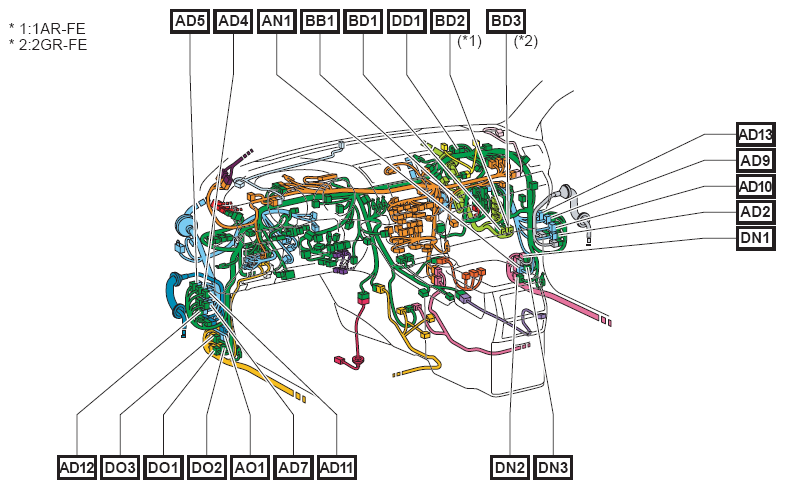

Fig 1: Locating Wiring Harnesses
G07114503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

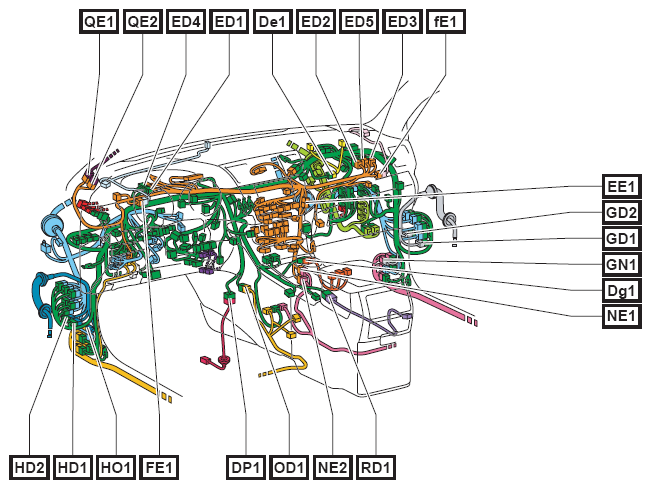

Fig 1: Locating Wiring Harnesses
G07114505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

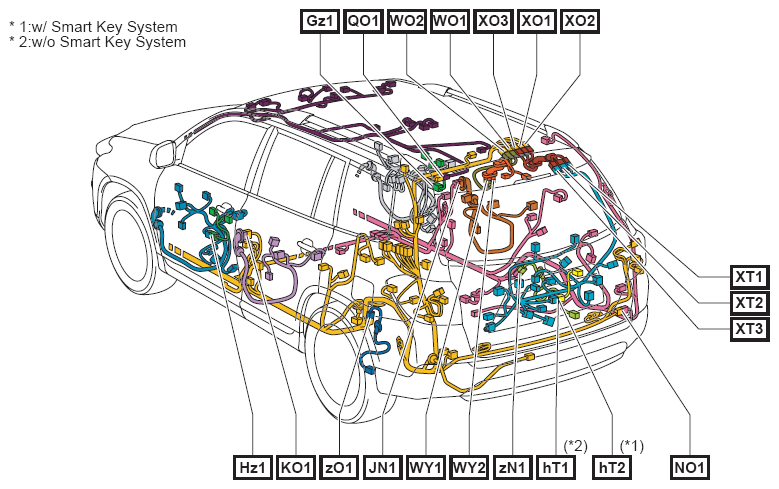

Fig 1: Locating Wiring Harnesses
G07114506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
