Steering Pad Switch: Components: Illustration

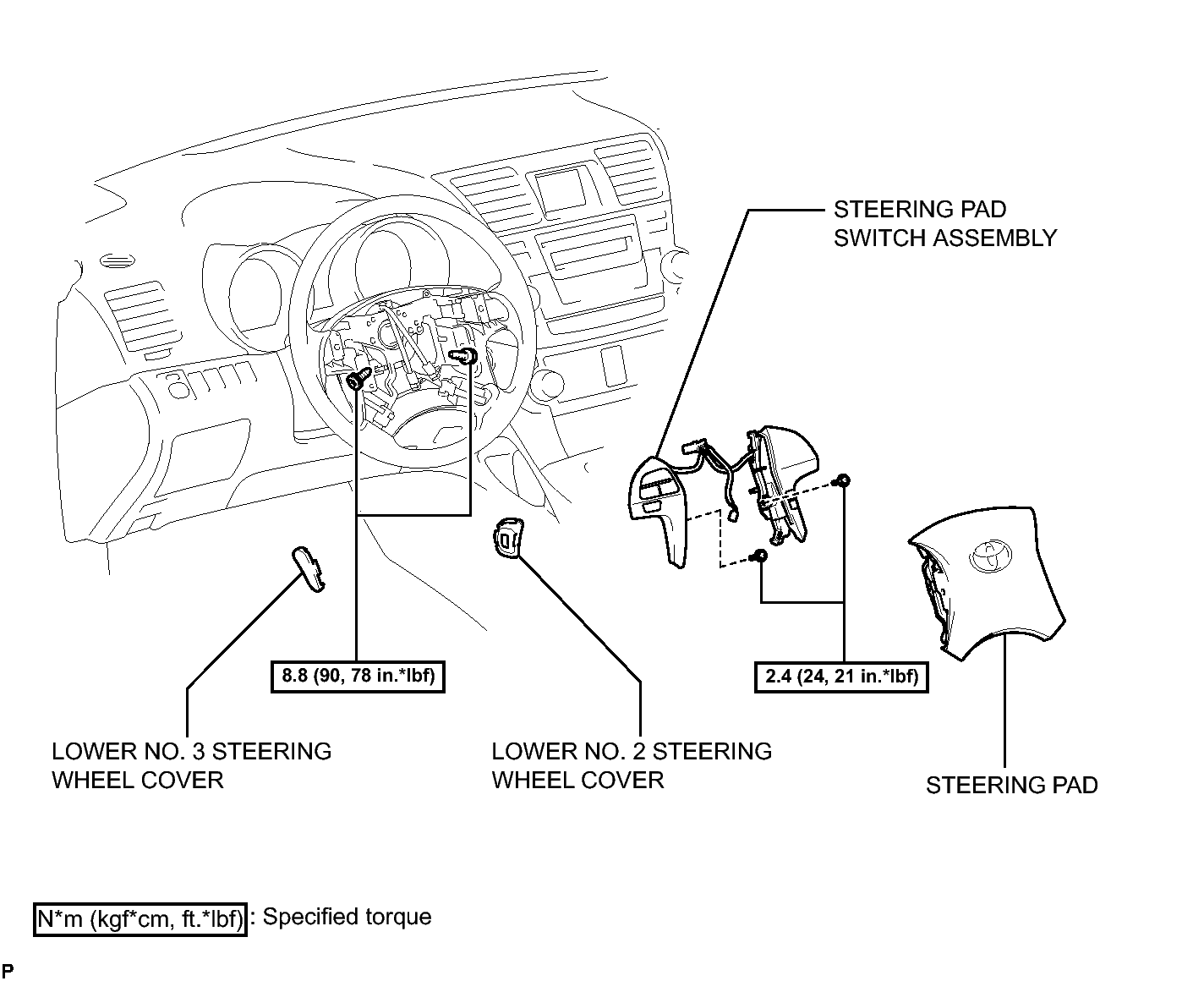

Fig 1: Identifying Steering Pad Switch Replacement Components With Torque Specifications

GTY207995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
