Parts Location: Illustration

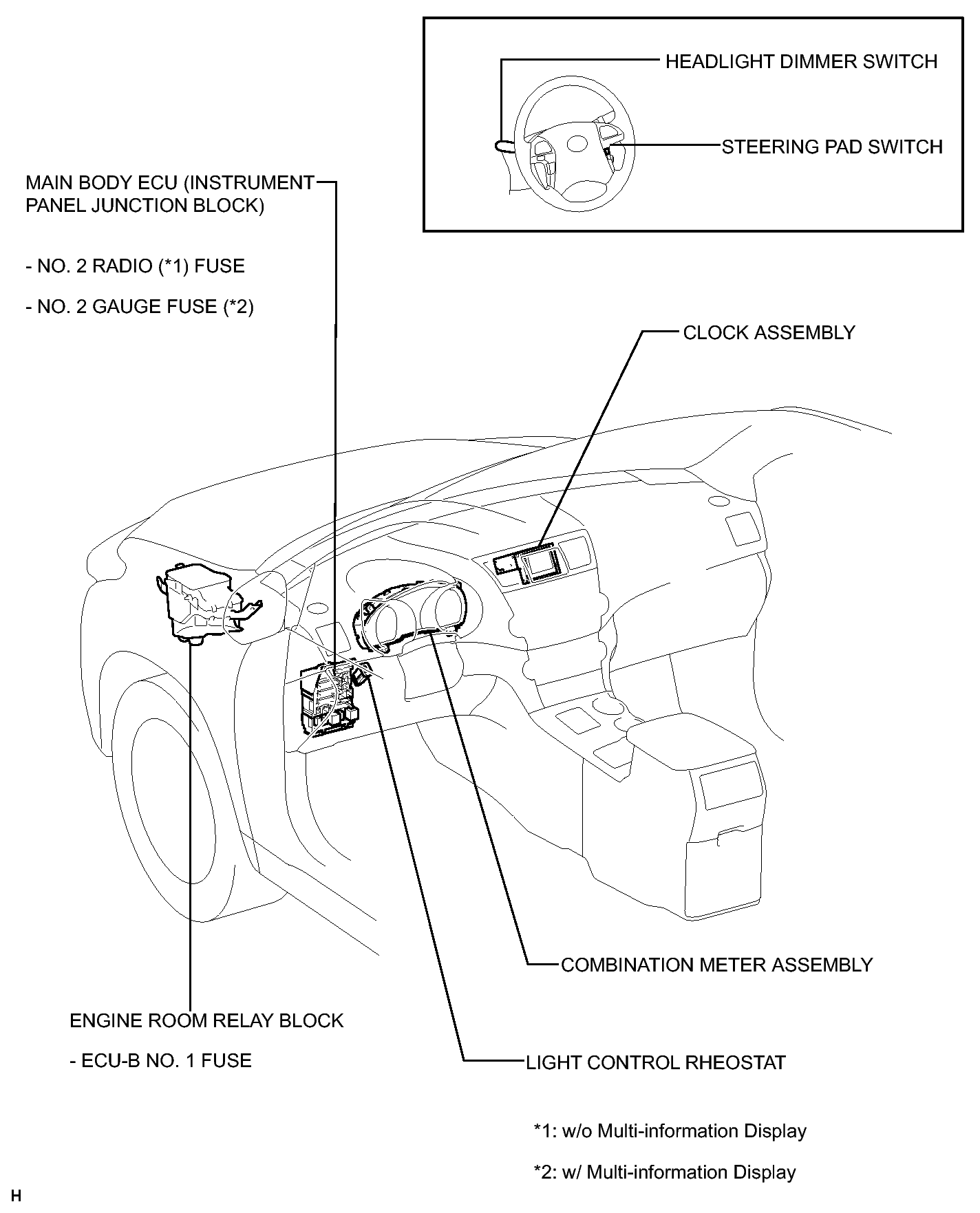

Fig 1: Identifying Meter/Gauge System Components Location (1 Of 3)
GTY300060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

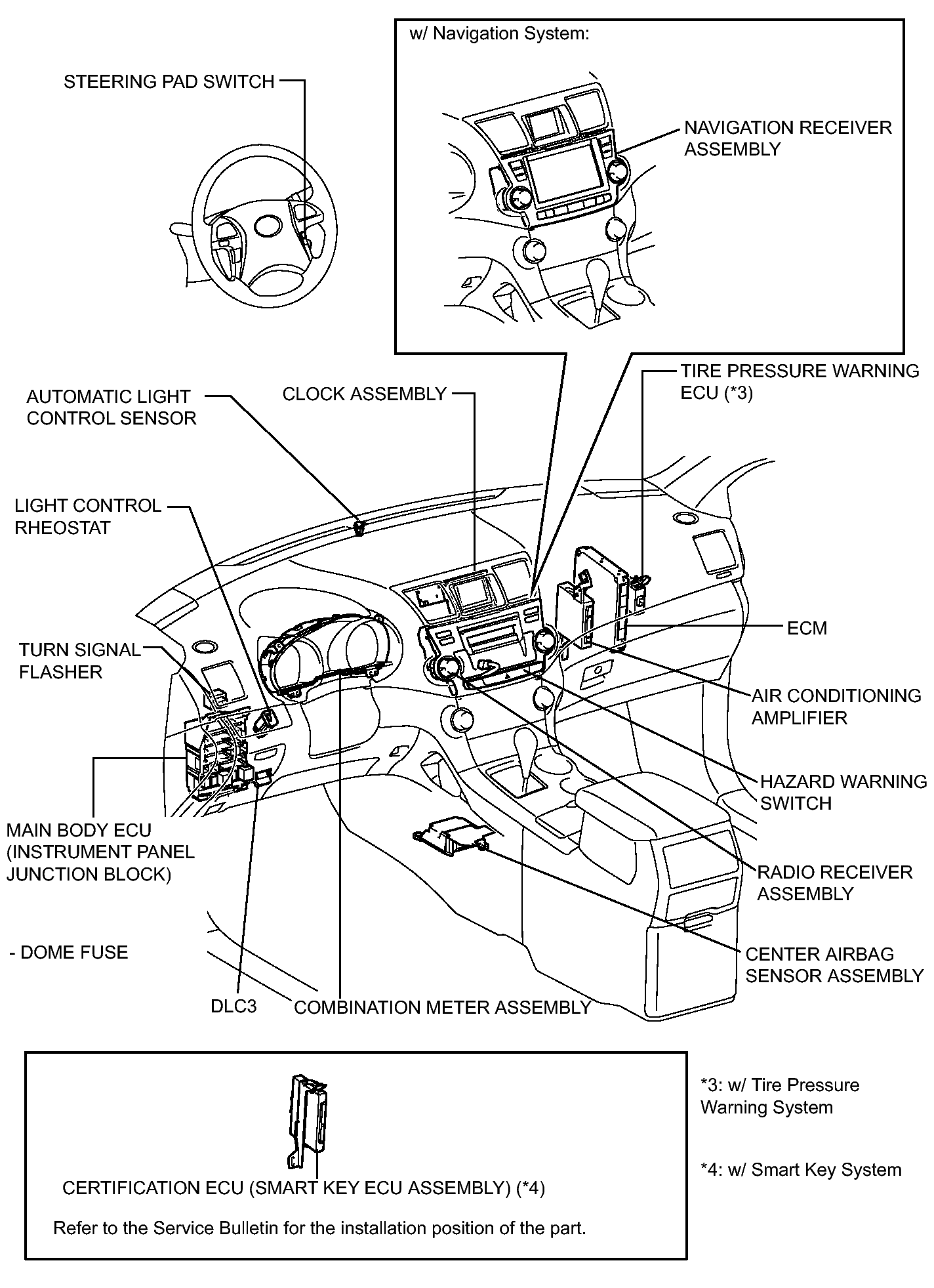

Fig 1: Identifying Meter/Gauge System Components Location (2 Of 3)
GTY207779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

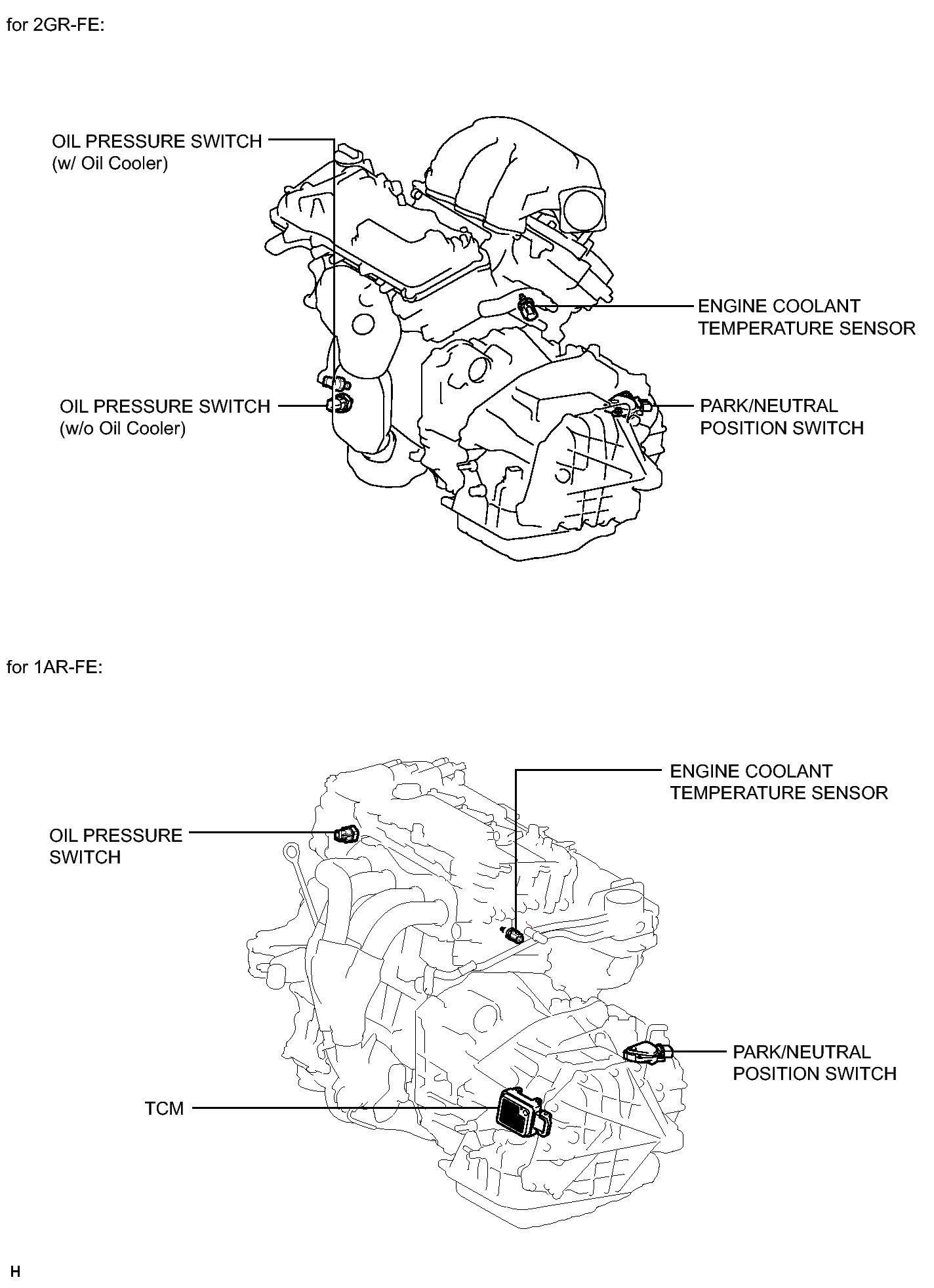

Fig 1: Identifying Meter/Gauge System Components Location (3 Of 3)
GTY208854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
