Power Source Circuit: Procedure

1. Disconnect the E20 (*1) or E11 (*2) connector.

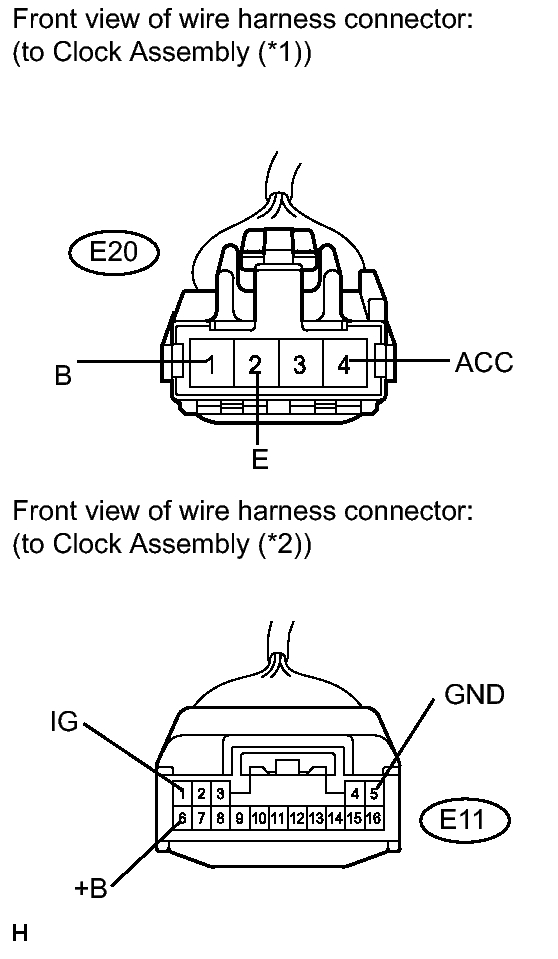

   Fig 1: Identifying E20 And E11 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   E20-1 (B) (*1) - Body ground	Always	11 to 14 V
   E11-6 (+B) (*2) - Body ground	Always	11 to 14 V
   E20-4 (ACC) (*1) - Body ground	Ignition switch on (ACC)	11 to 14 V
   E11-1 (IG) (*2) - Body ground	Ignition switch on (IG)	11 to 14 V

   *1: w/o Multi-information Display

   *2: w/ Multi-information Display

3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   E20-2 (E) (*1) - Body ground	Always	Below 1 Ω
   E11-5 (GND) (*2) - Body ground	Always	Below 1 Ω

   *1: w/o Multi-information Display

   *2: w/ Multi-information Display

   Result

   Result	Proceed to
   OK (w/o Multi-information Display)	A
   OK (w/ Multi-information Display)	B
   NG	C

B → See step   2

C → REPAIR OR REPLACE HARNESS OR CONNECTOR

A → See step   3
