Parts Location: Illustration

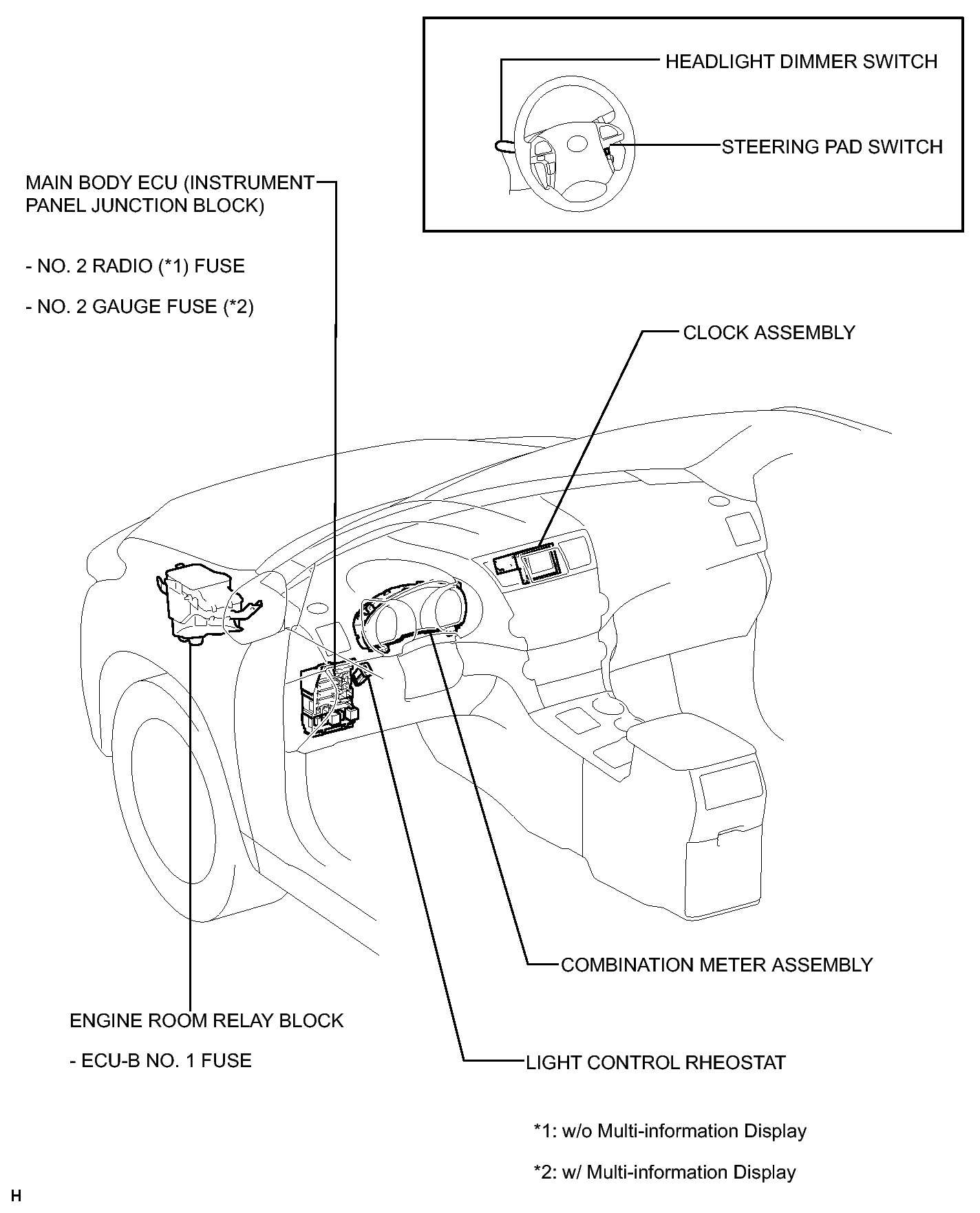

Fig 1: Identifying Clock System Component Location
GTY300059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
