Illumination Circuit: Wiring Diagram

  1. w/o Multi-information Display:
    Fig 1: Combination Meter Assembly - Wiring Diagram (w/o Multi-information Display)
    GTY208214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Multi-information Display:

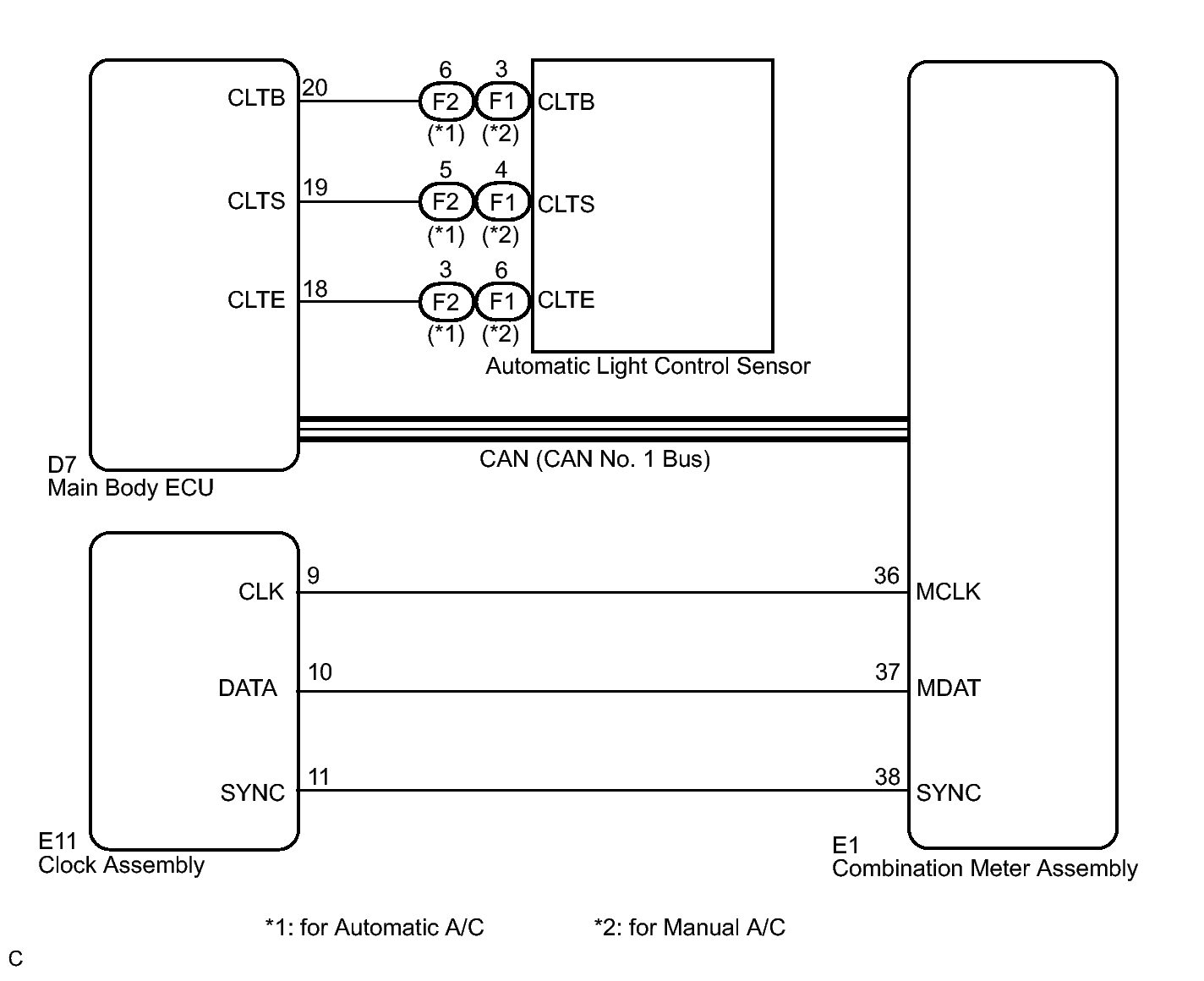

    Fig 2: Combination Meter Assembly-Wiring Diagram (W/ Multi-information Display)
    GTY298399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
