Garage Door Opener System: Inspection: Inspection

1. To inspect the garage door opener system, press each switch and check that the LED in the "HomeLink" logo illuminates as illustrated. If one or more of the switches do not cause the LED to illuminate, confirm that the fuse and the wiring to the garage door opener system unit is normal. If the fuse and wiring are normal, and the LED does not work, replace the garage door opener system unit located in the roof console box assembly.
   Fig 1: Identifying Garage Door Opener System Switches

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the KENT-MOORE "HomeLink" tester, and the KENT-MOORE handheld transmitter for this test. First erase the customer's transmitter codes, and then register the tester's handheld transmitter code to the garage door opener system.

1. Check if the tester's handheld transmitter code was successfully registered.
   Fig 2: Pressing And Holding Switch On Handheld Transmitter

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If the handheld transmitter's code cannot be registered, replace the garage door opener system unit.

2. Press the garage door opener switch that was used to copy the signal from the handheld transmitter. Check if the "HomeLink" tester's green LED illuminates.

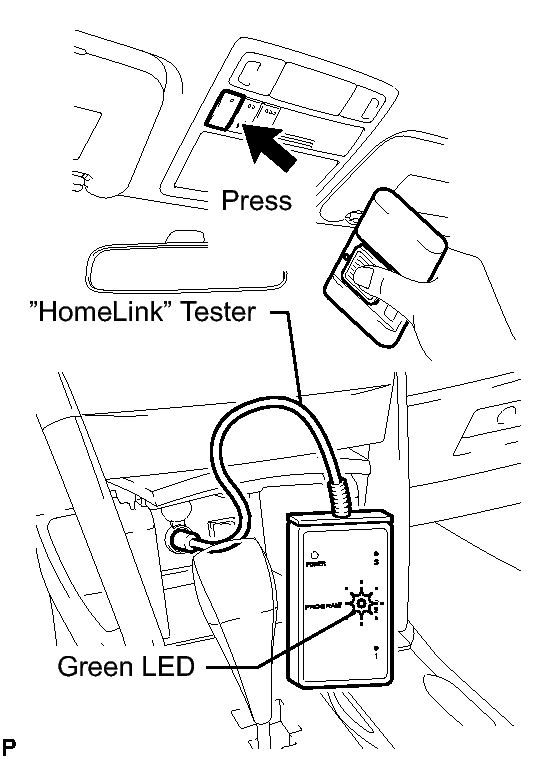

   Fig 3: Pressing Garage Door Opener Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If the green LED does not illuminate, replace the garage door opener system unit that is located in the roof console box assembly.

3. When the inspection is complete, re-register the customer's handheld transmitter codes.
