Rear Center Seat Inner Belt Assembly: Components: Illustration

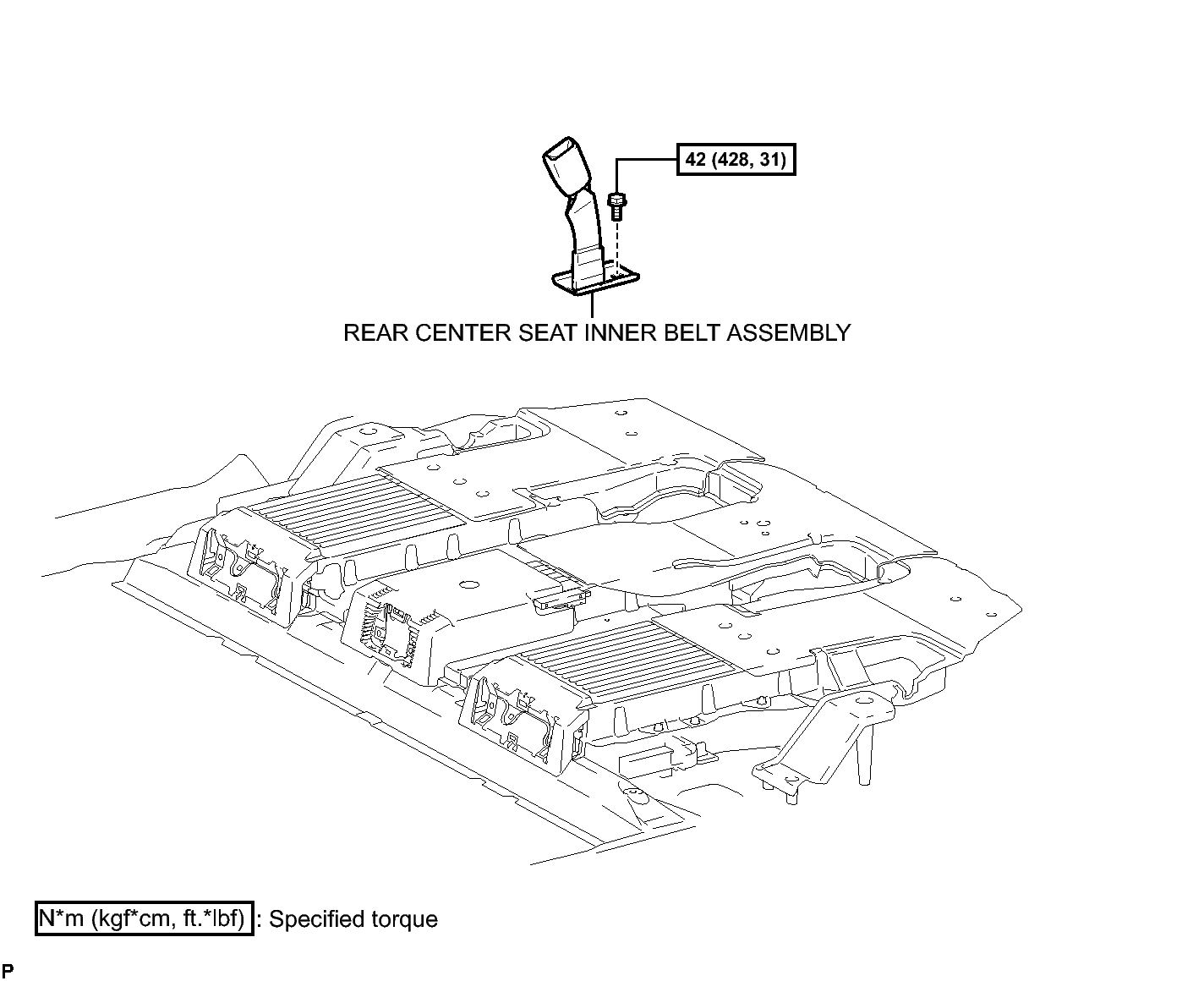

Fig 1: Identifying Rear Center Seat Inner Belt Assembly Replacement Components With Torque Specifications (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

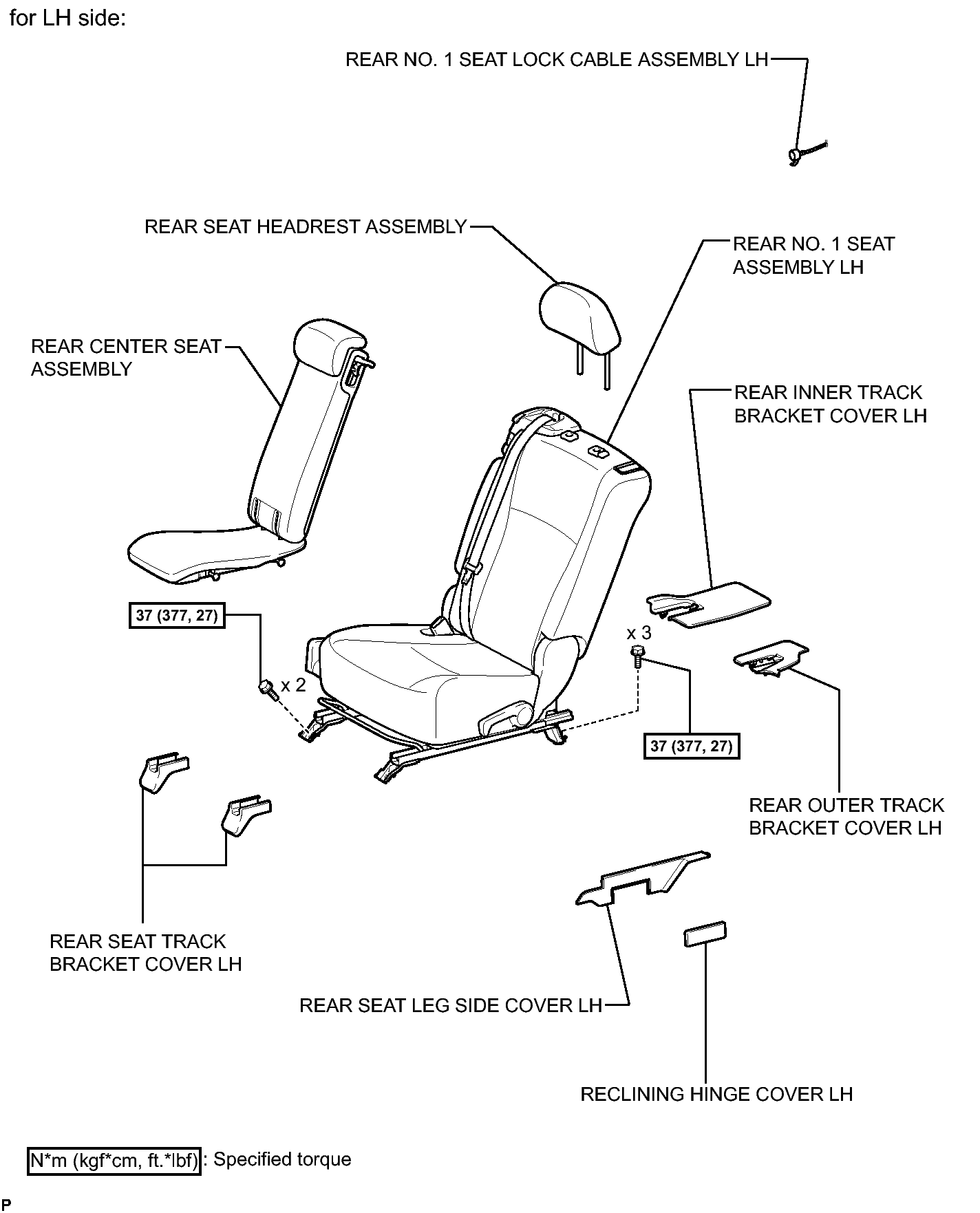

Fig 1: Identifying Rear Center Seat Inner Belt Assembly Replacement Components With Torque Specifications (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

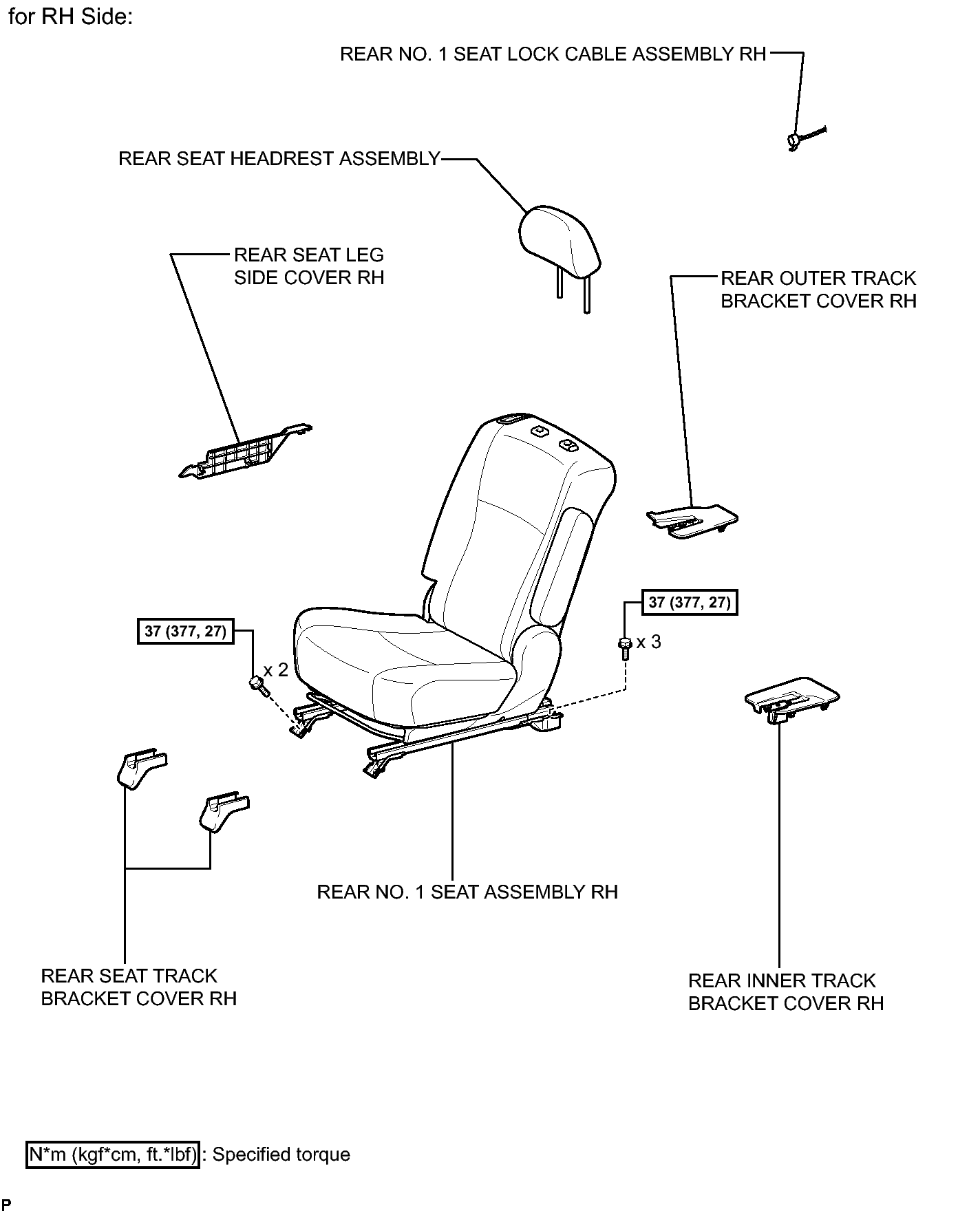

Fig 1: Identifying Rear Center Seat Inner Belt Assembly Replacement Components With Torque Specification (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
