DTC P0A84-123: Hybrid Battery Pack Cooling Fan 1 Control Circuit Low: Wiring Diagram

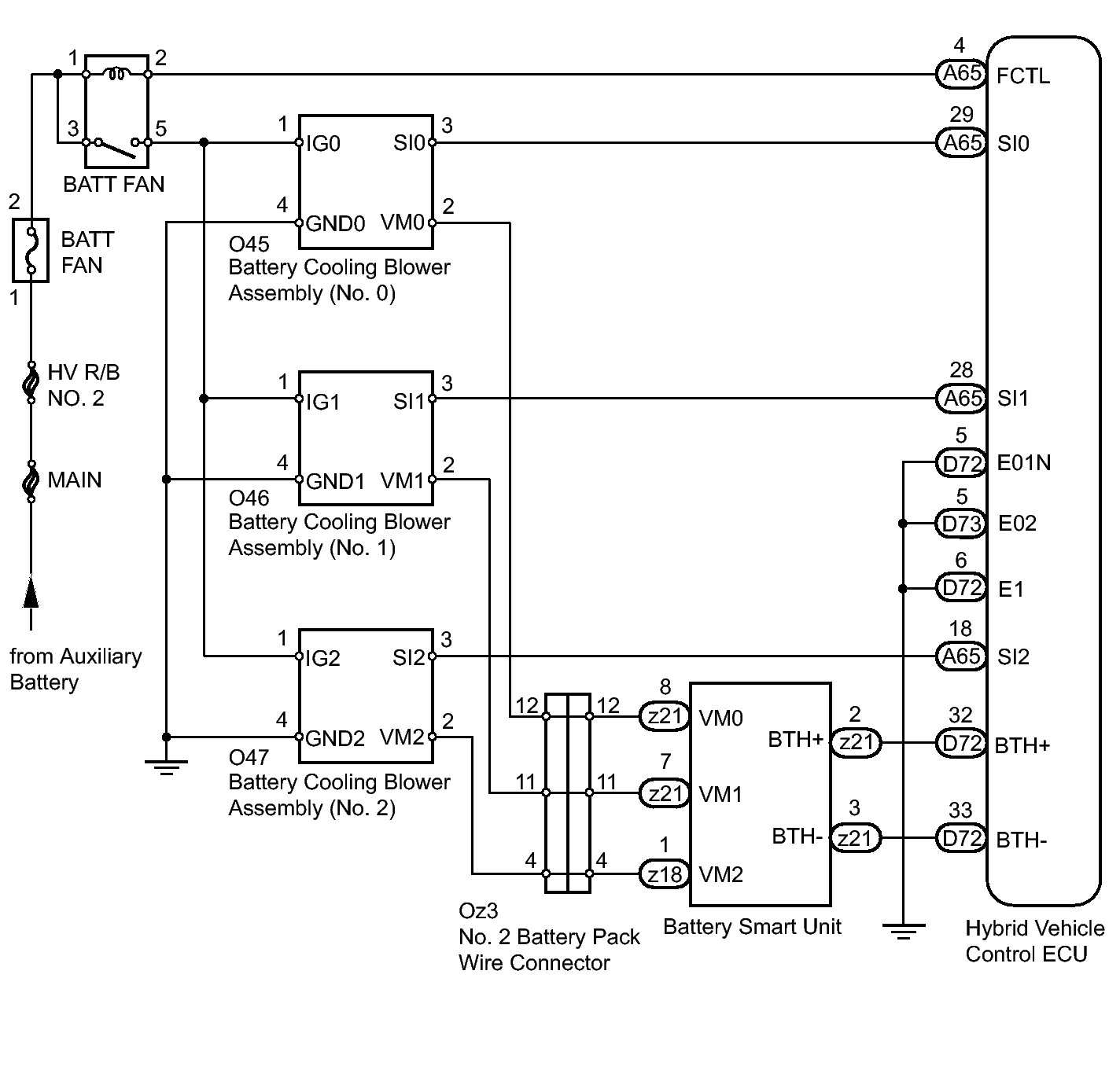

Fig 1: Identifying Battery Cooling Blower Assembly Wiring Diagram

GTY304277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
