Refrigerant Line: Components: Illustration

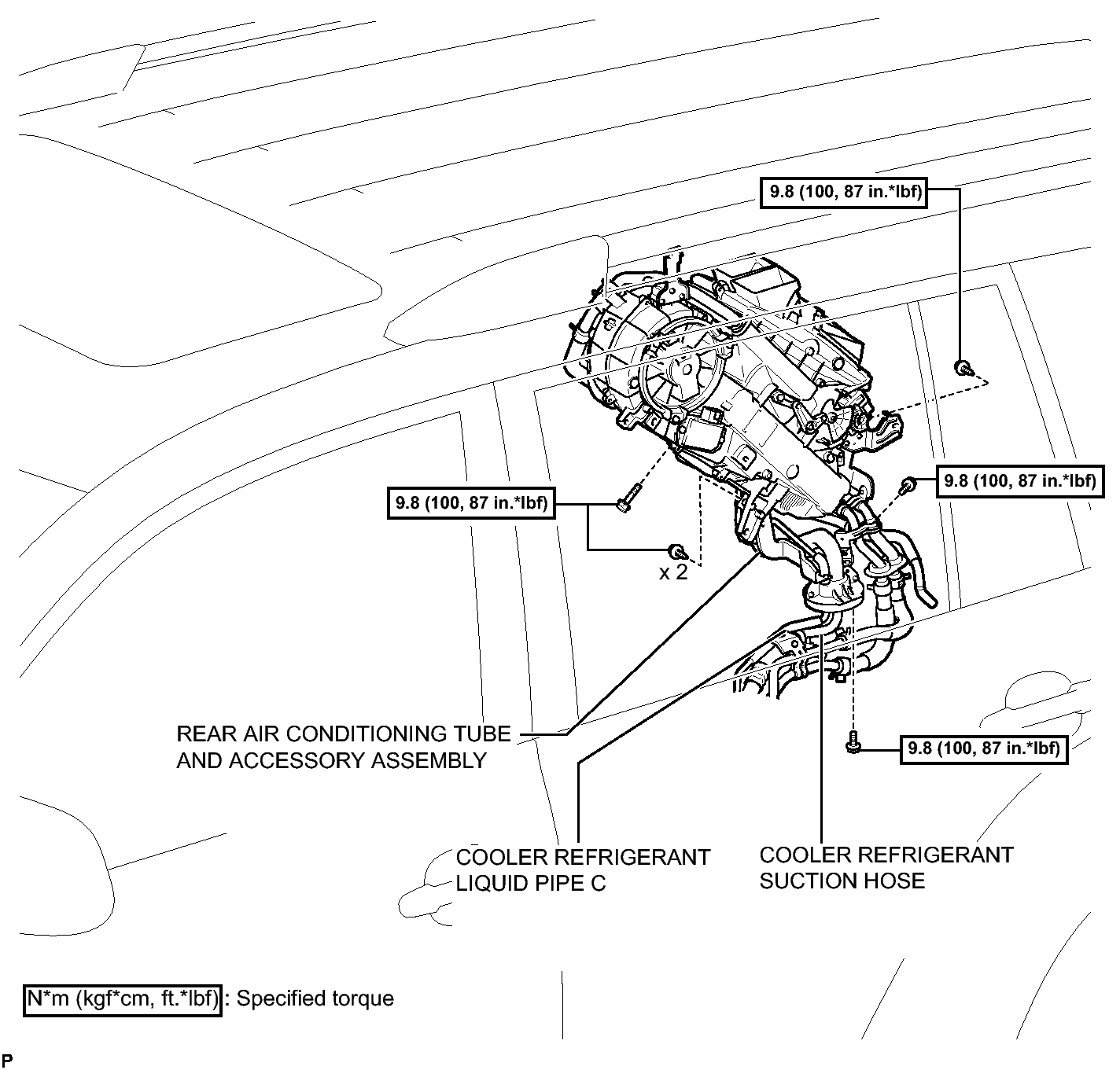

Fig 1: Identifying Refrigerant Line Replacement Components With Torque Specifications (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

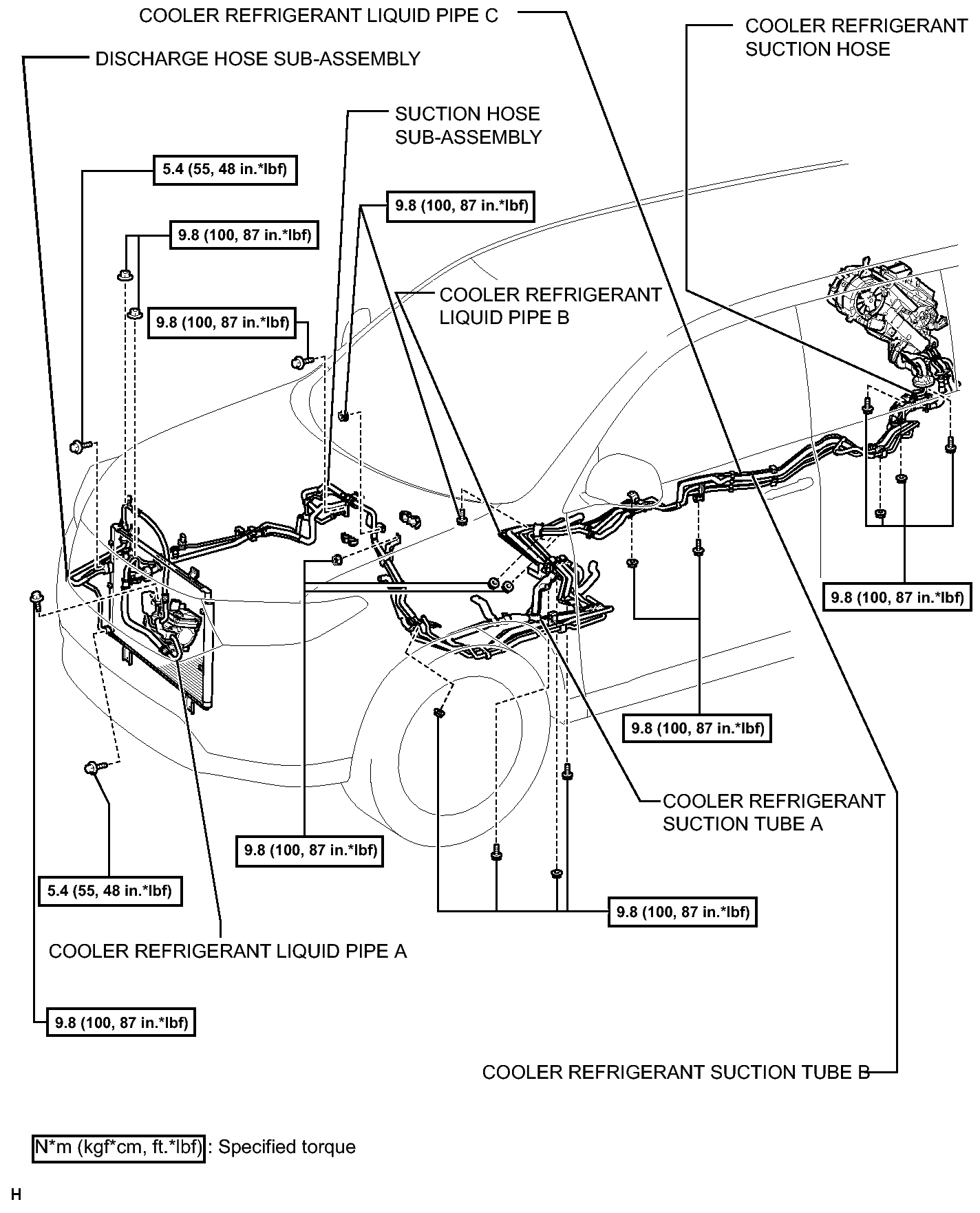

Fig 1: Identifying Refrigerant Line Replacement Components With Torque Specifications (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
