Rear Cooling Unit: Components: Illustration

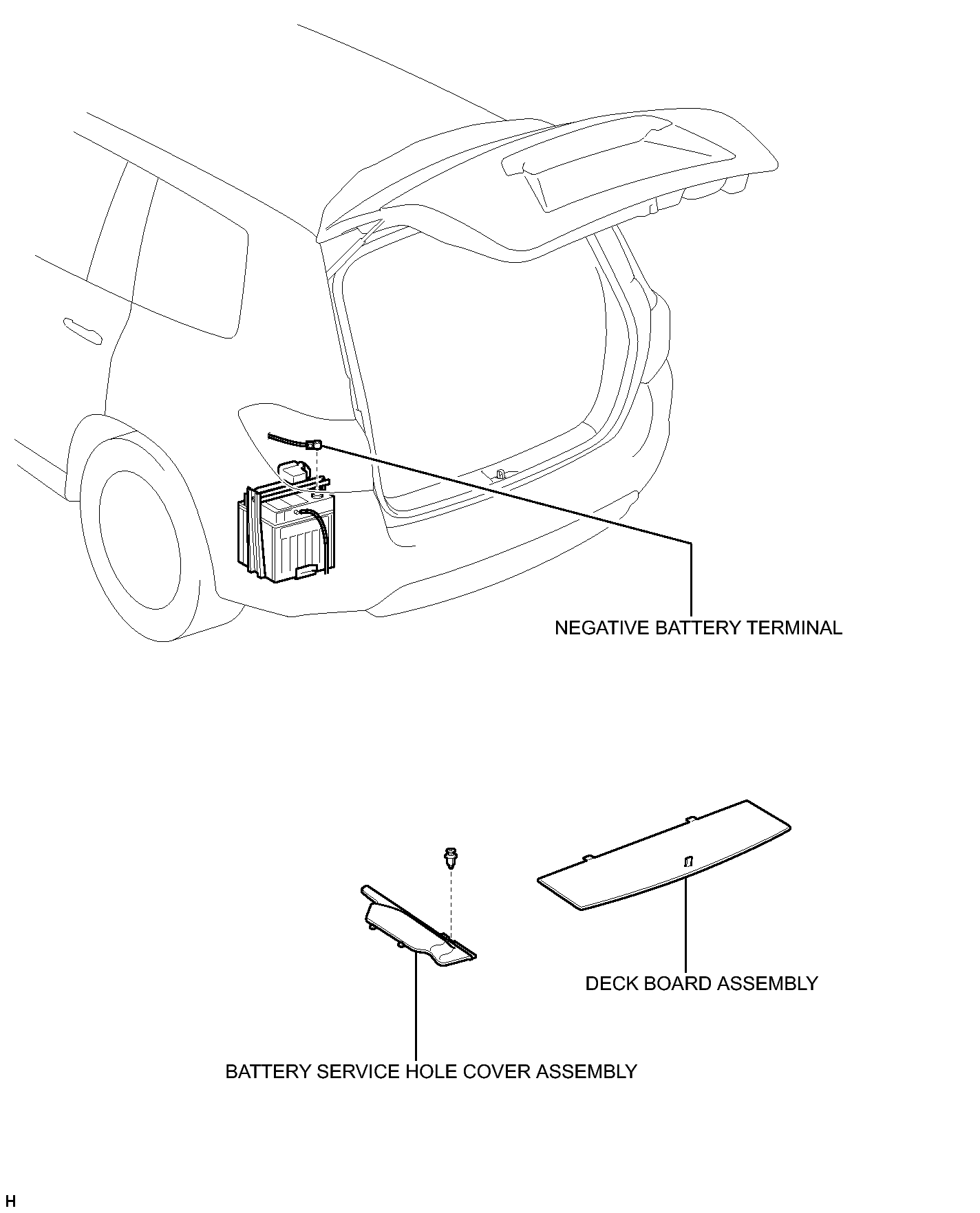

Fig 1: Identifying Rear Cooling Unit Replacement Components (1 of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

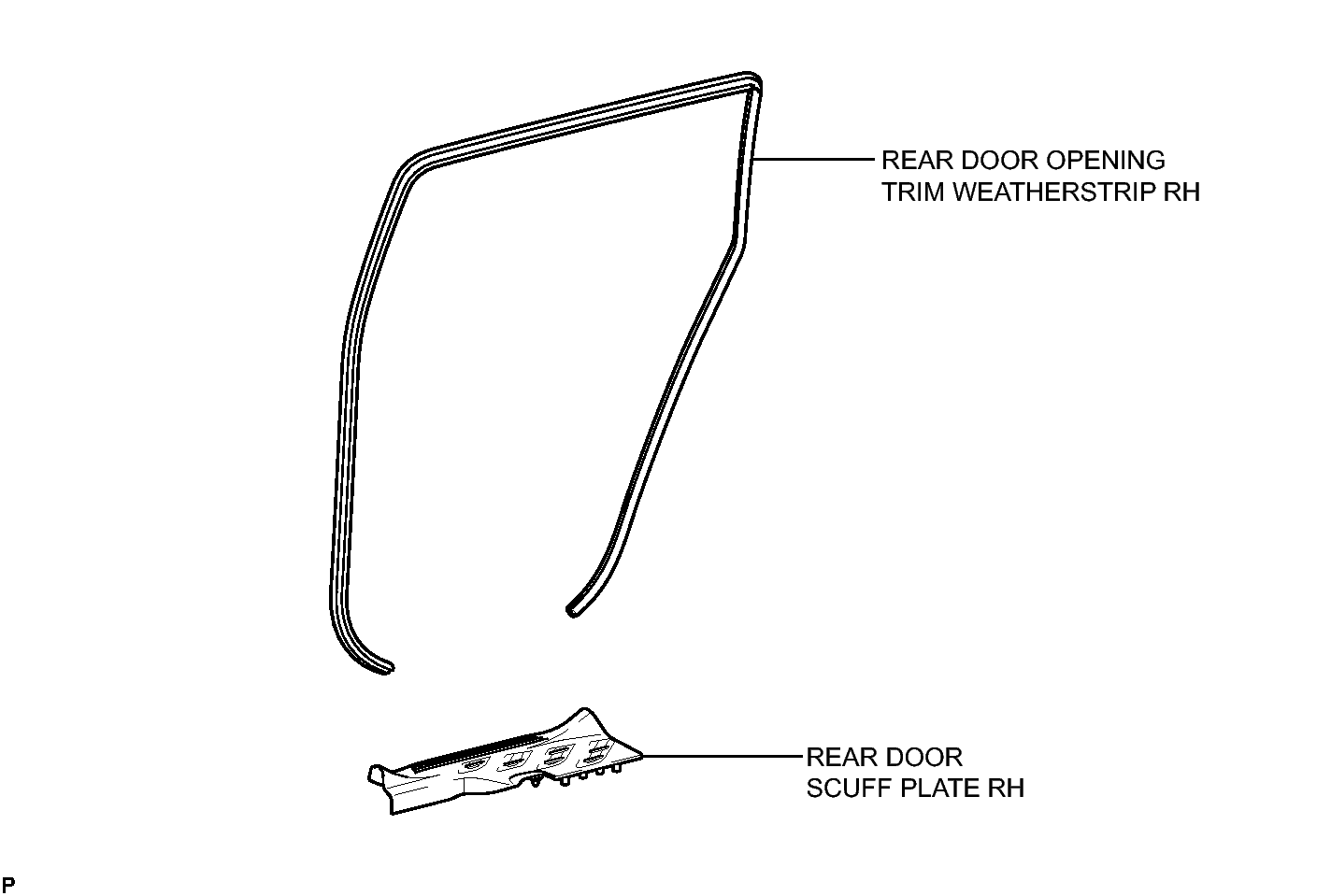

Fig 1: Identifying Rear Cooling Unit Replacement Components (2 of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

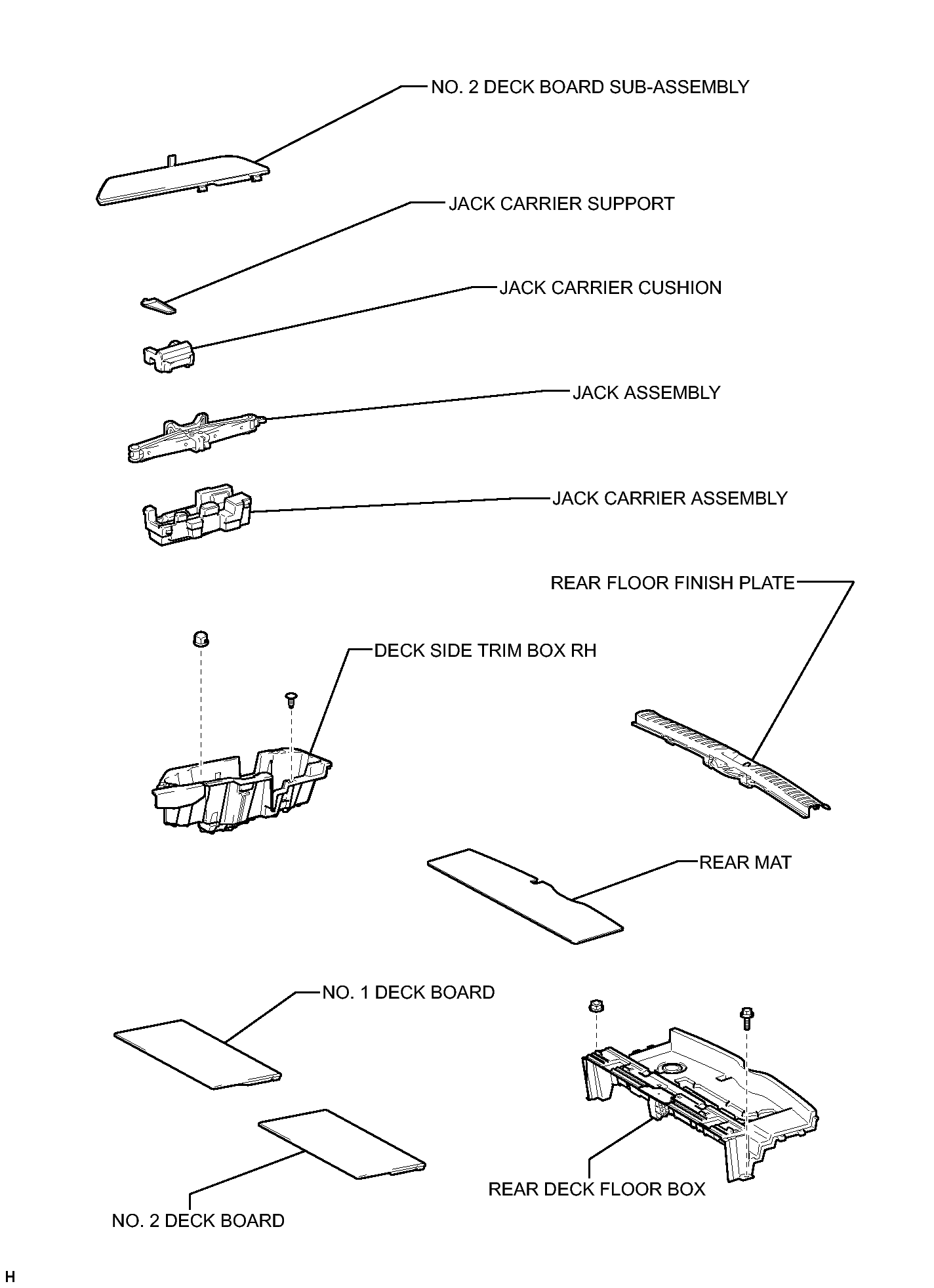

Fig 1: Identifying Rear Cooling Unit Replacement Components (3 of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

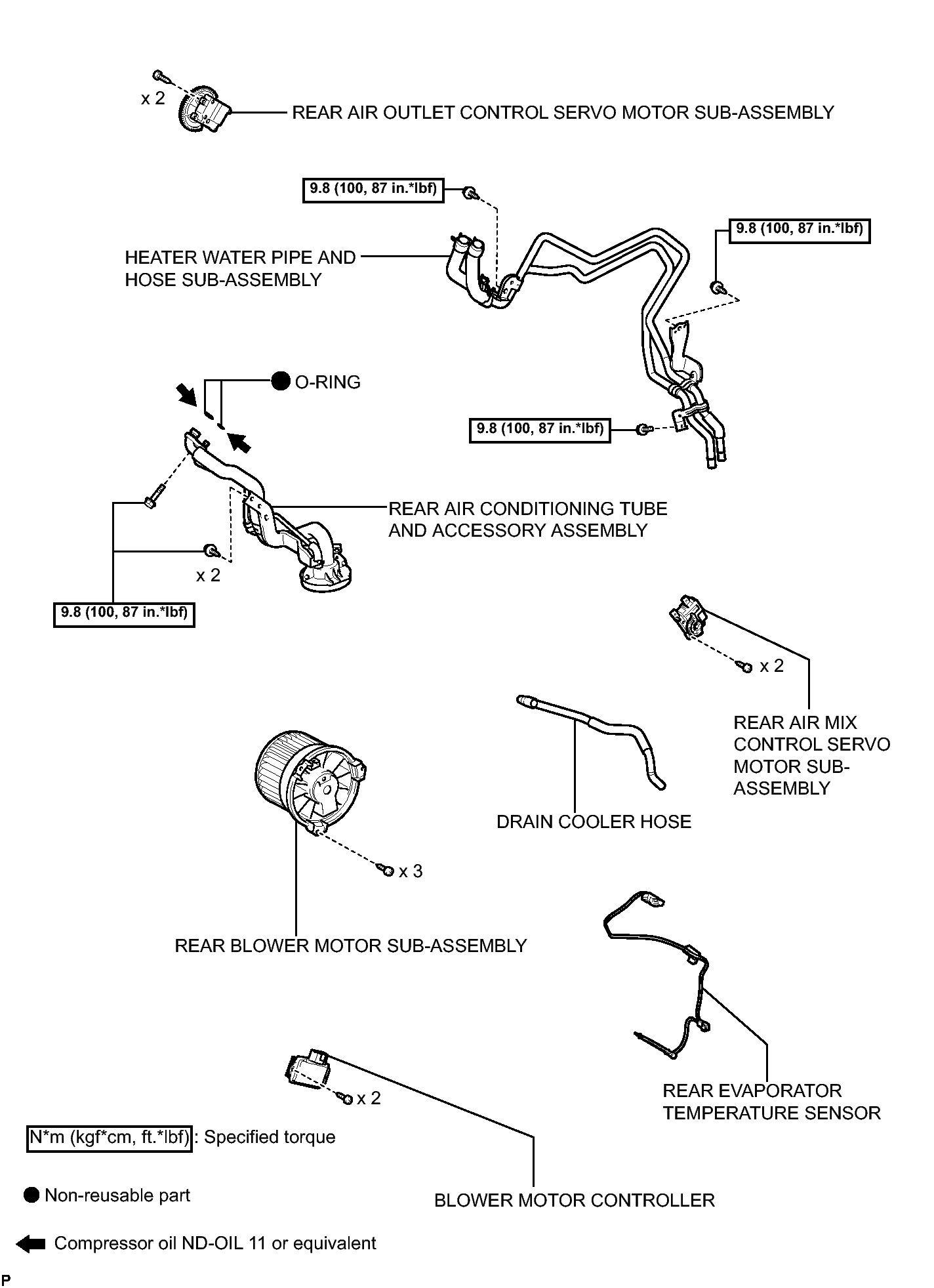

Fig 1: Identifying Rear Cooling Unit Replacement Components With Torque Specifications (4 of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

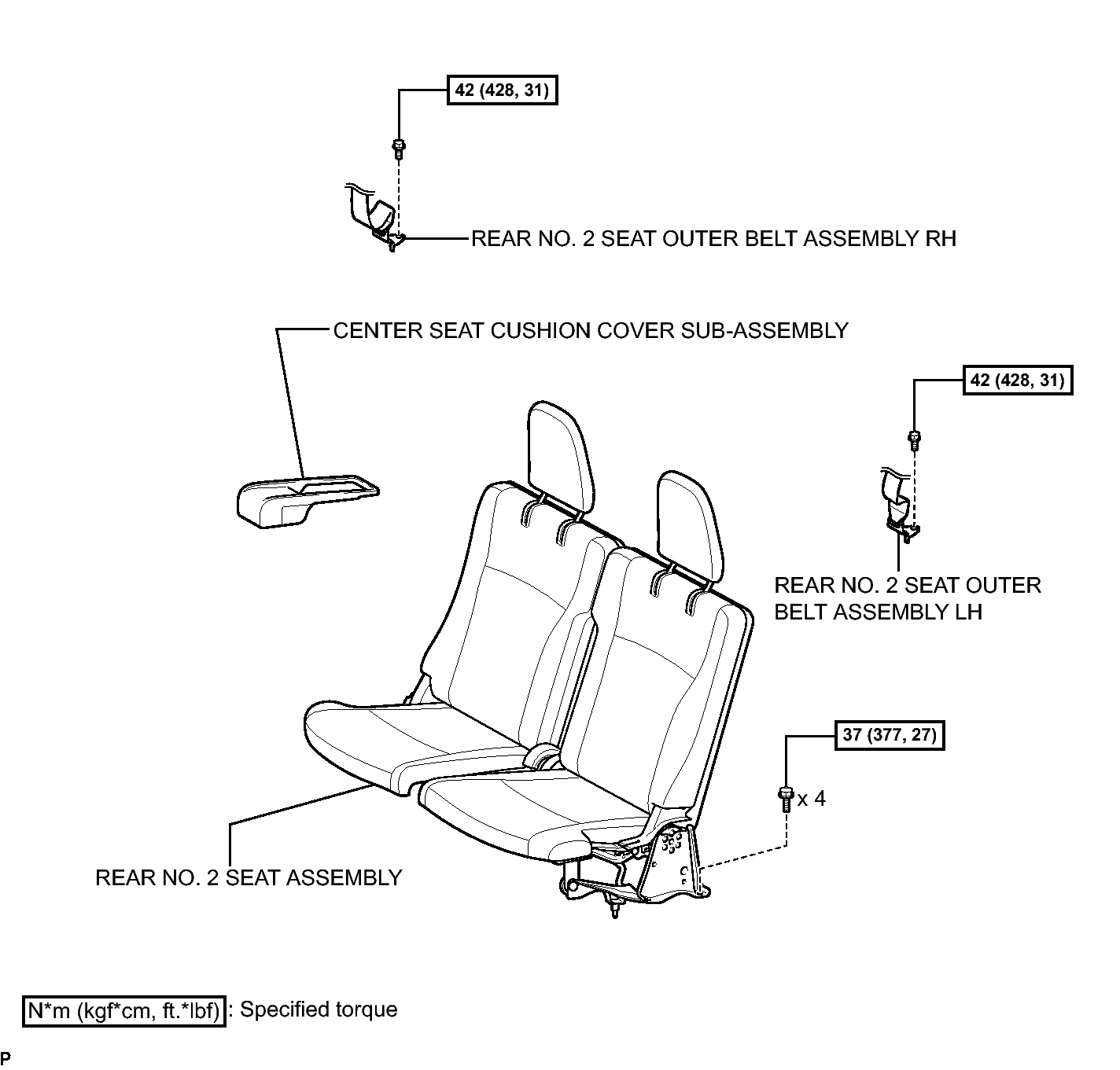

Fig 1: Identifying Rear Cooling Unit Replacement Components With Torque Specifications (5 of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

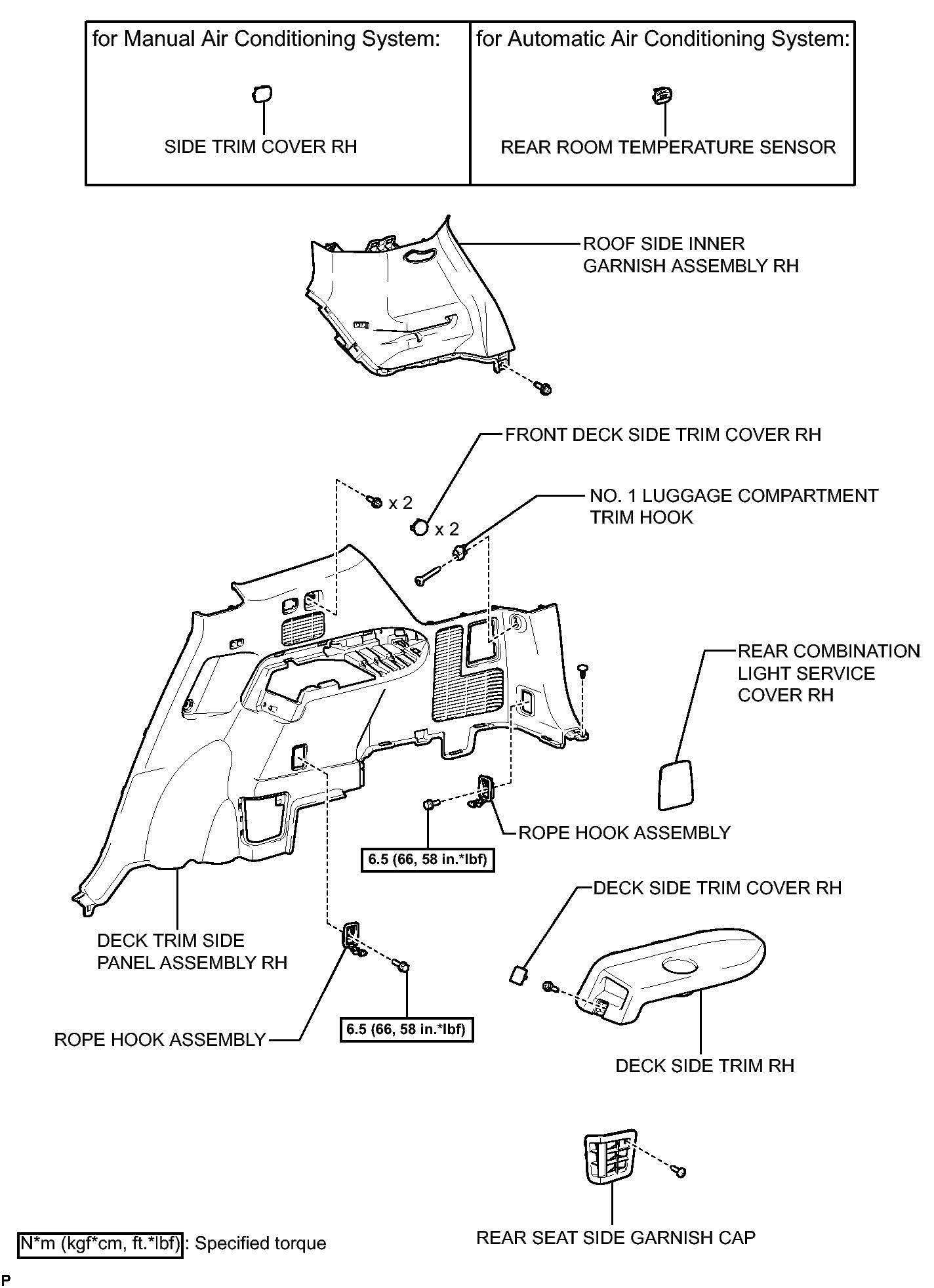

Fig 1: Identifying Rear Cooling Unit Replacement Components With Torque Specifications (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

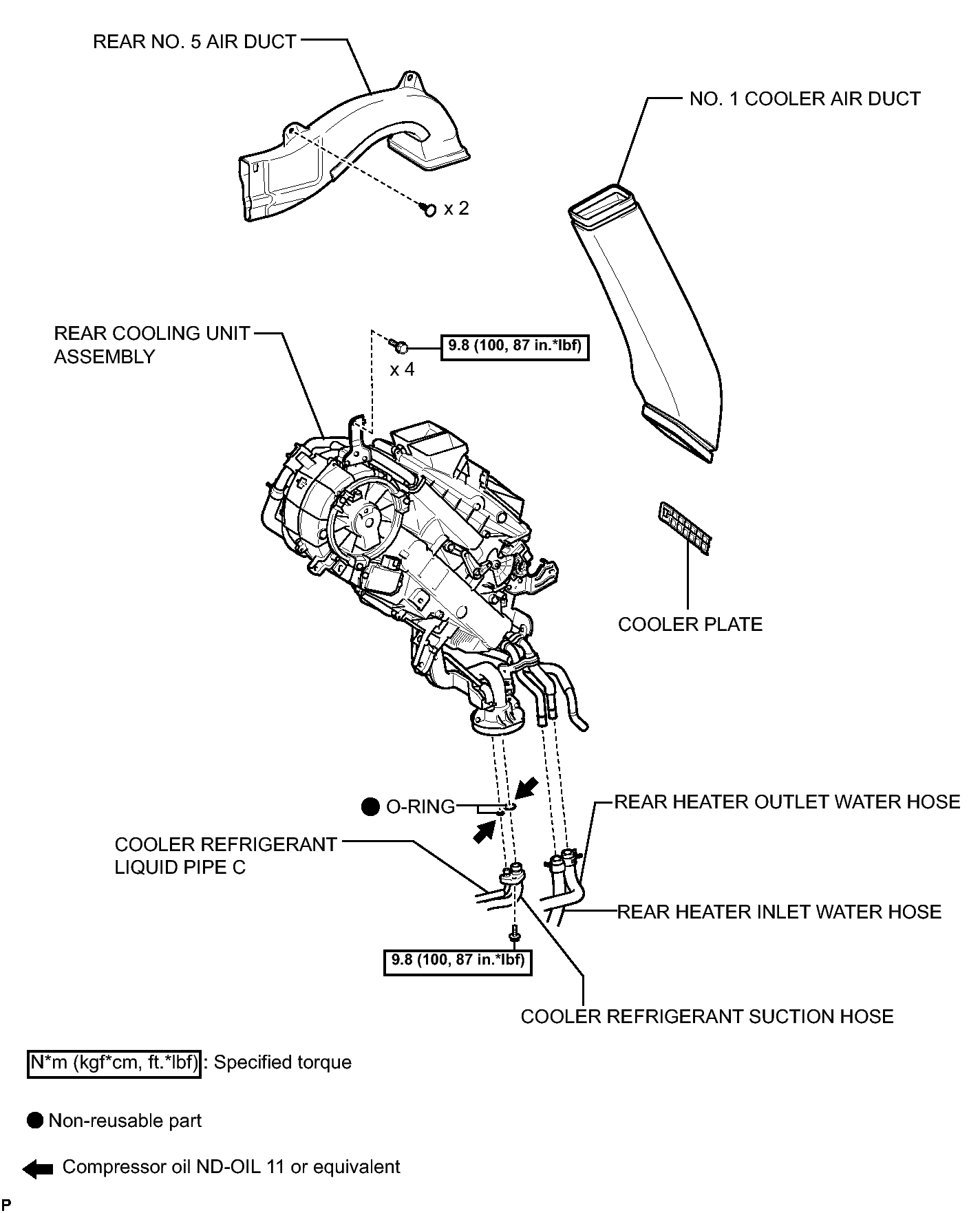

Fig 1: Identifying Rear Cooling Unit Replacement Components With Torque Specifications (7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

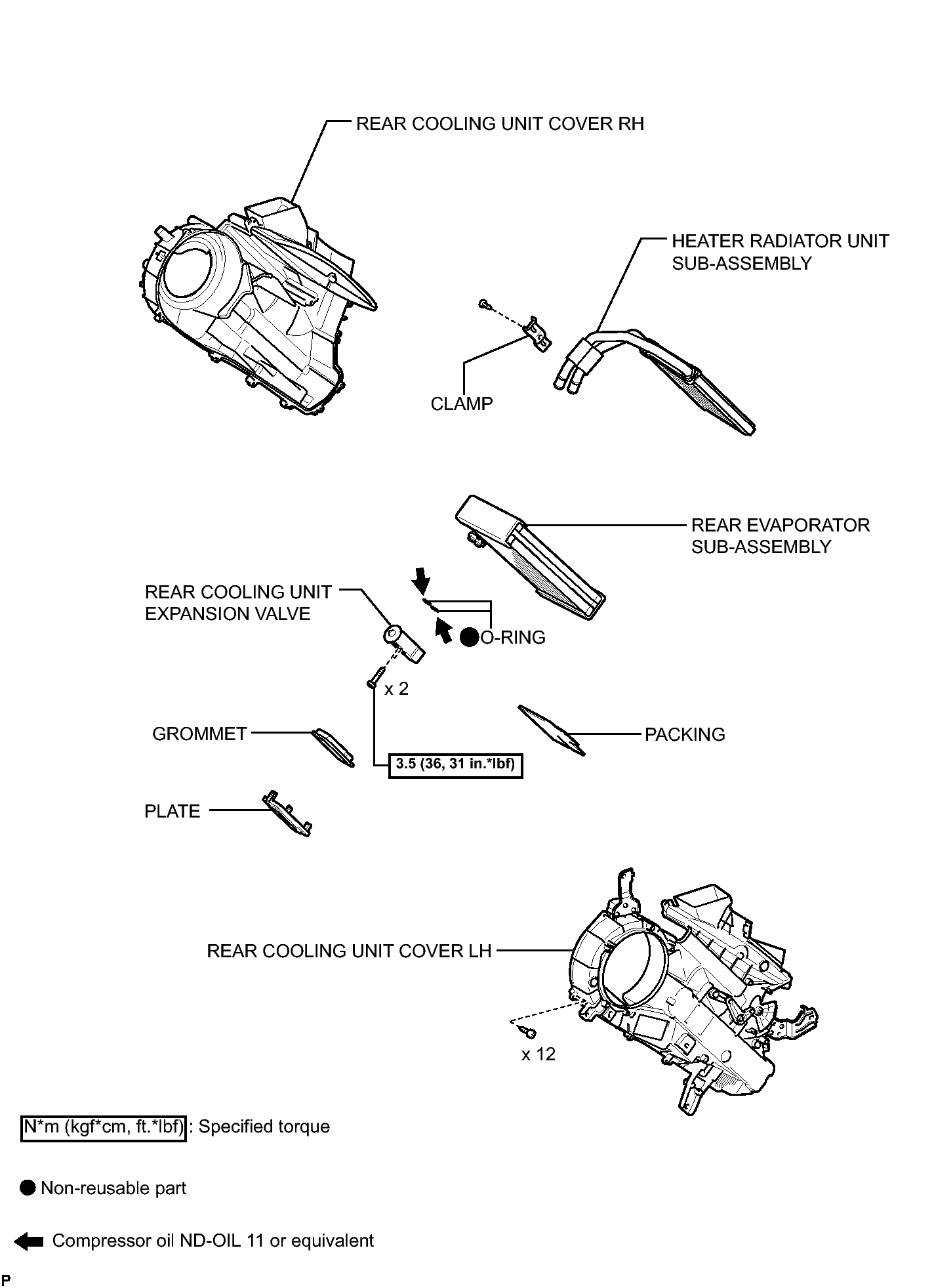

Fig 1: Identifying Rear Cooling Unit Replacement Components With Torque Specification (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
