Rear Air Conditioning Panel: Components: Illustration

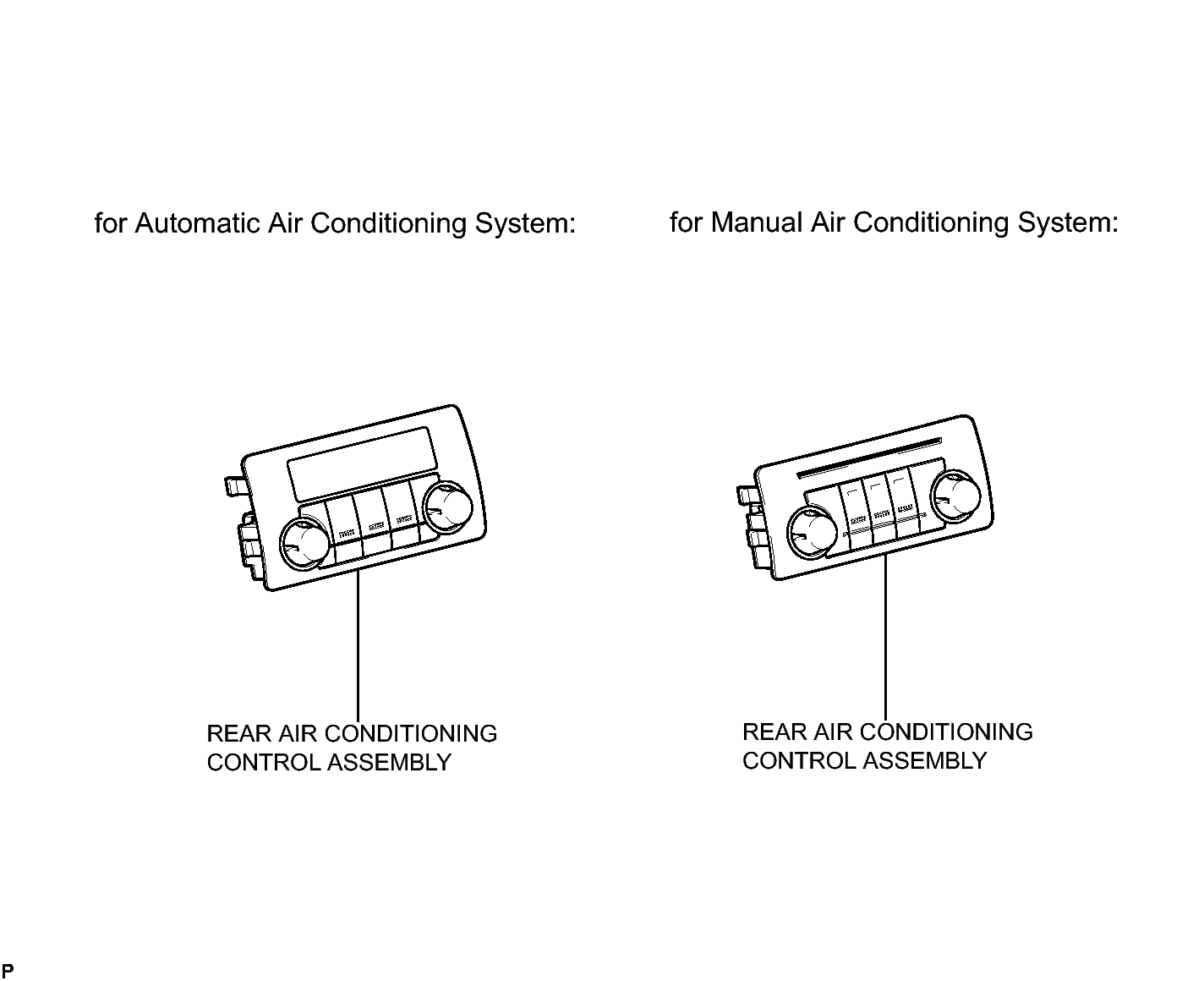

Fig 1: Identifying Rear Air Conditioning Panel Components

GTY170490

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
