ROOM TEMPERATURE SENSOR (for Front): Components: Illustration

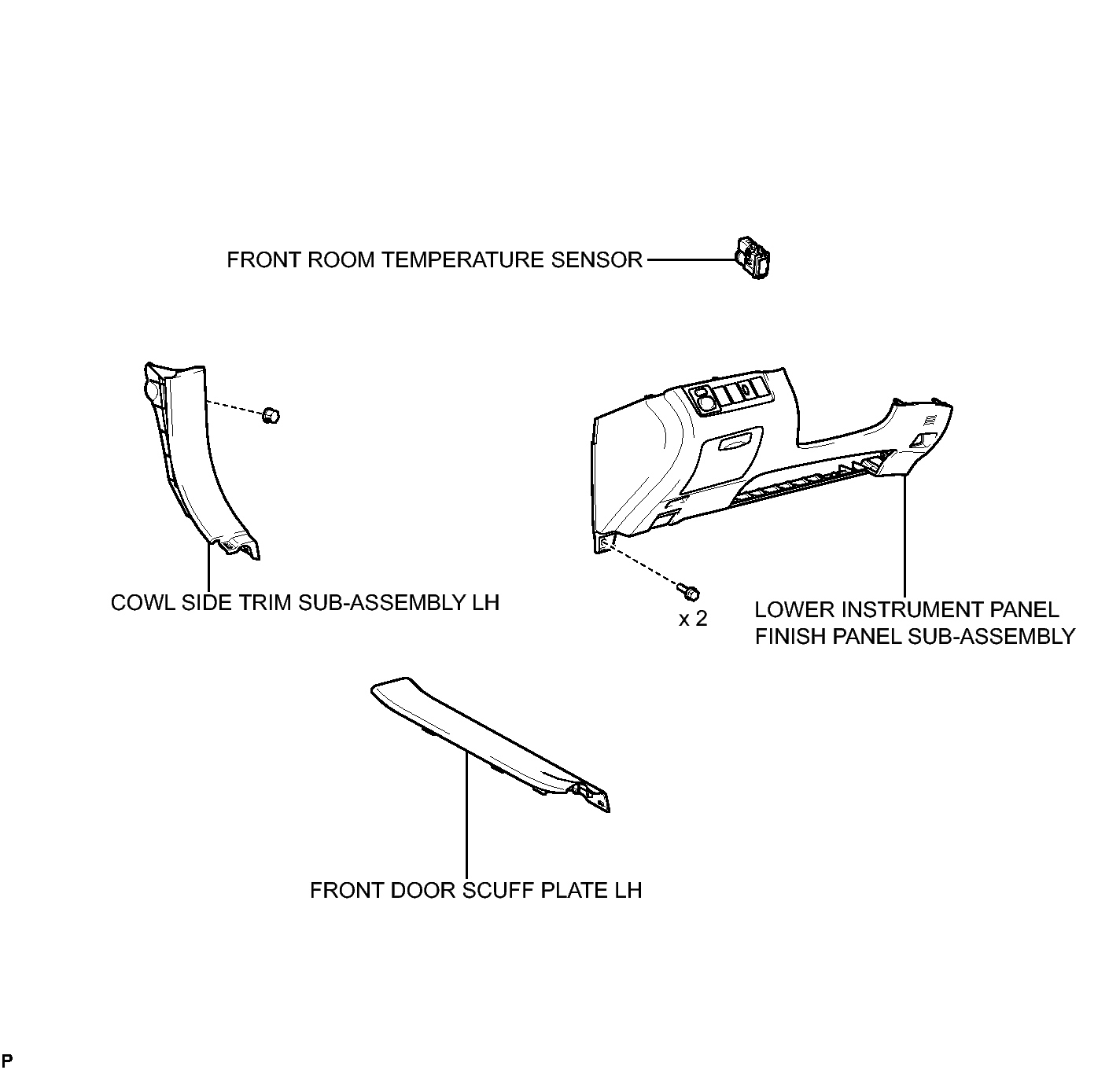

Fig 1: Identifying Room Temperature Sensor Components (For Front)

GTY208056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
