Heater Water Pump: Components: Illustration

Fig 1: Identifying Heater Water Pump Replacement Components (1 of 3)
GTY300467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

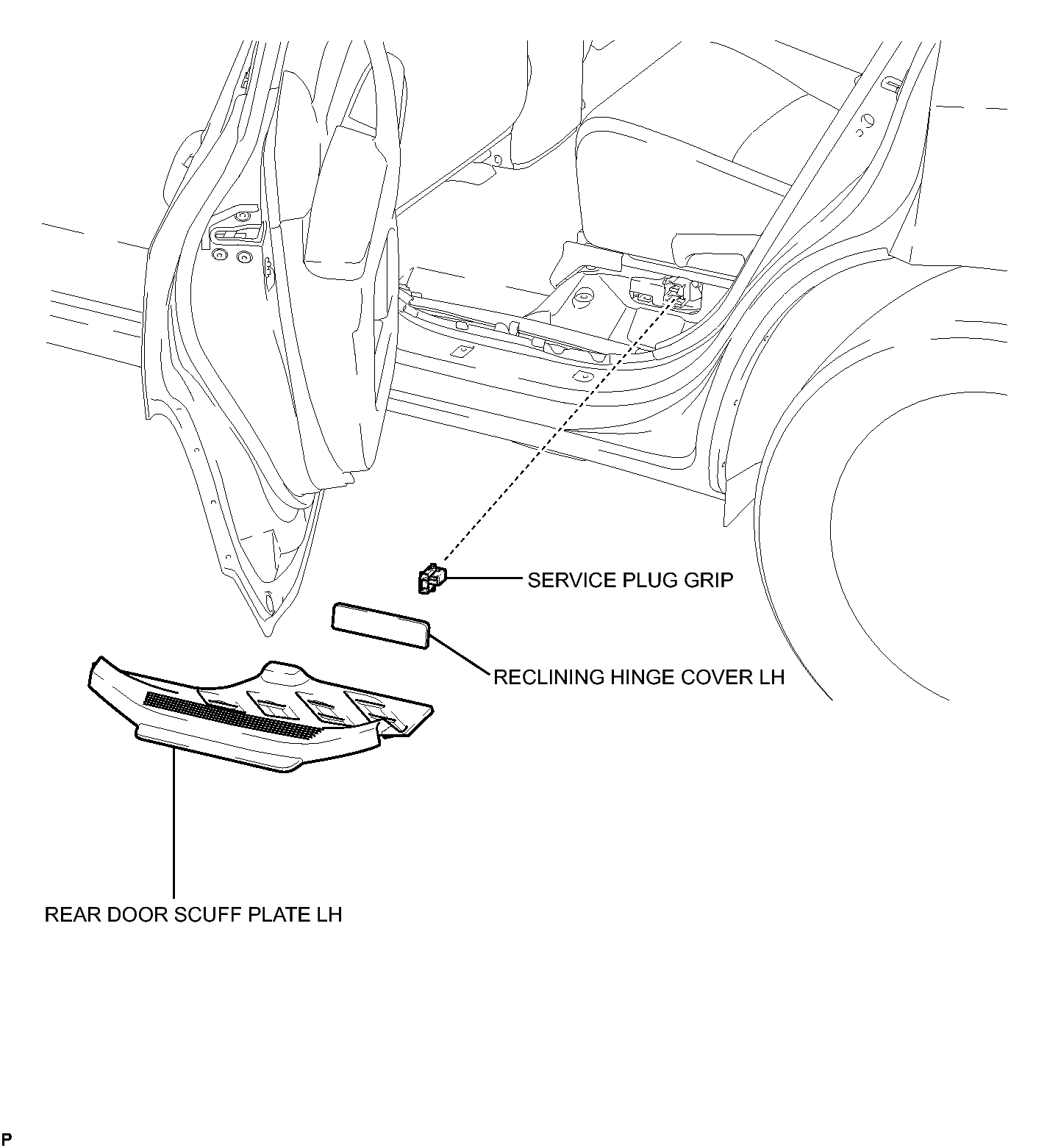

Fig 1: Identifying Heater Water Pump Replacement Components (2 of 3)
GTY174937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

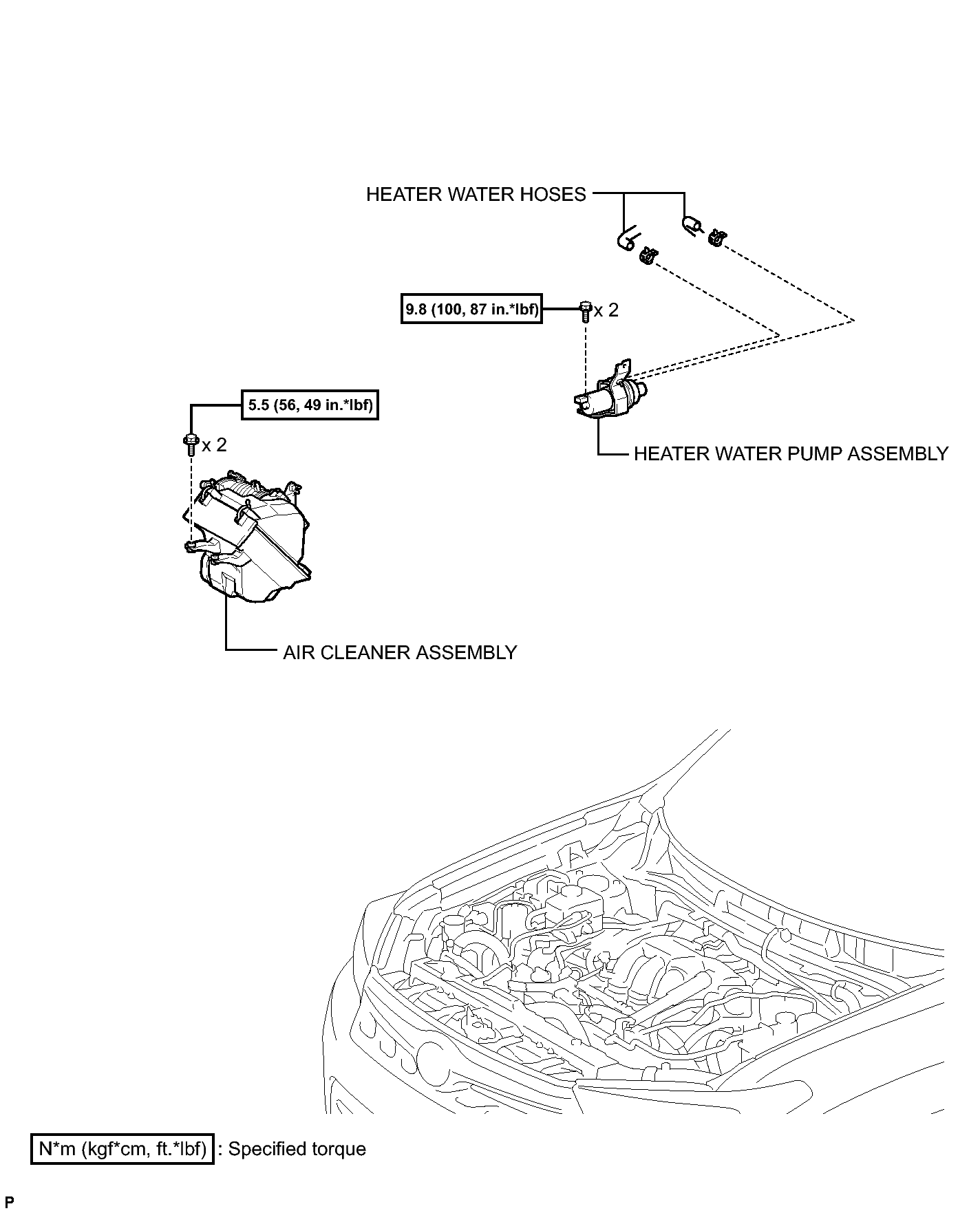

Fig 1: Identifying Heater Water Pump Replacement Components With Torque Specifications (3 of 3)
GTY297580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
