Air Conditioning (Manual) (Diagnostic Codes & Circuit Tests) (Hybrid): Compressor: Components: Illustration

Fig 1: Identifying Compressor Replacement Components (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Compressor Replacement Components (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

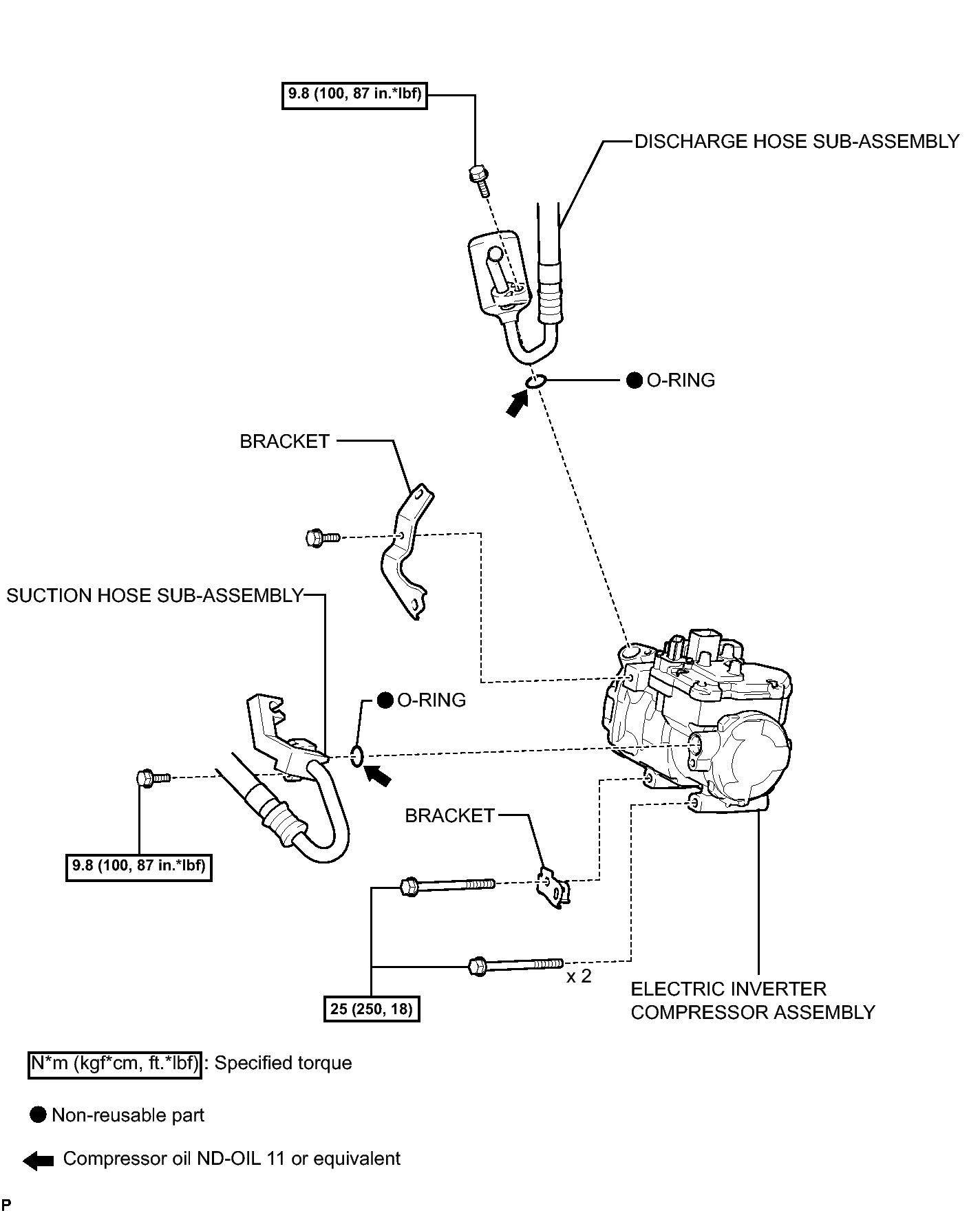

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
