Air Inlet Control Servo Motor: Components: Illustration

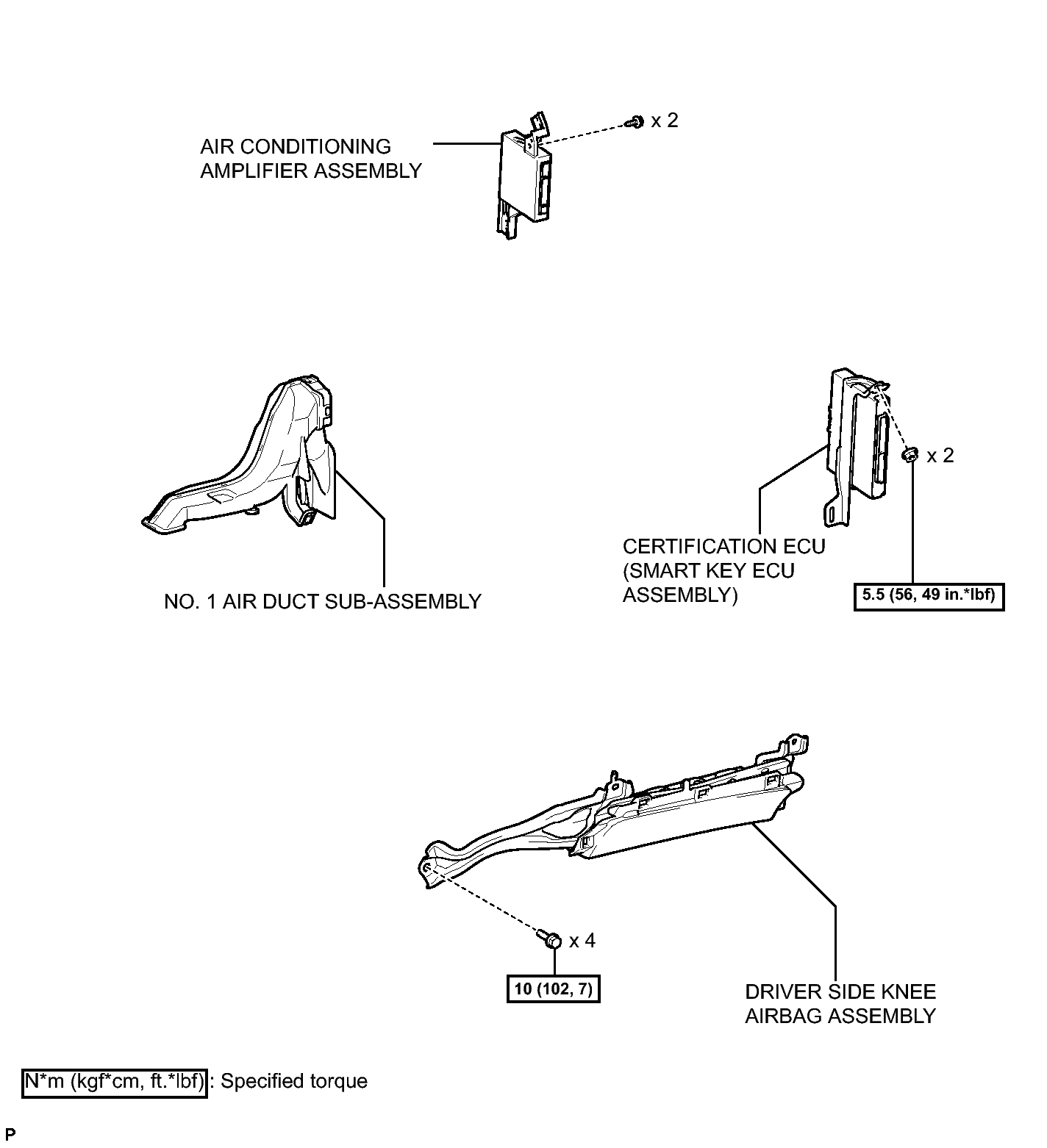

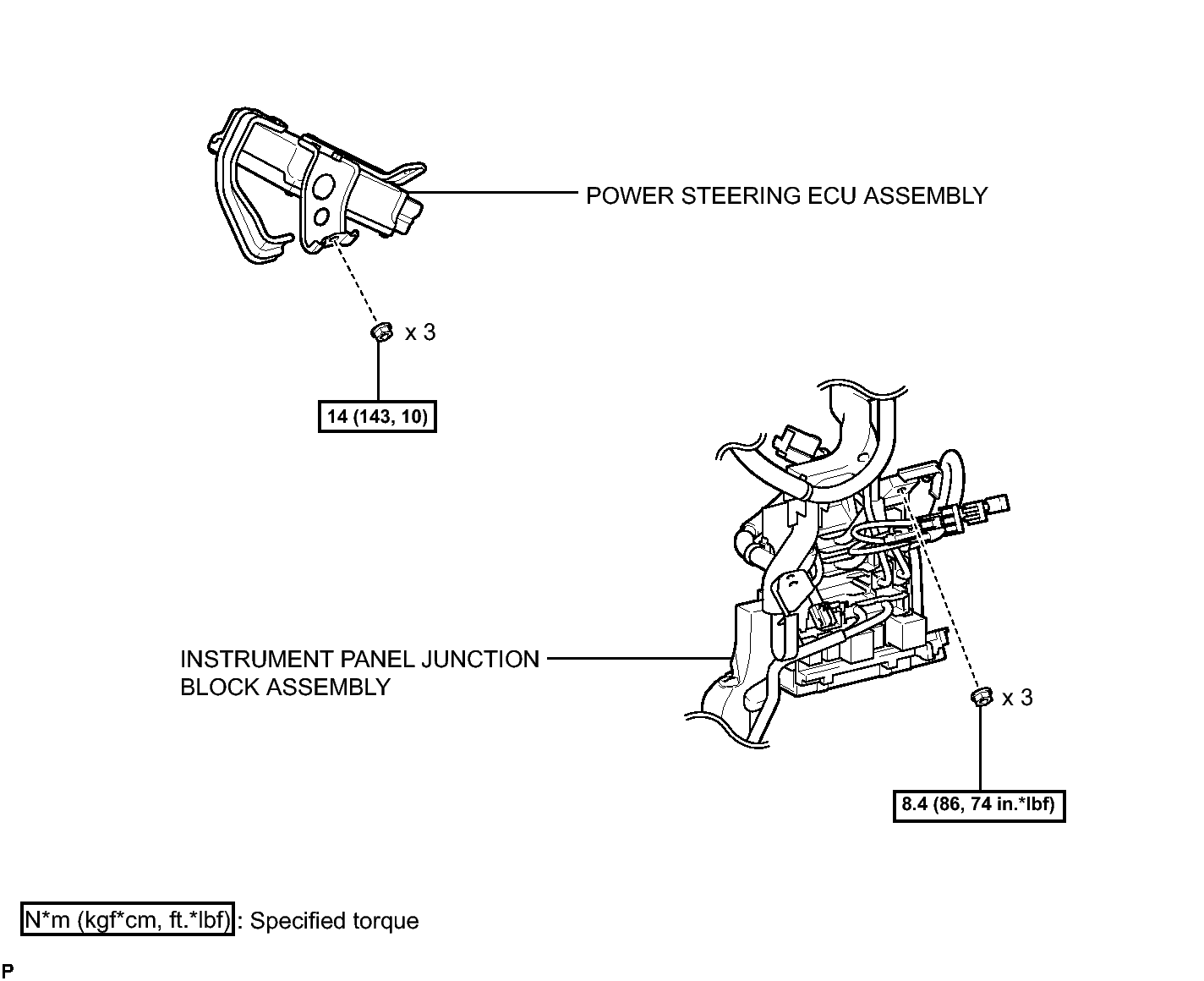

Fig 1: Air Outlet Control Servo Motor (For Front) With Torque Specifications (1 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

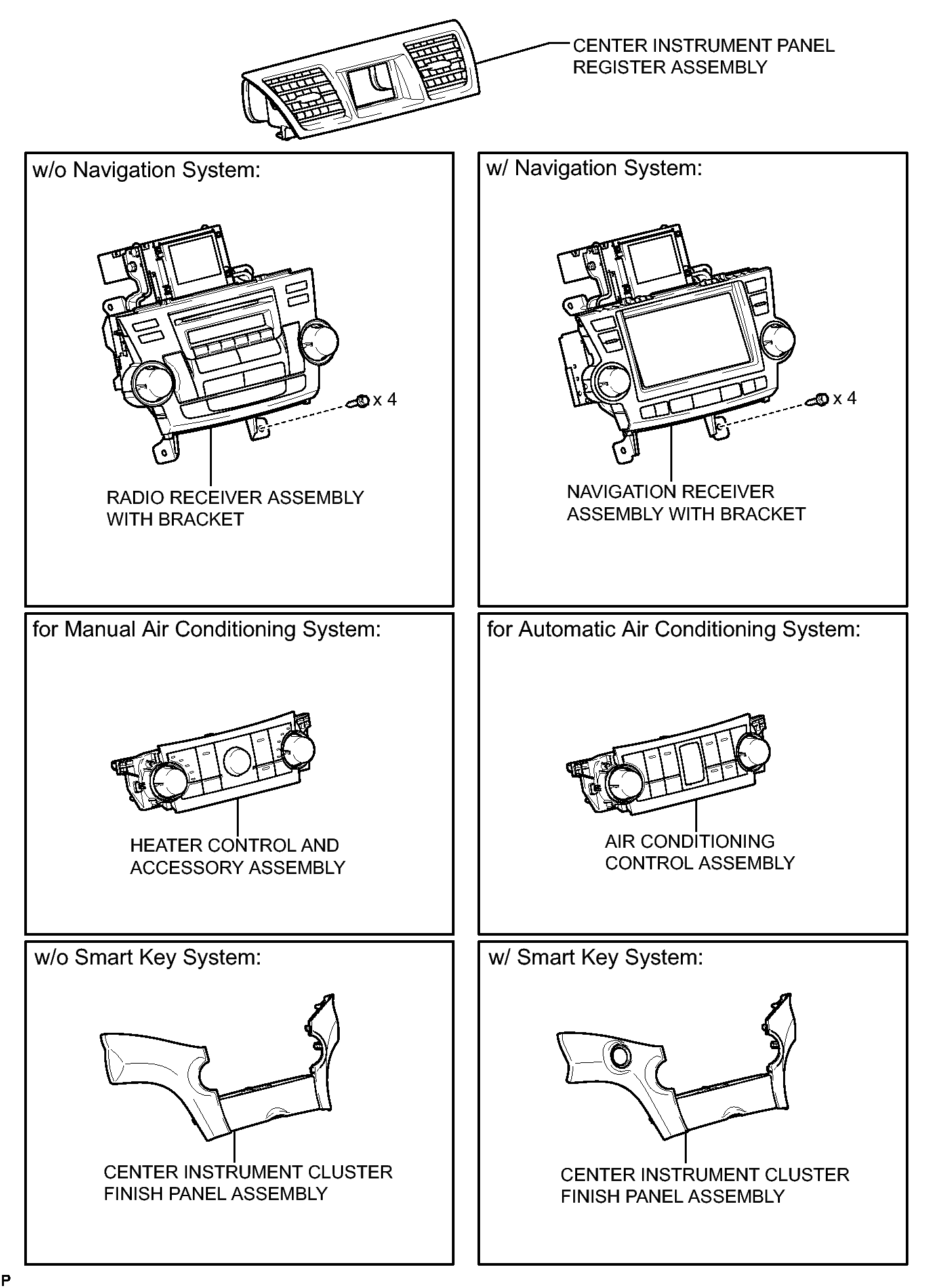

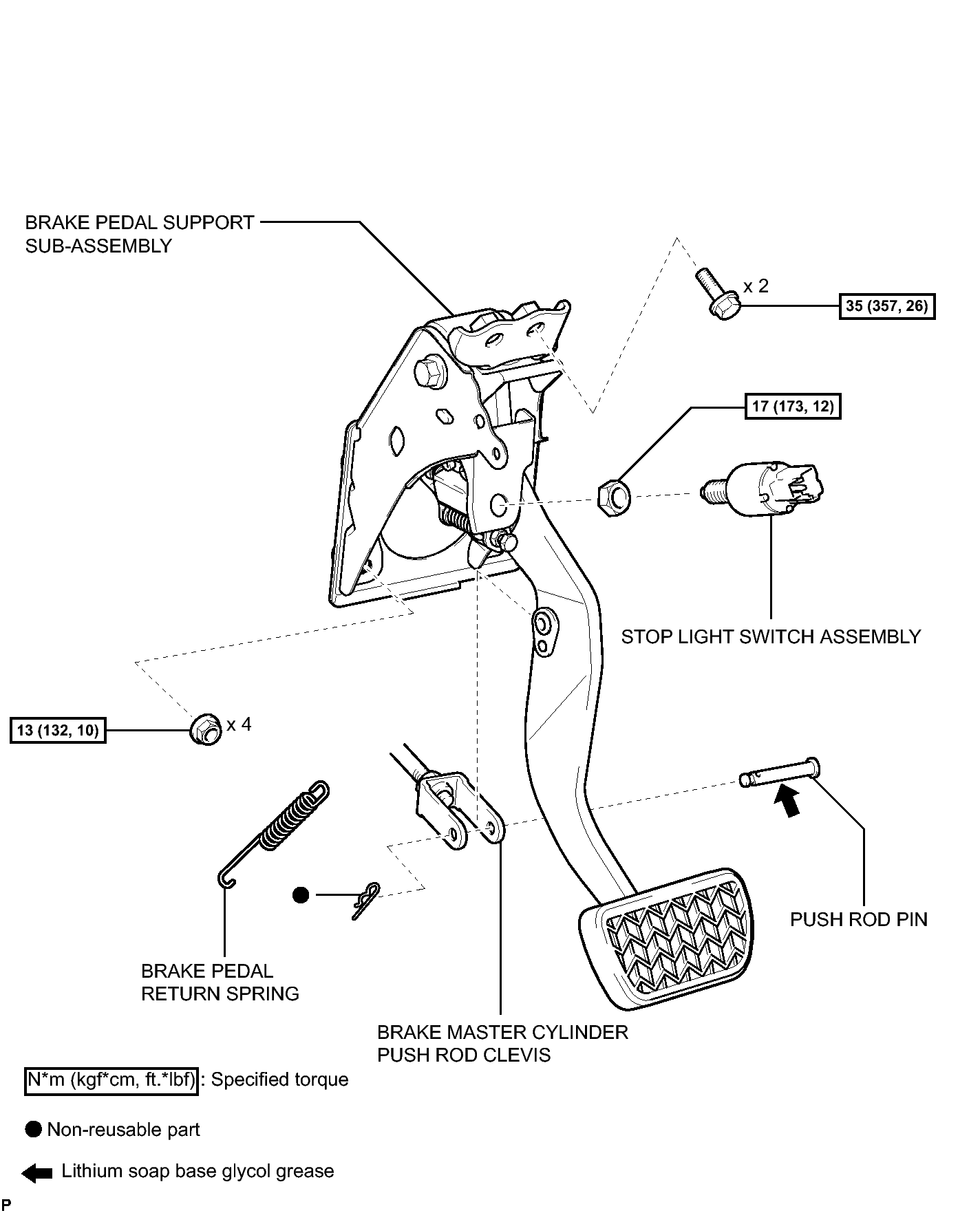

Fig 1: Air Outlet Control Servo Motor (For Front) With Torque Specifications (2 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

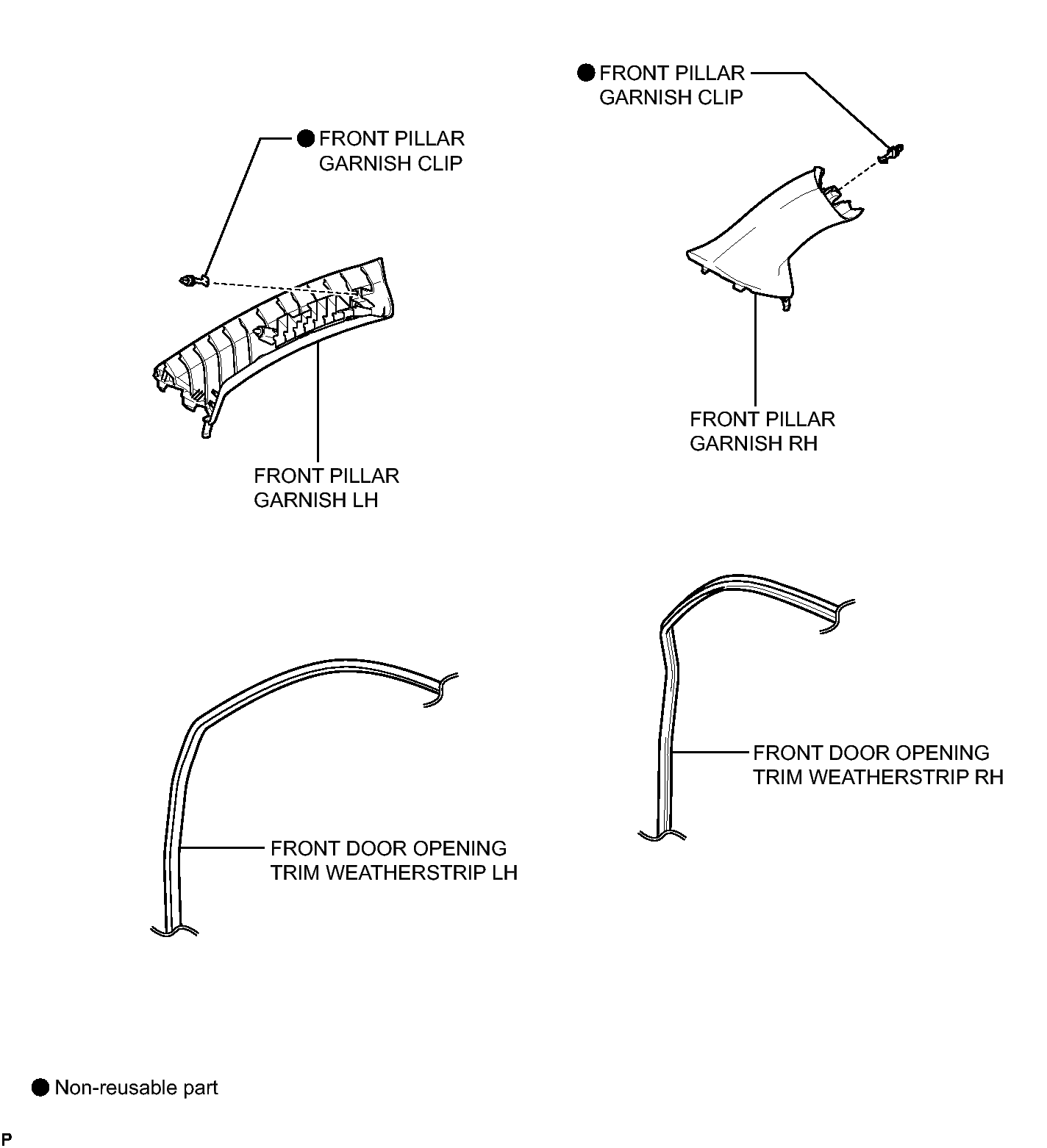

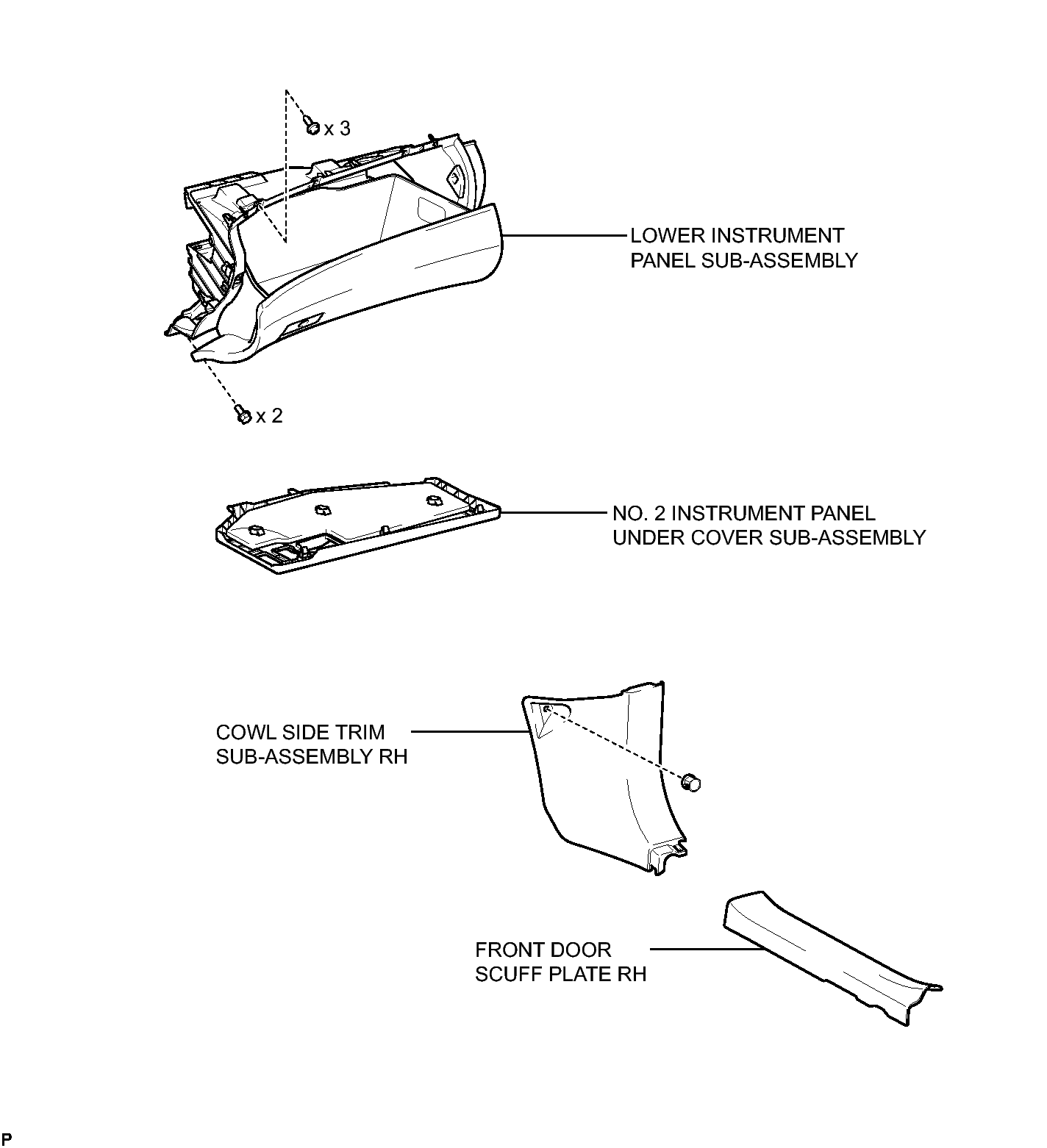

Fig 1: Identifying Air Inlet Control Servo Motor Replacement Components (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

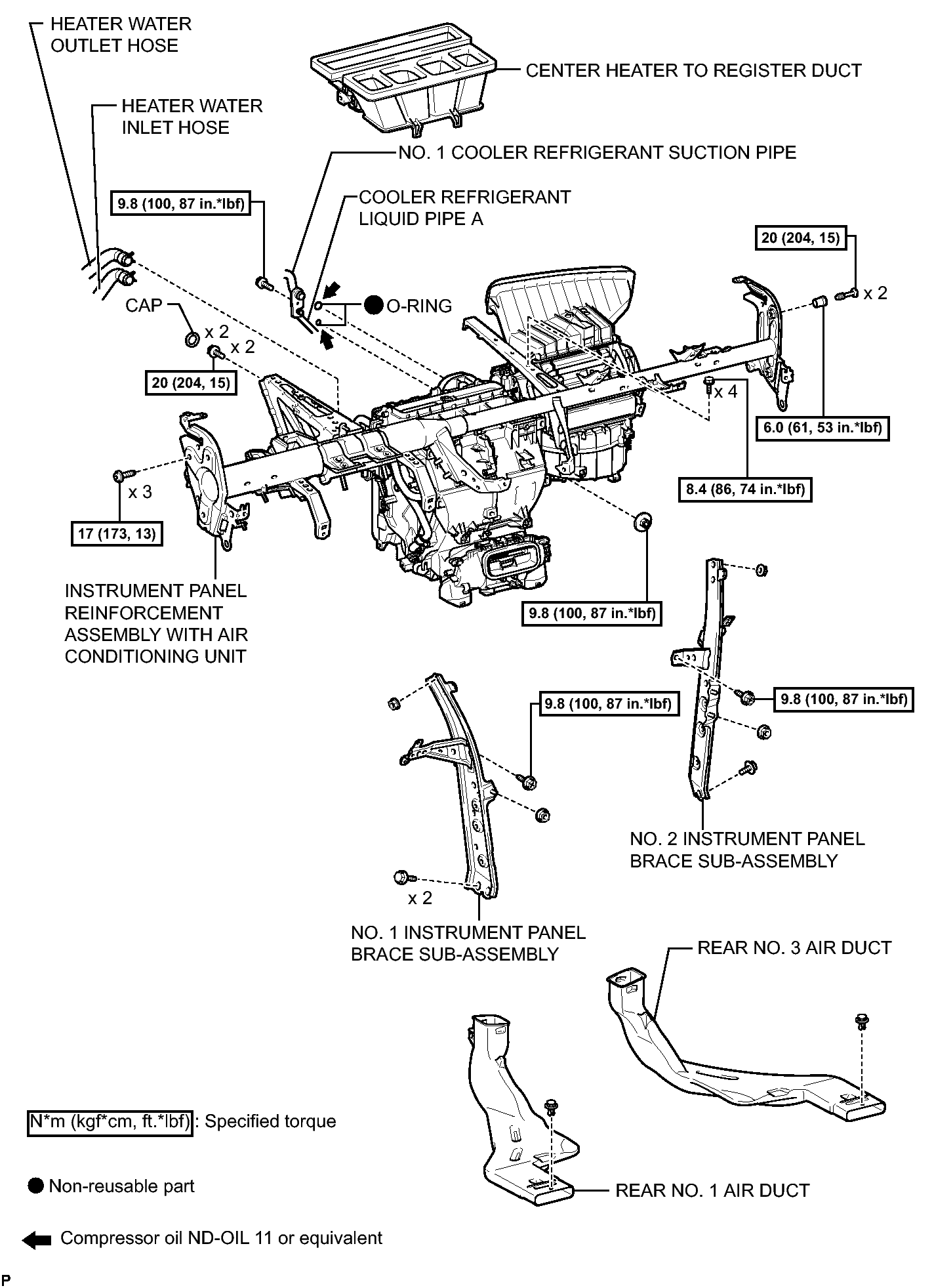

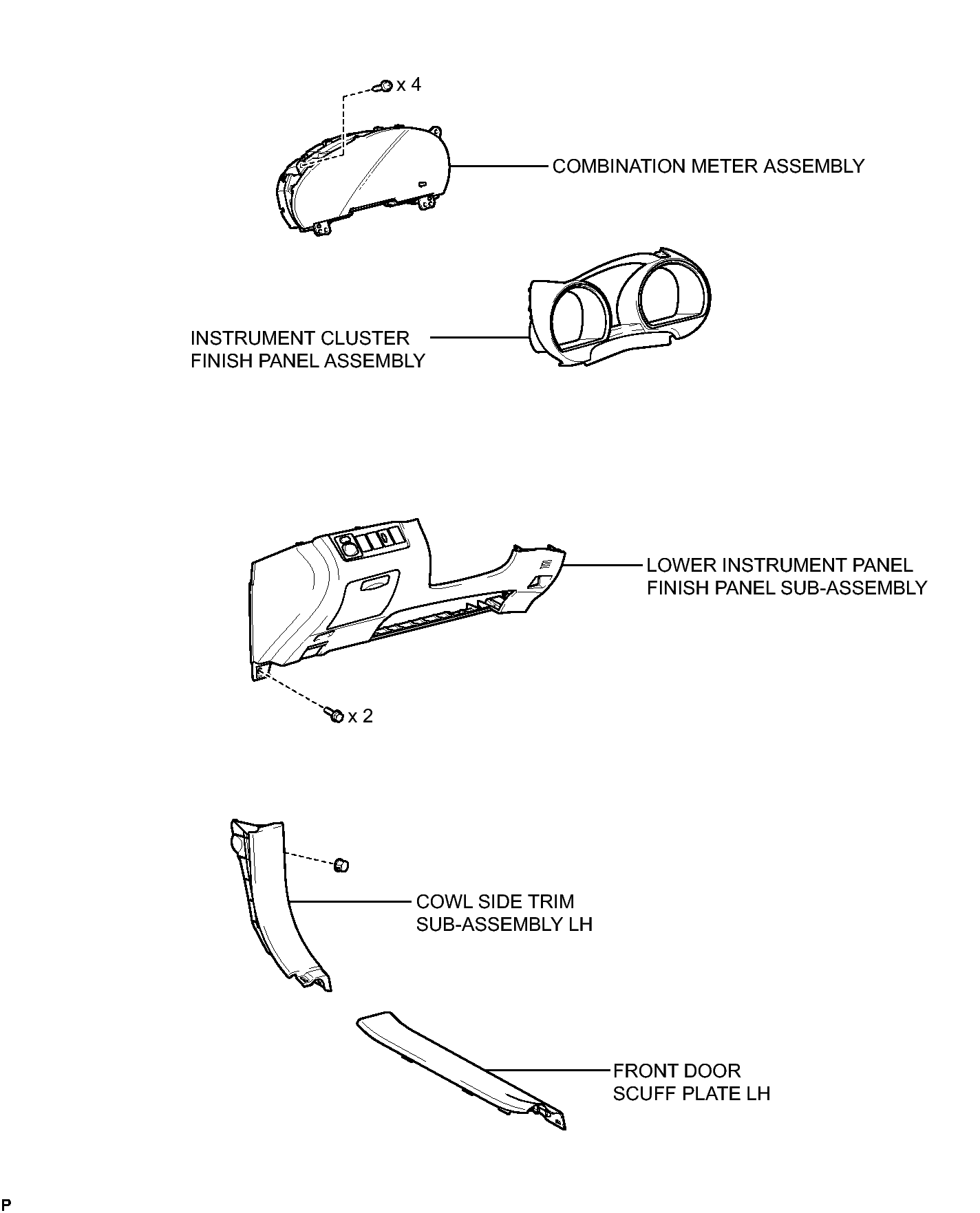

Fig 1: Identifying Air Inlet Control Servo Motor Replacement Components (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

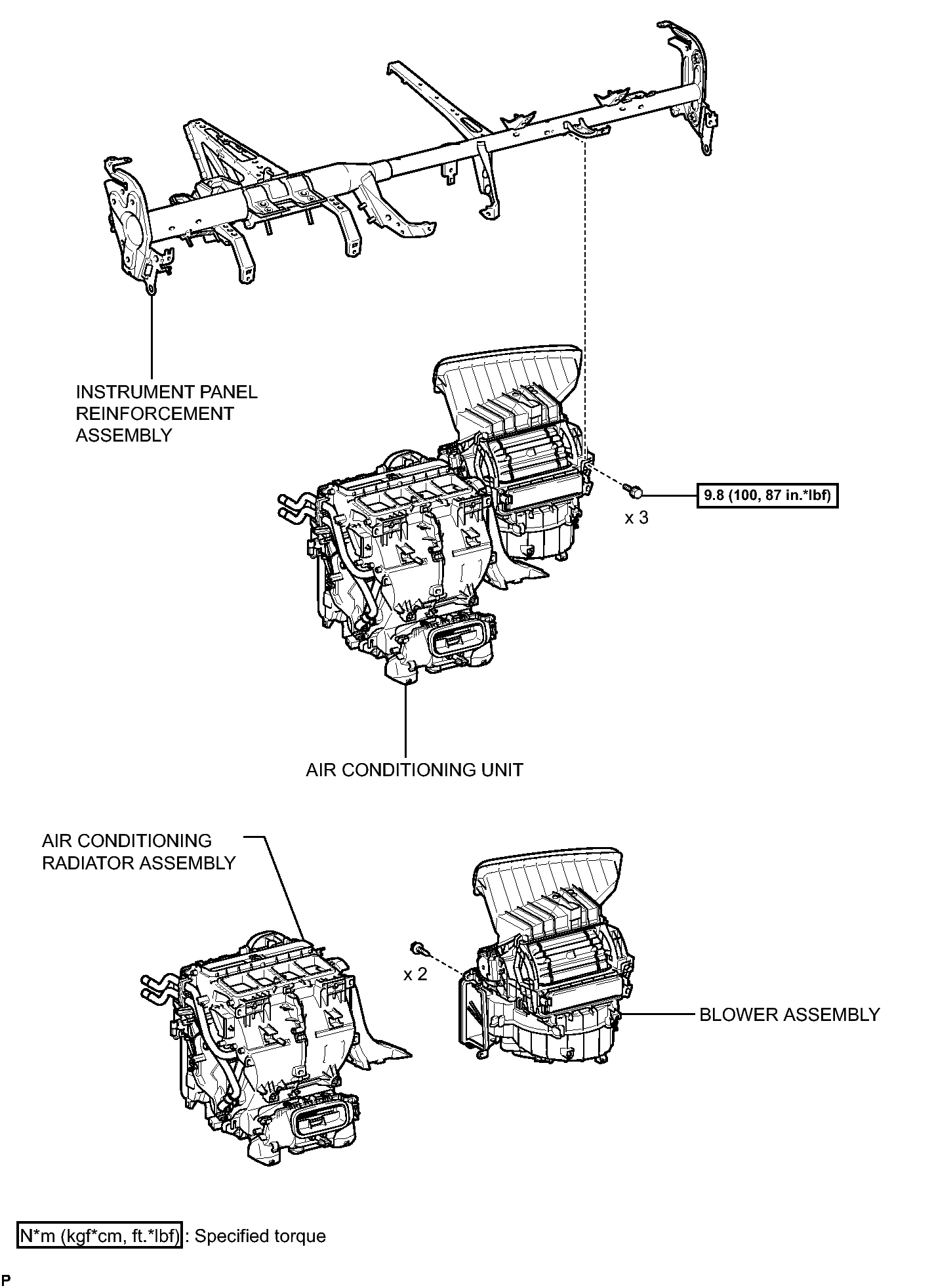

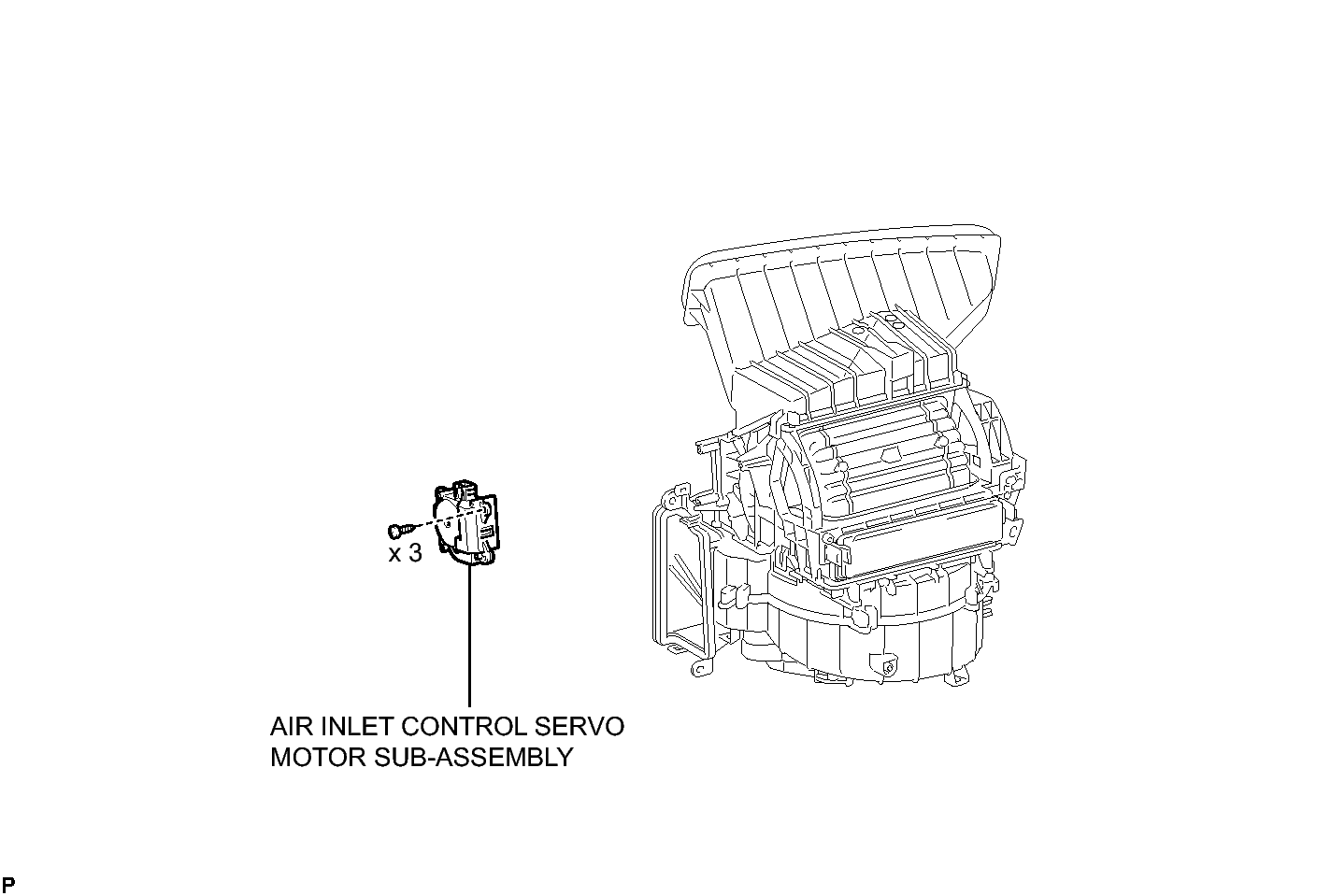

Fig 1: Identifying Air Inlet Control Servo Motor Replacement Components (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

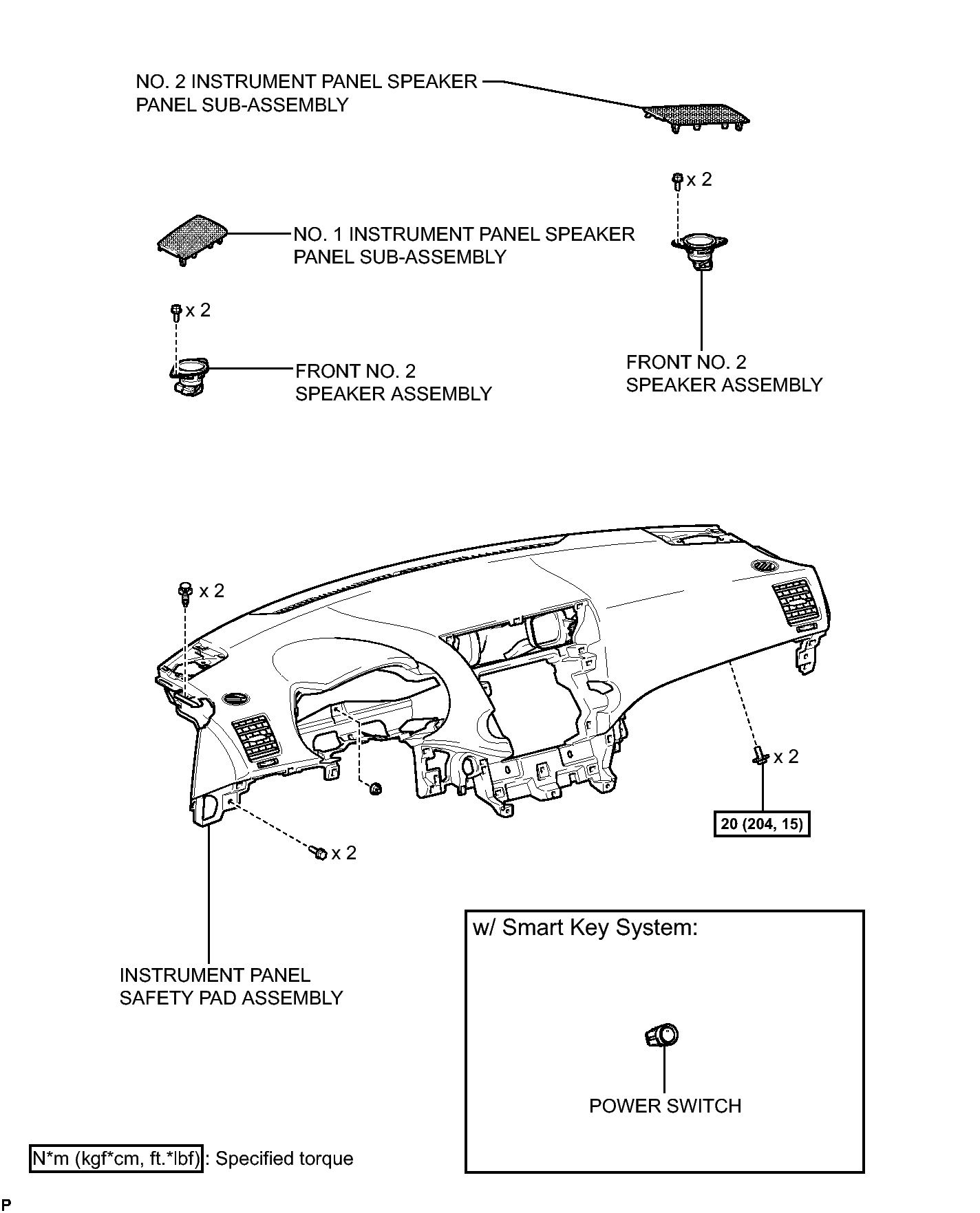

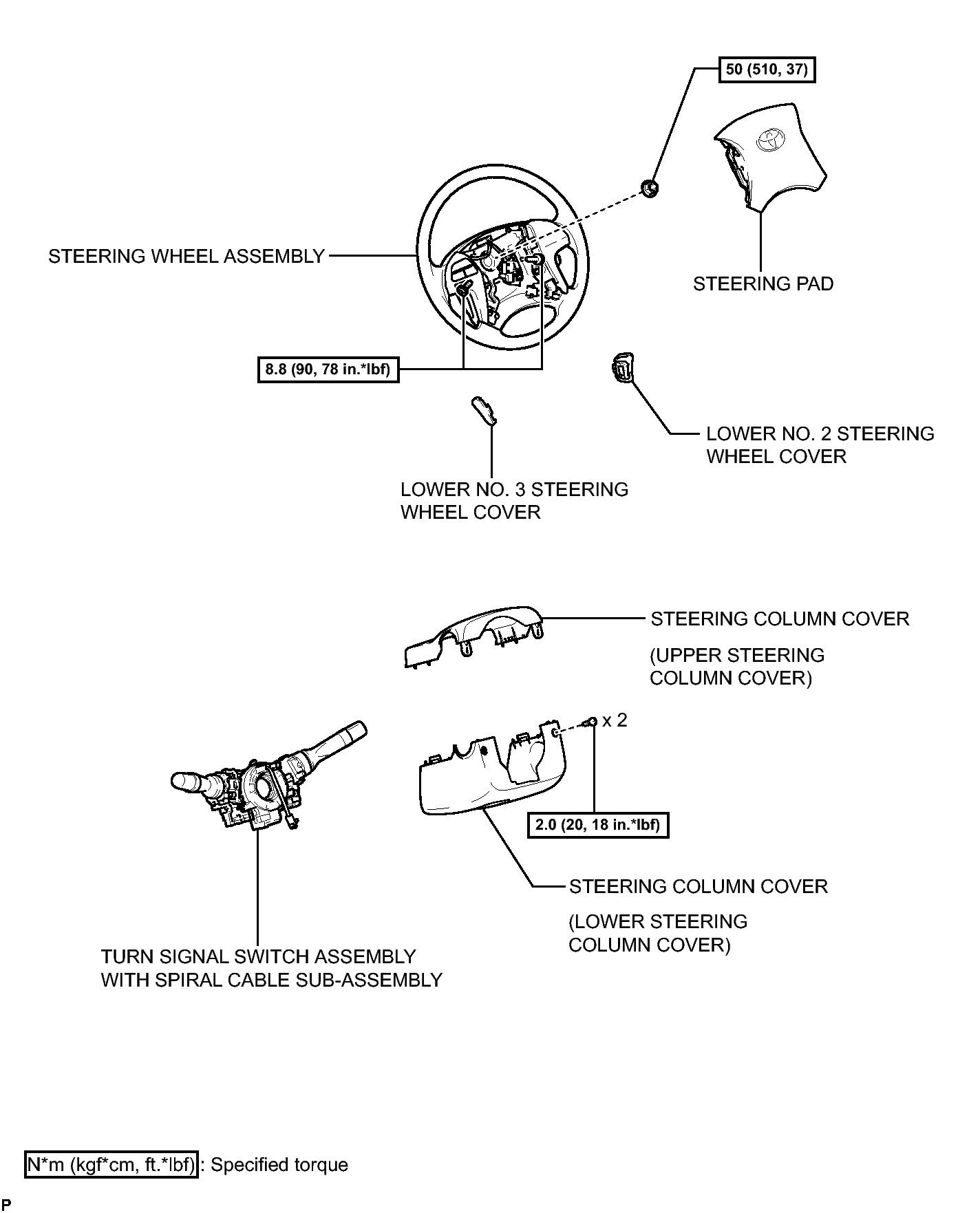

Fig 1: Identifying Air Inlet Control Servo Motor Replacement Components (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Air Inlet Control Servo Motor Replacement Components (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Air Outlet Control Servo Motor (For Front) With Torque Specifications (8 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Air Outlet Control Servo Motor (For Front) With Torque Specifications (9 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Air Outlet Control Servo Motor (For Front) With Torque Specifications (10 of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Air Outlet Control Servo Motor (For Front) With Torque Specifications (11 of 15)

Fig 1: Air Outlet Control Servo Motor (For Front) With Torque Specifications (12 of 15)

Fig 1: Air Outlet Control Servo Motor (For Front) With Torque Specifications (13 of 15)

Fig 1: Air Outlet Control Servo Motor (For Front) With Torque Specifications (14 of 15)

Fig 1: Identifying Air Inlet Control Servo Motor Replacement Components (15 Of 15)
