Air Conditioning Amplifier: Components: Illustration

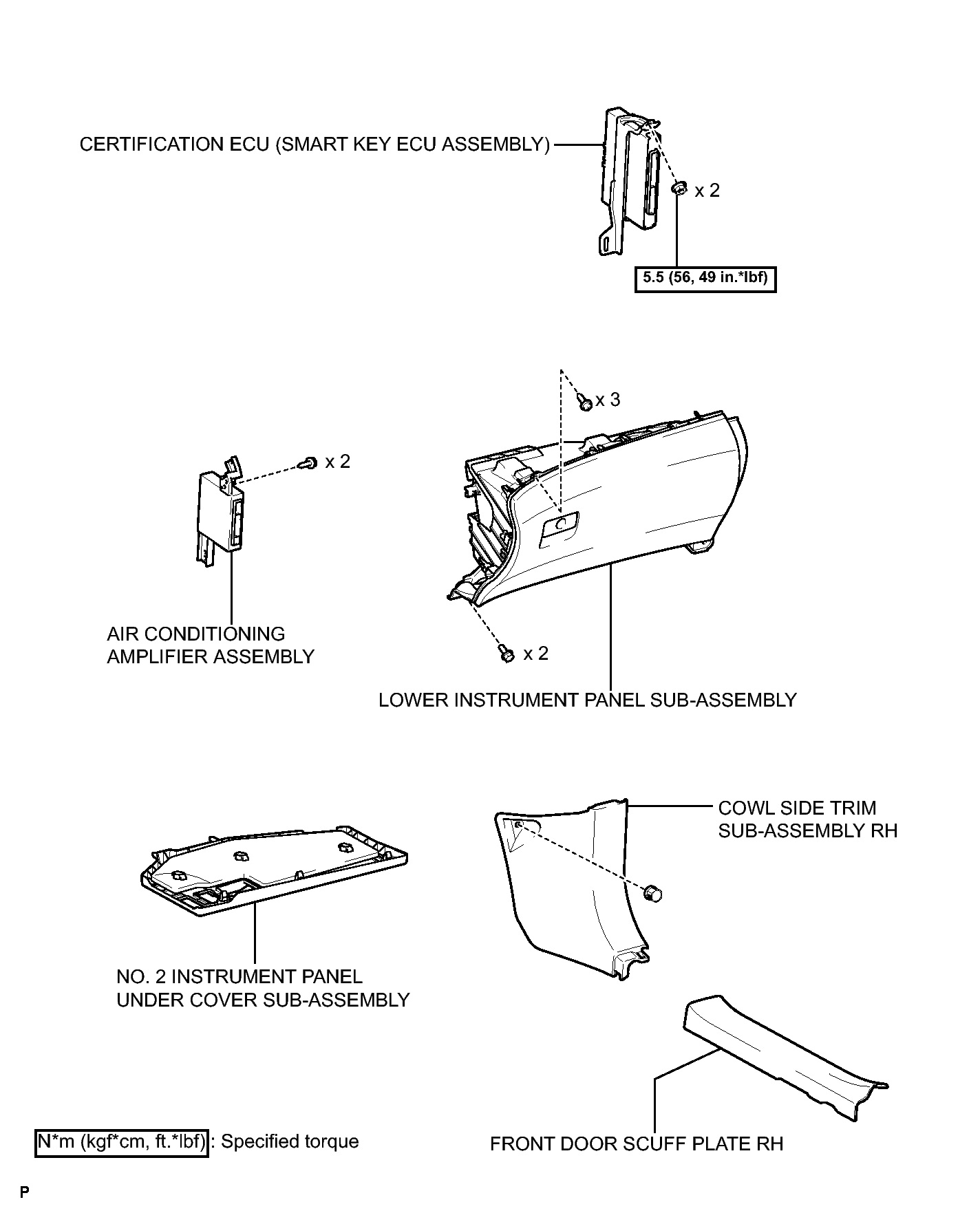

Fig 1: Identifying Air Conditioning Amplifier Components

GTY190869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
