AIR OUTLET CONTROL SERVO MOTOR (for Rear): Components: Illustration

Fig 1: Identifying Air Outlet Control Servo Motor (For Rear) Replacement Components (1 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Air Outlet Control Servo Motor (For Rear) Replacement Components (2 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Air Outlet Control Servo Motor (For Rear) Replacement Components (3 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

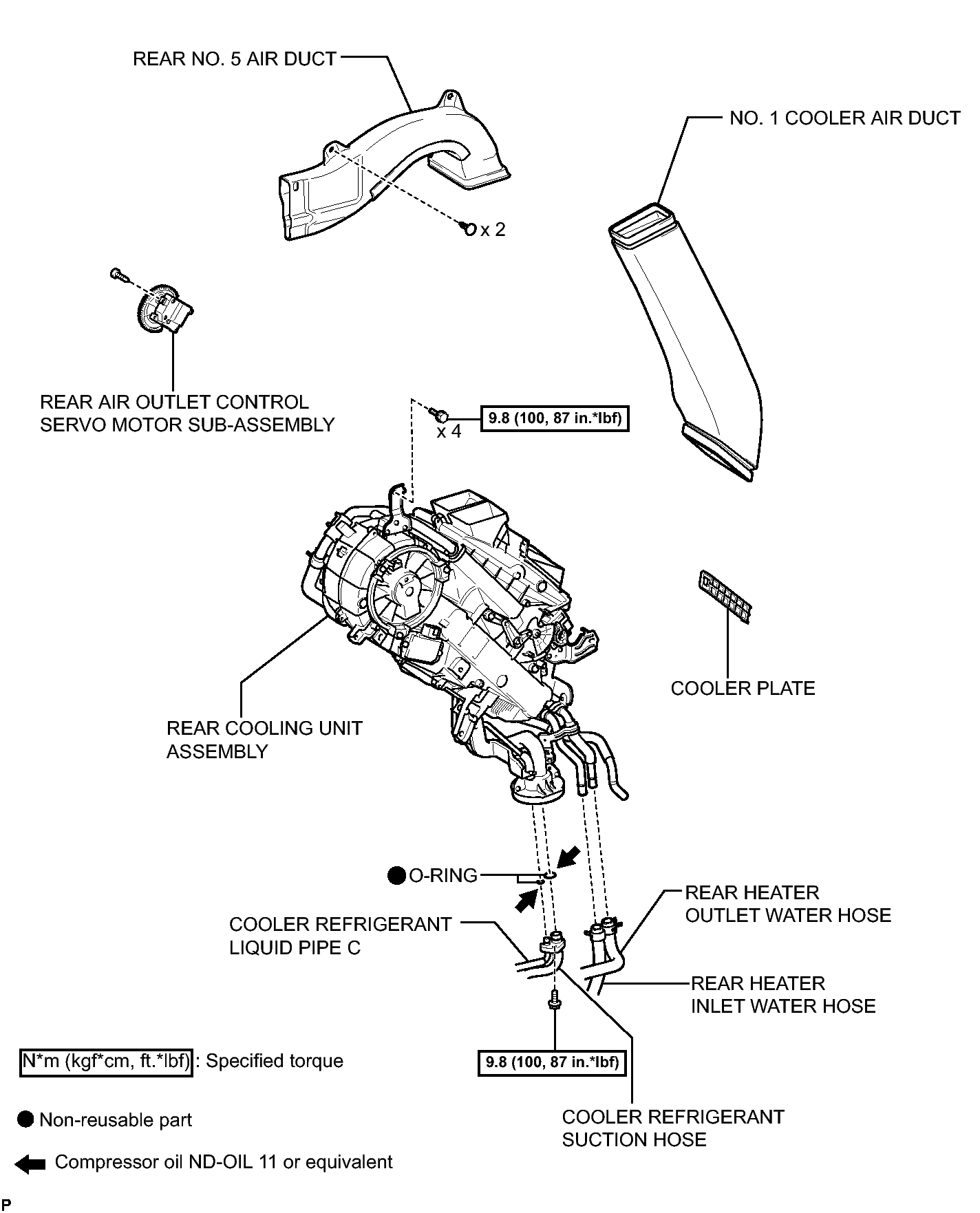

Fig 1: Identifying Air Outlet Control Servo Motor (For Rear) Replacement Components With Torque Specifications (4 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Air Outlet Control Servo Motor (For Rear) Replacement Components With Torque Specifications (5 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Air Outlet Control Servo Motor (For Rear) Replacement Components With Torque Specifications (6 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
