DTC B1423/23: Pressure Sensor Circuit: Wiring Diagram

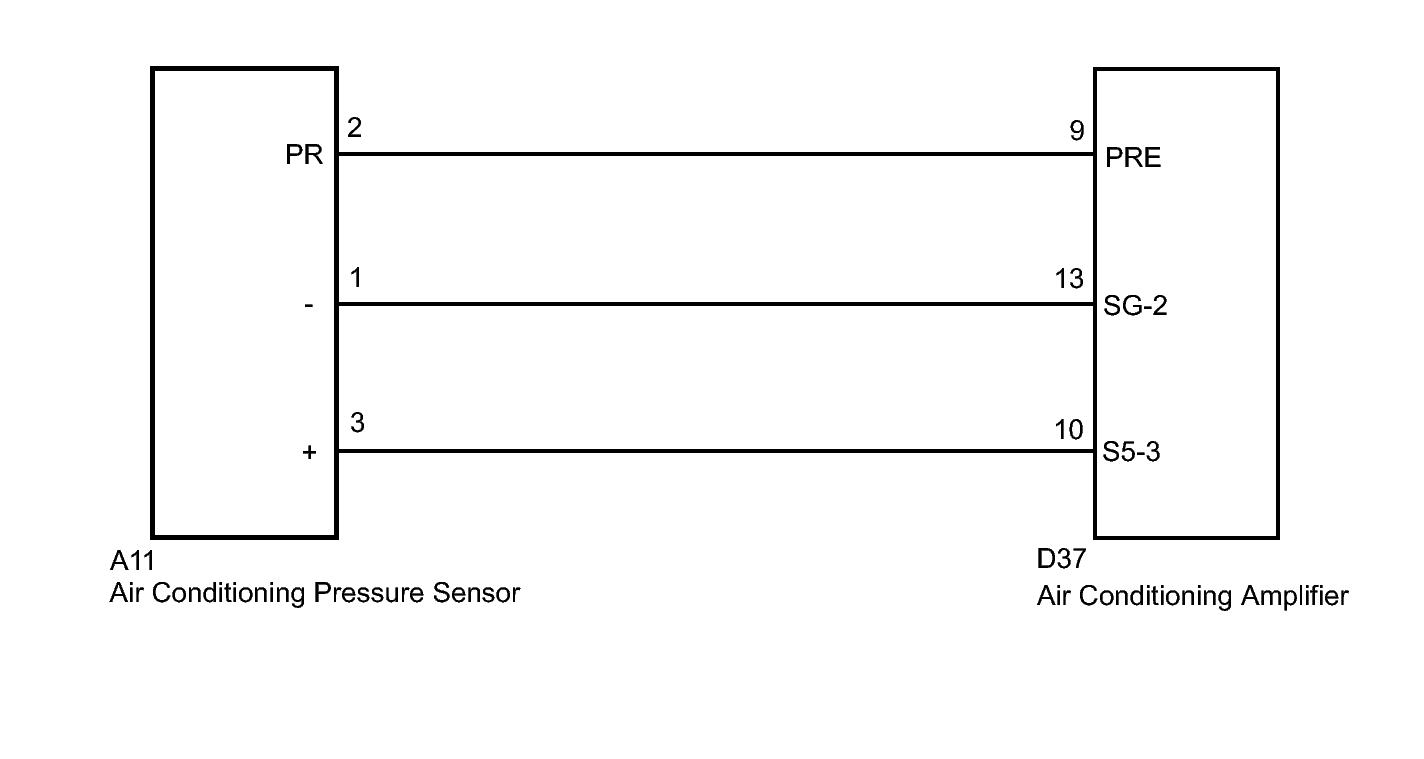

Fig 1: Pressure Sensor Wiring Diagram

GTY183362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
