DTC B1417/17: Rear Evaporator Temperature Sensor Circuit: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON and turn the Techstream main switch on.
3. Select the item below in the Data List, and read the value displayed on the Techstream.
   DATA LIST / AIR CONDITIONER



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Ambient Temp Sens(Rear)	Rear evaporator temperature sensor / Min.: -29.7°C (-21.46°F) Max.: 59.6°C (139.28°F)	Actual rear evaporator temperature is displayed	Open circuit: -29.7°C (-21.46°F) Short circuit: 59.6°C (139.28°F)

   OK

   The display is as specified in the normal condition column.

   Result

   Result	Proceed to
   NG	A
   OK (When troubleshooting according to PROBLEM SYMPTOMS TABLE)	B
   OK (When troubleshooting according to DTC)	C

B → See step   4

C → See step   5

A: Go to next step

1. Remove the rear air conditioning harness.

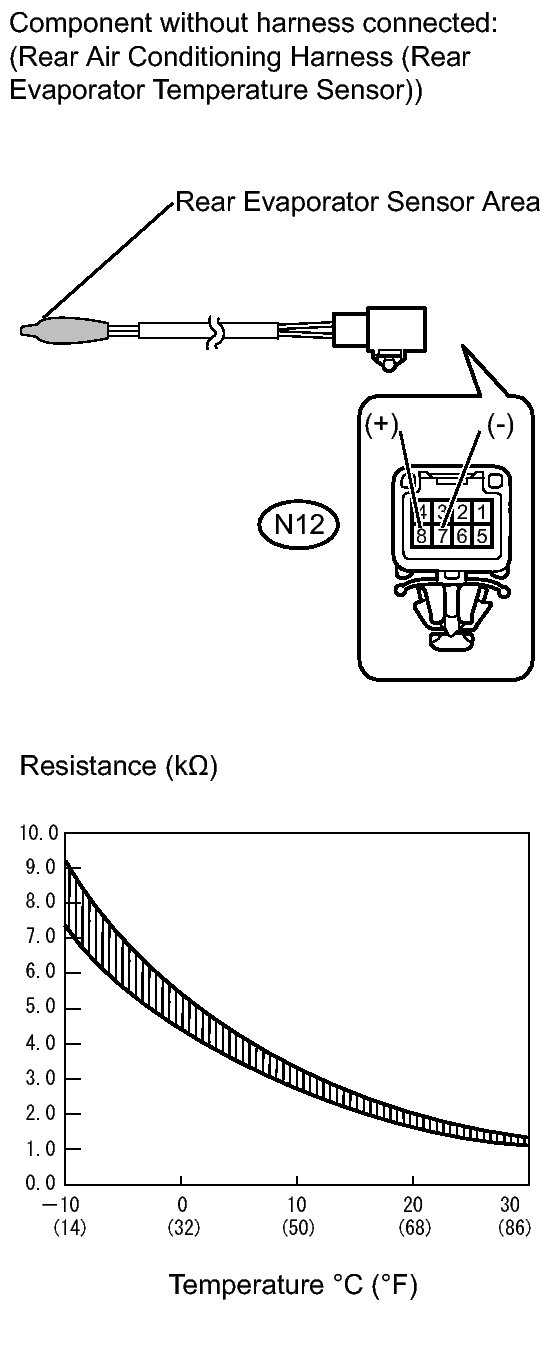

   Fig 1: Identifying Rear Air Conditioning Harness (Rear Evaporator Temperature Sensor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   N12-7 (-) - N12-8 (+)	-10°C (14°F)	7.30 to 9.10 kΩ
   N12-7 (-) - N12-8 (+)	-5°C (23°F)	5.65 to 6.95 kΩ
   N12-7 (-) - N12-8 (+)	0°C (32°F)	4.40 to 5.35 kΩ
   N12-7 (-) - N12-8 (+)	5°C (41°F)	3.40 to 4.15 kΩ
   N12-7 (-) - N12-8 (+)	10°C (50°F)	2.70 to 3.25 kΩ
   N12-7 (-) - N12-8 (+)	15°C (59°F)	2.14 to 2.58 kΩ
   N12-7 (-) - N12-8 (+)	20°C (68°F)	1.71 to 2.05 kΩ
   N12-7 (-) - N12-8 (+)	25°C (77°F)	1.38 to 1.64 kΩ
   N12-7 (-) - N12-8 (+)	30°C (86°F)	1.11 to 1.32 kΩ

   NOTE:

   • Touching the thermistor even slightly may change the resistance value. Be sure to hold the connector of the thermistor.
   • When measuring, the thermistor temperature must be the same as the ambient temperature.

   HINT:

   As the temperature increases, the resistance decreases (see the graph).

NG → REPLACE REAR AIR CONDITIONING HARNESS

OK: Go to next step

1. Disconnect the N12 sensor connector.
   Fig 2: Identifying Harness And Connector (Rear Air Conditioning Harness-Air Conditioning Amplifier)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the D38 amplifier connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   N12-8 (+) - D38-4 (TEC)	Always	Below 1 Ω
   N12-7 (-) - D38-19 (SGND)	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   6
