Terminals Of Ecu
WARNING: This page is about a different variant/trim than selected.

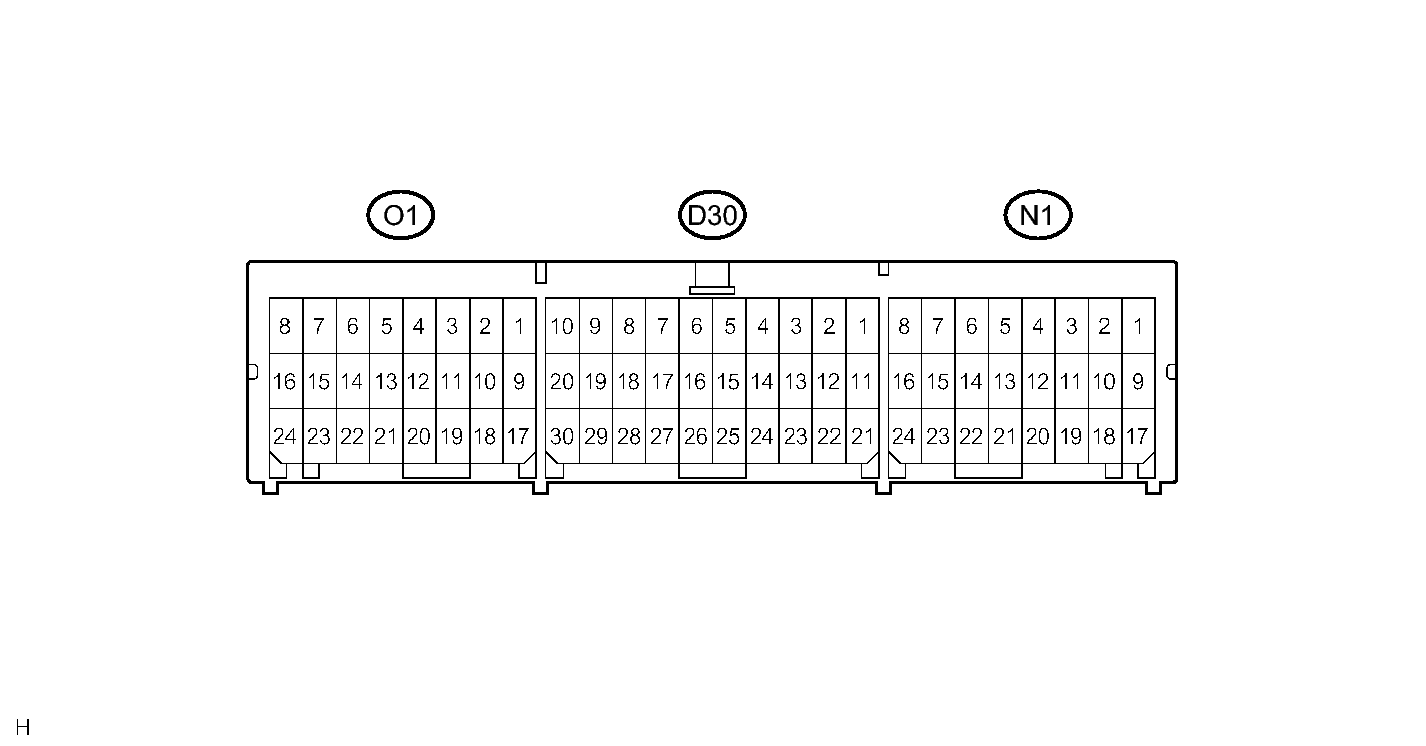

- CENTER AIRBAG SENSOR ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Terminal No. Terminal Symbol Destination D30-1 P2+ Front passenger airbag assembly (Front passenger side squib 2nd step) D30-2 P2- Front passenger airbag assembly (Front passenger side squib 2nd step) D30-3 P- Front passenger airbag assembly (Front passenger side squib) D30-4 P+ Front passenger airbag assembly (Front passenger side squib) D30-5 D+ Steering pad (Driver side squib) D30-6 D- Steering pad (Driver side squib) D30-7 D2- Steering pad (Driver side squib 2nd step) D30-8 D2+ Steering pad (Driver side squib 2nd step) D30-9 DK+ Driver side knee airbag assembly (Driver side knee airbag squib) D30-10 DK- Driver side knee airbag assembly (Driver side knee airbag squib) D30-13 CANH CAN communication line D30-17 P-AB Navigation receiver assembly (w/ Navigation system) Integration control and panel assembly (w/o Navigation system) D30-21 IG2 IGN fuse D30-22 CANL CAN communication line D30-23 PAON Navigation receiver assembly (w/ Navigation system) Integration control and panel assembly (w/o Navigation system) D30-25 E1 Ground D30-26 E2 Ground D30-27 -SR Front airbag sensor RH D30-28 -SL Front airbag sensor LH D30-29 +SR Front airbag sensor RH D30-30 +SL Front airbag sensor LH O1-1 SFL+ Front seat side airbag assembly LH (Side squib LH) O1-2 SFL- Front seat side airbag assembly LH (Side squib LH) O1-3 ICL- Curtain shield airbag assembly LH (Curtain shield squib LH) O1-4 ICL+ Curtain shield airbag assembly LH (Curtain shield squib LH) O1-5 PL+ Front seat outer belt assembly LH (Front pretensioner squib LH) O1-6 PL- Front seat outer belt assembly LH (Front pretensioner squib LH) O1-9 LSP+ Seat position airbag sensor O1-10 LBE+ Front seat inner belt assembly LH (Seat belt buckle switch LH) O1-17 LSP- Seat position airbag sensor O1-18 LBE- Front seat inner belt assembly LH (Seat belt buckle switch LH) O1-23 BBL- Side airbag sensor LH (for Rear side) O1-24 BBL+ Side airbag sensor LH (for Rear side) N1-3 PR- Front seat outer belt assembly RH (Front pretensioner squib RH) N1-4 PR+ Front seat outer belt assembly RH (Front pretensioner squib RH) N1-5 ICR+ Curtain shield airbag assembly RH (Curtain shield squib RH) N1-6 ICR- Curtain shield airbag assembly RH (Curtain shield squib RH) N1-7 SFR- Front seat side airbag assembly RH (Side squib RH) N1-8 SFR+ Front seat side airbag assembly RH (Side squib RH) N1-16 FSR+ Occupant classification ECU N1-17 BBR+ Side airbag sensor RH (for Rear side) N1-18 BBR- Side airbag sensor RH (for Rear side) N1-24 FSR- Occupant classification ECU
