Fuel Pump Resistor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

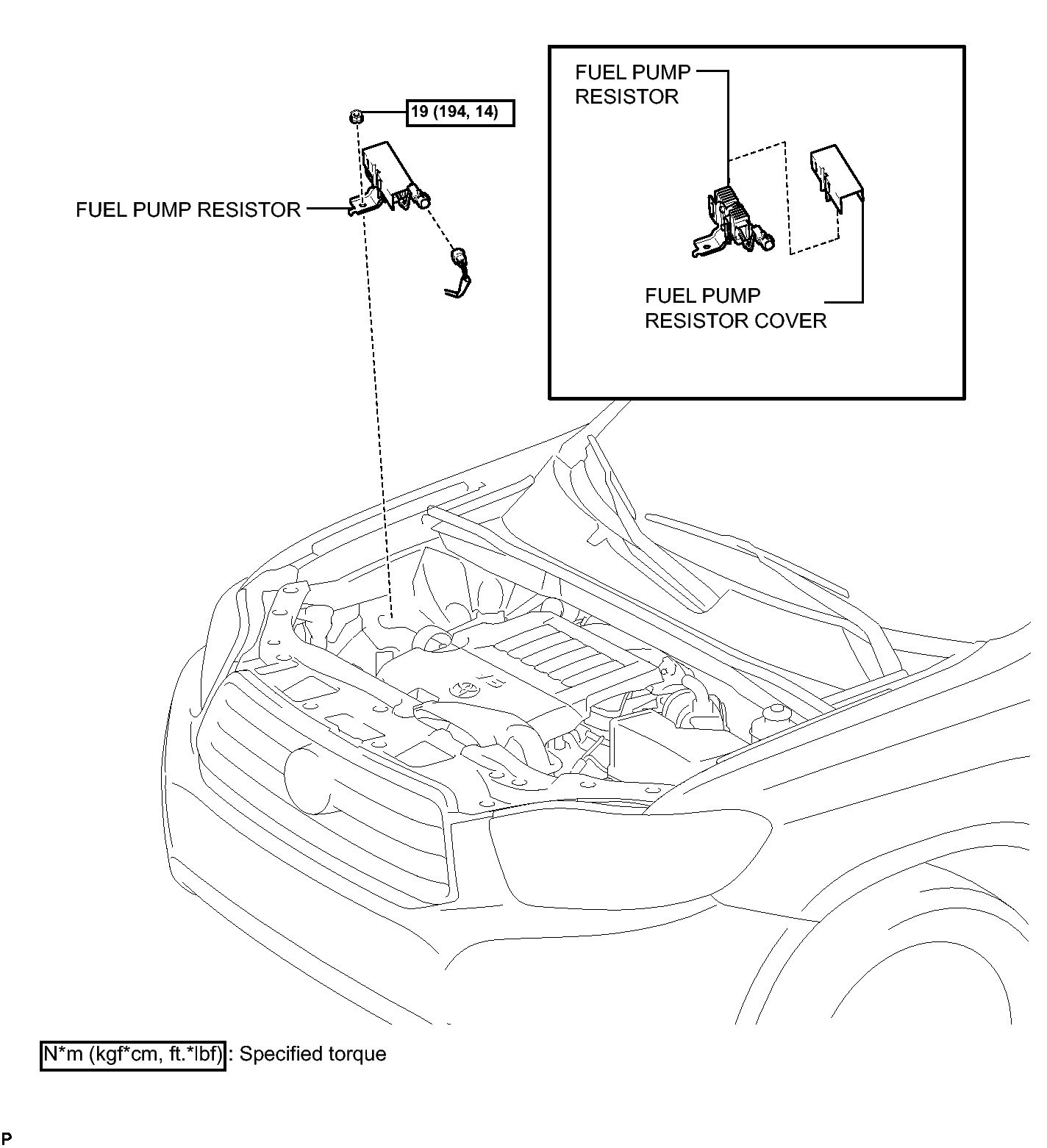

Fig 1: Fuel Pump Resistor Replacement Components With Torque Specifications
GTY193854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
