Rear Console Box: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/ Smart Key System)  . Refer to REMOVAL - Step 14
  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/o Smart Key System)  . Refer to REMOVAL - Step 13
  3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 27
  4. REMOVE NO. 2 CONSOLE BOX DUCT (w/o Rear Air Conditioning System)  . Refer to REMOVAL - Step 28
  5. REMOVE LOWER REAR CONSOLE BOX
    1. Remove the lower rear console box.
  6. REMOVE CONSOLE BOX ASSEMBLY (w/o Rear Air Conditioning System)
    1. Remove the 4 bolts and 2 screws.

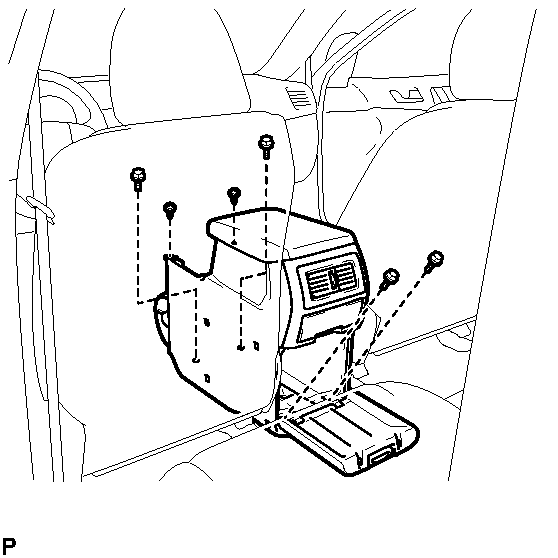

      Fig 1: Identifying Console Box Assembly With Bolts And Screws (W/O Rear Air Conditioning System)
      GTY199311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 claws and remove the console box assembly.

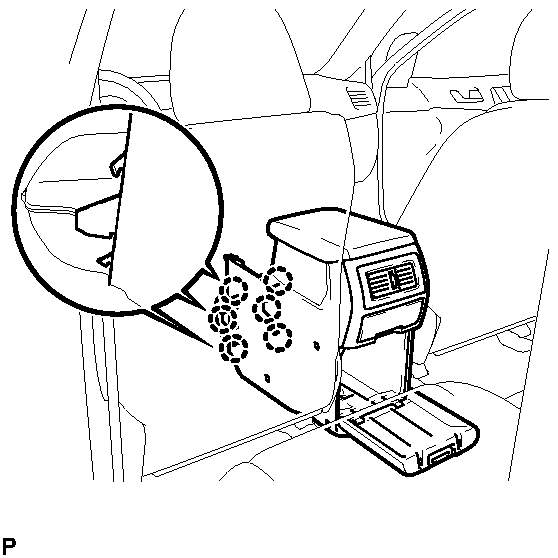

      Fig 2: Identifying Claws On Console Box Assembly
      GTY199312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CONSOLE BOX ASSEMBLY (w/ Rear Air Conditioning System)
    1. Remove the 4 bolts and 2 screws.
      Fig 3: Identifying Console Box Assembly With Bolts And Screws (W/ Rear Air Conditioning System)
      GTY170852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
      Fig 4: Identifying Console Box Assembly Claws (With Rear Air Conditioning System)
      GTY172344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 6 claws, and remove the console box assembly.
