Rear Console Box: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

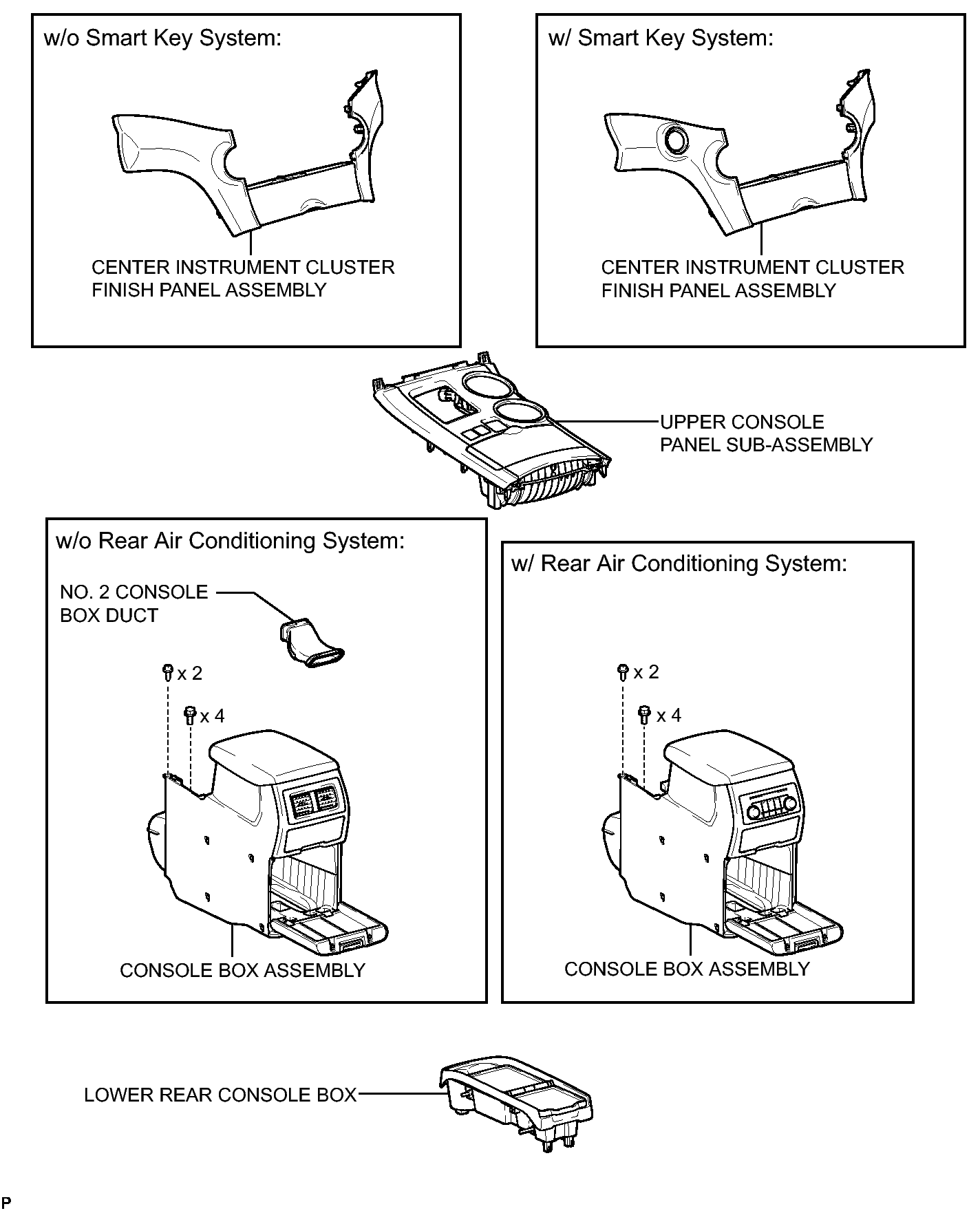

Fig 1: Identifying Rear Console Box Replacement Components (1 Of 4)
GTY199550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

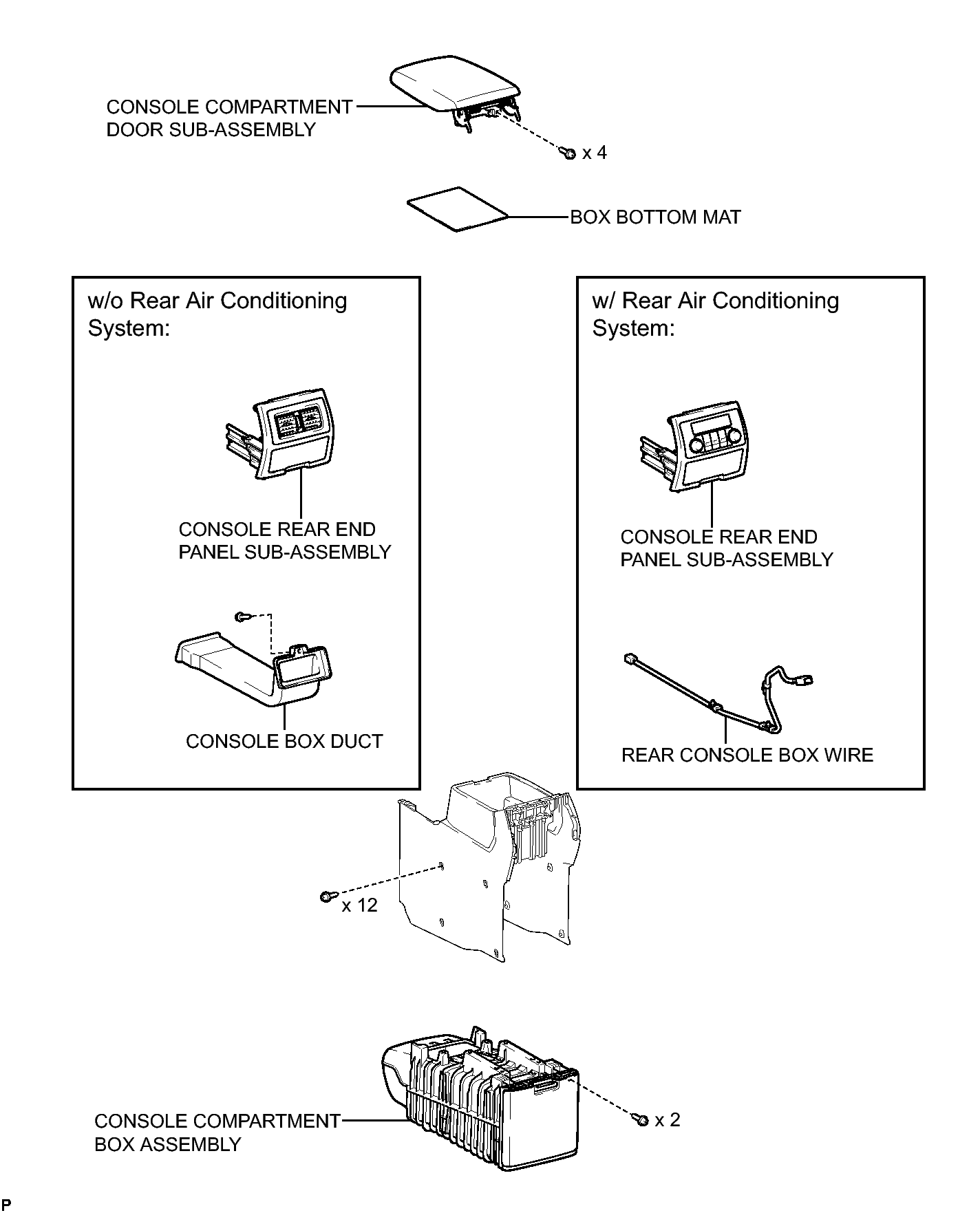

Fig 1: Identifying Rear Console Box Components (2 Of 4)
GTY179175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

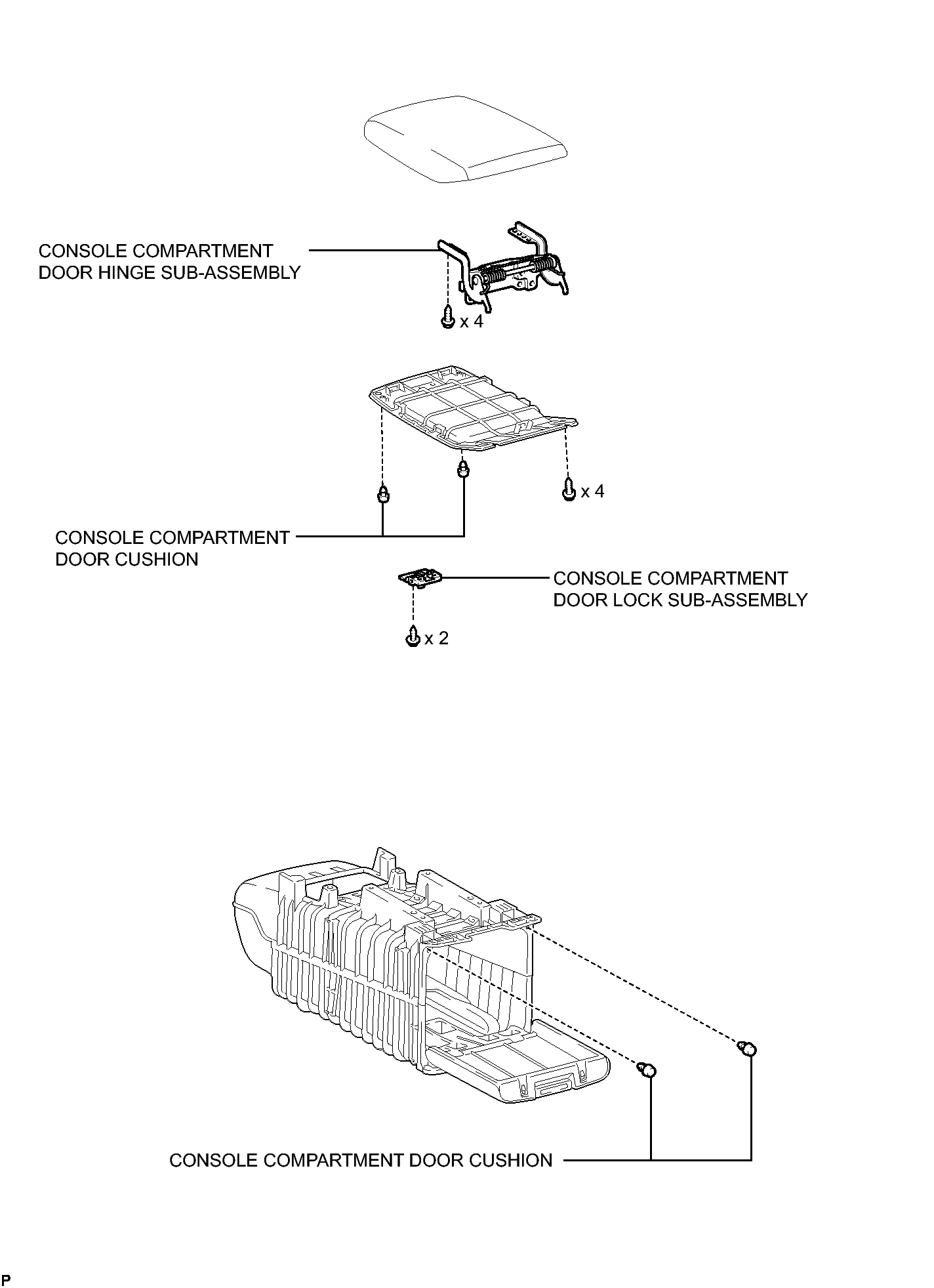

Fig 1: Identifying Rear Console Box Components (3 Of 4)
GTY170719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

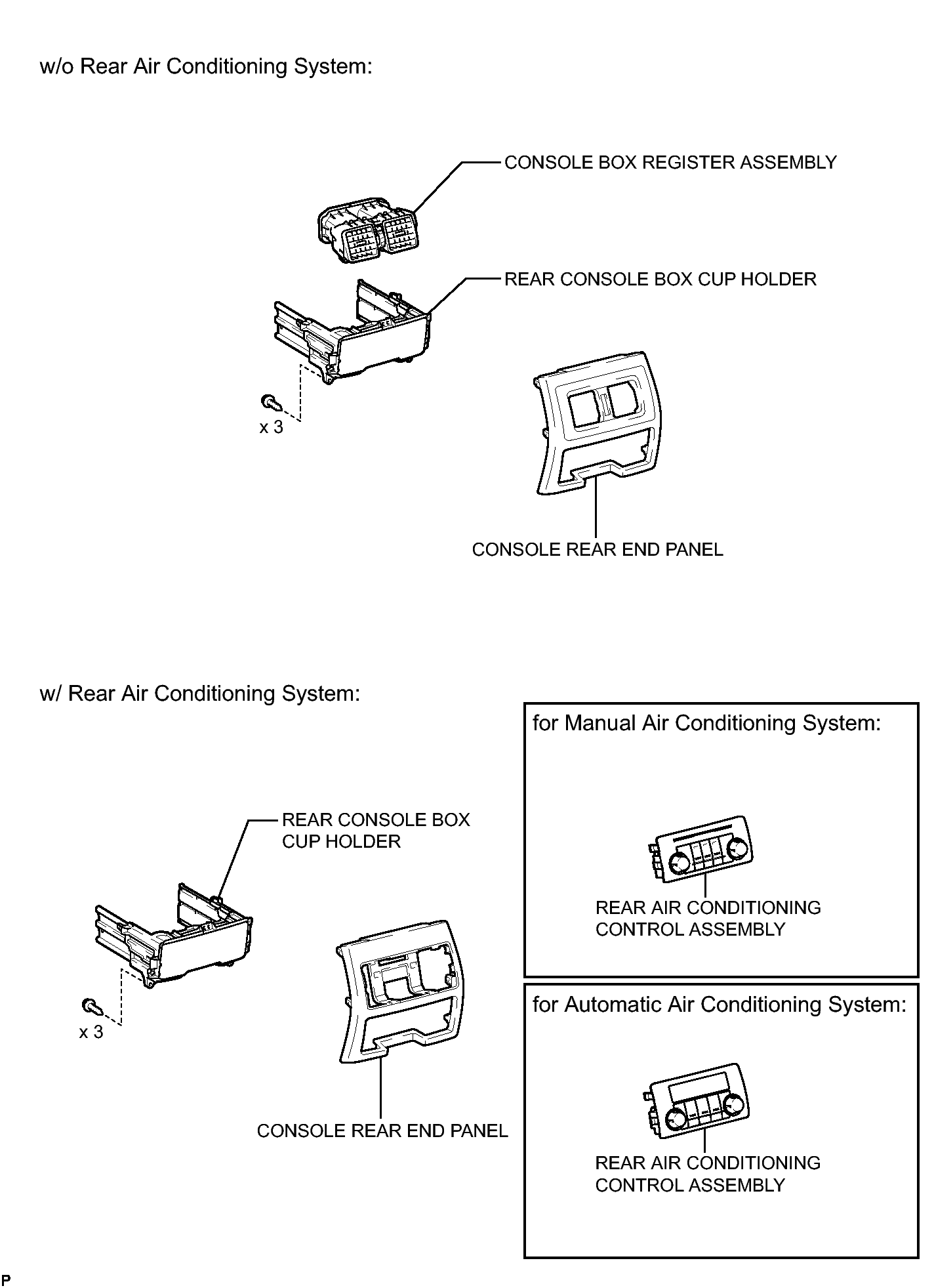

Fig 1: Identifying Rear Console Box Components (4 Of 4)
GTY199310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
