Fuel Lid Lock Control: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

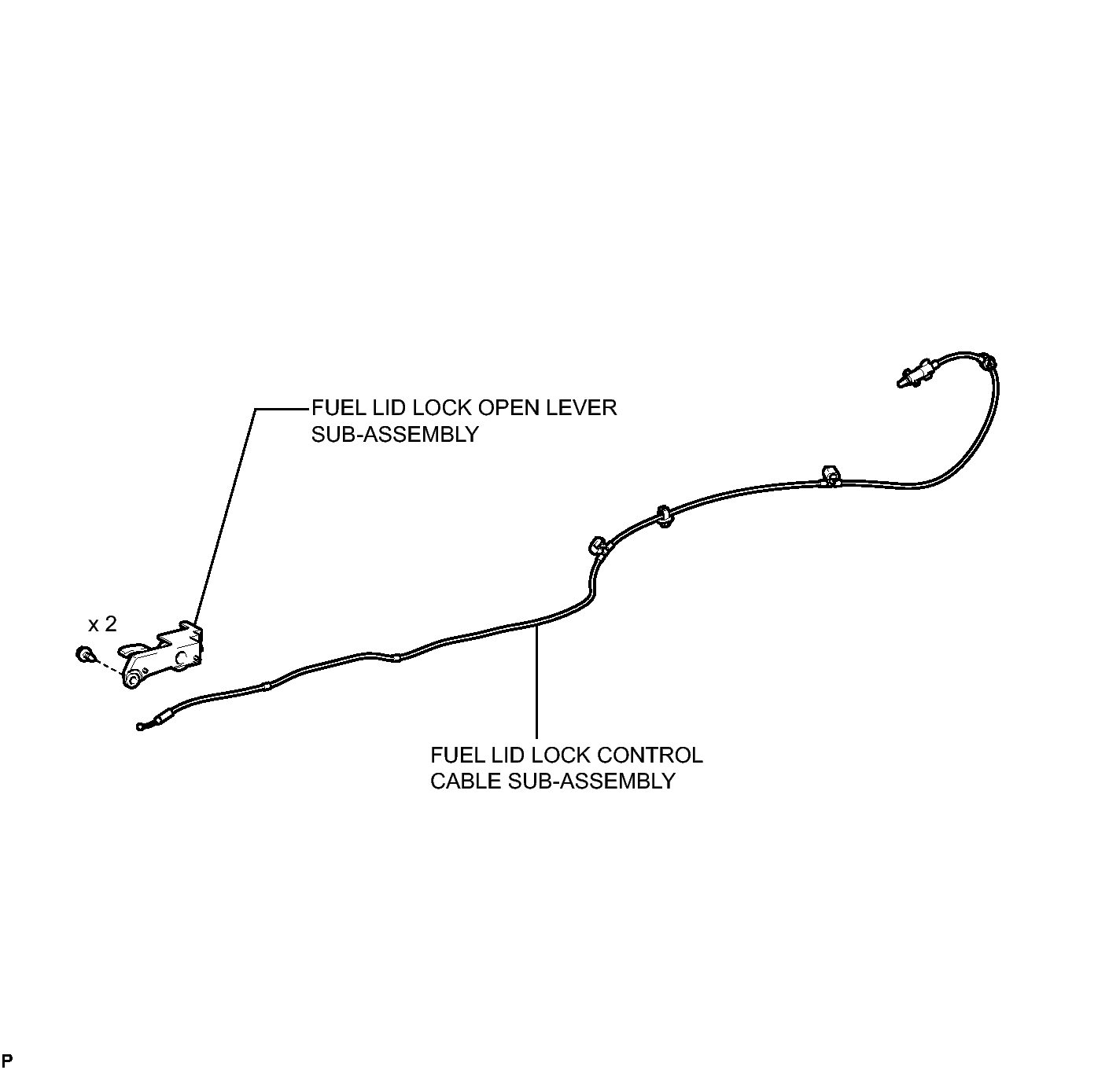

Fig 1: Identifying Fuel Lid Lock Control Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

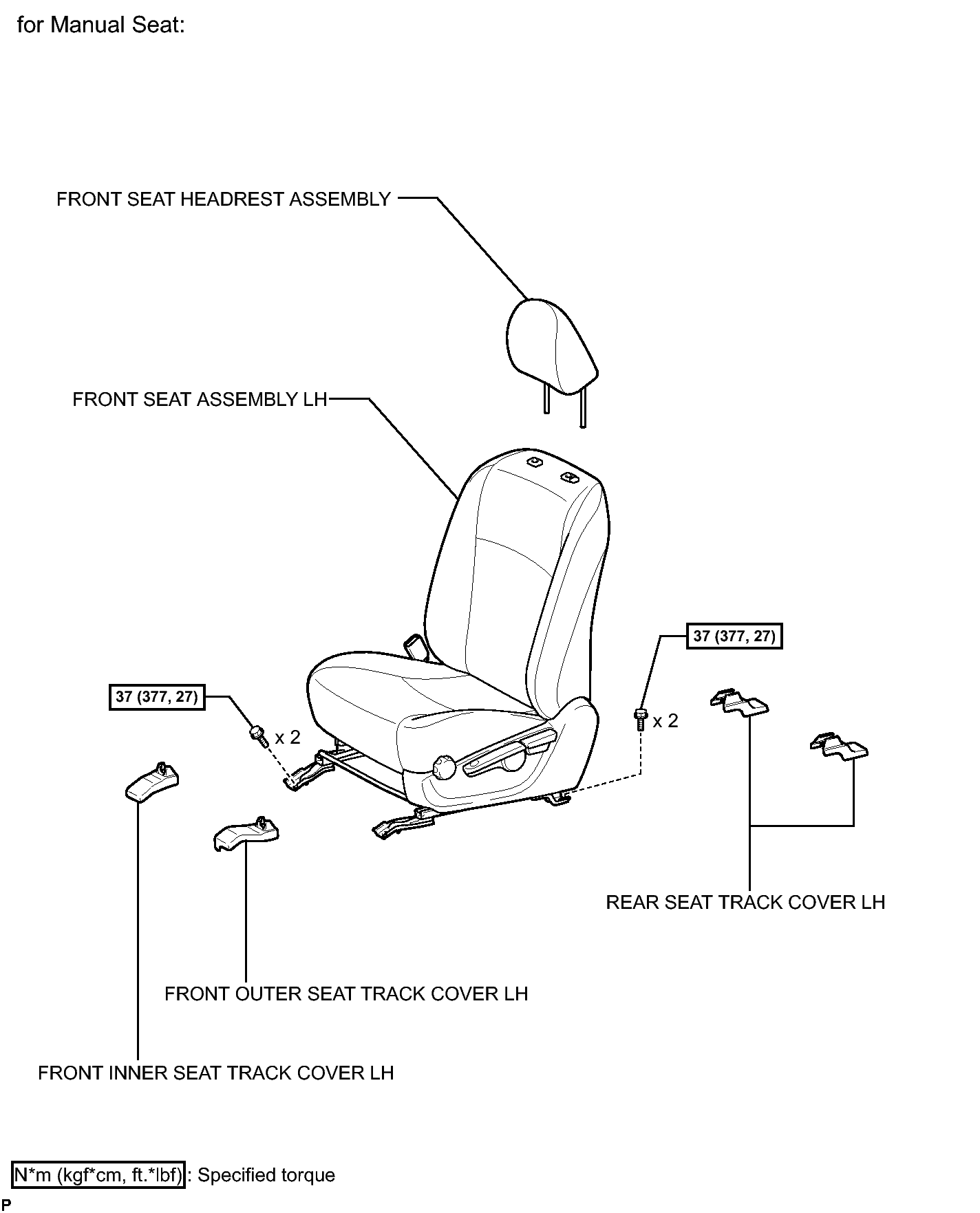

Fig 1: Identifying Fuel Lid Lock Control Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Fuel Lid Lock Control Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

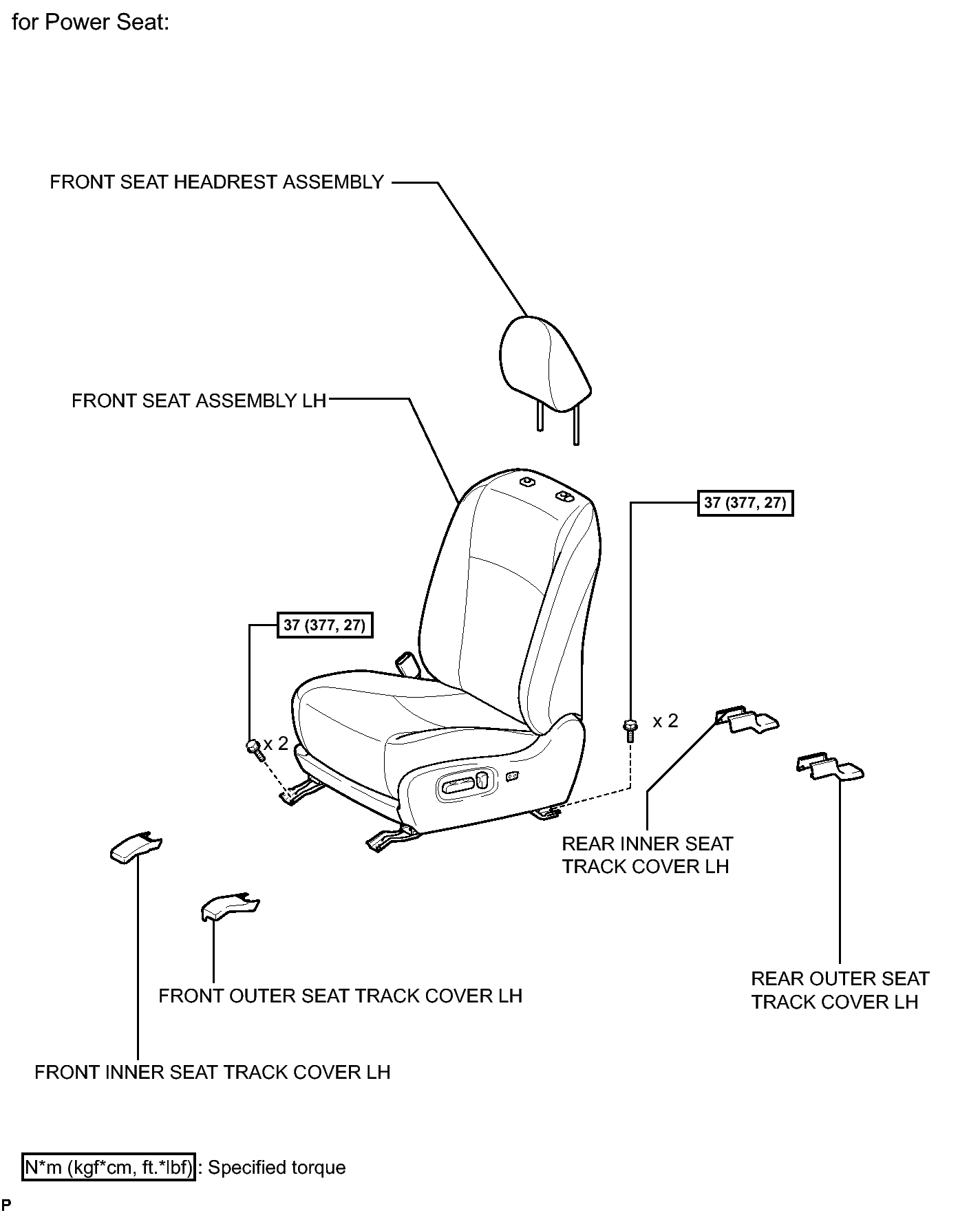

Fig 1: Identifying Fuel Lid Lock Control Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

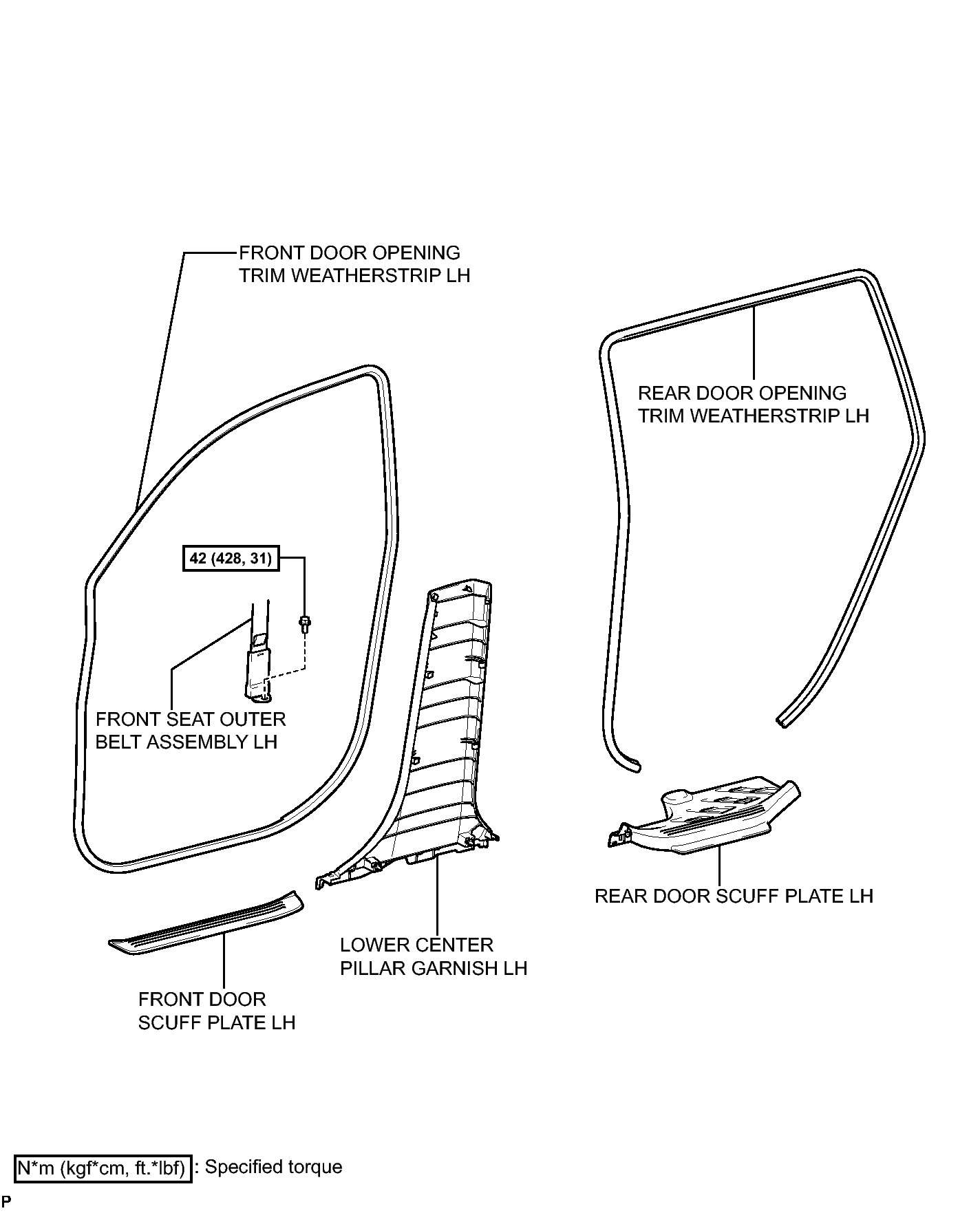

Fig 1: Identifying Fuel Lid Lock Control Replacement Components With Torque Specification (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Fuel Lid Lock Control Replacement Components (5 Of 8)

Fig 1: Identifying Fuel Lid Lock Control Replacement Components With Torque Specifications (6 Of 8)

Fig 1: Identifying Fuel Lid Lock Control Replacement Components With Torque Specifications (7 Of 8)

Fig 1: Identifying Fuel Lid Lock Control Replacement Components (8 Of 8)
