Section 53 (Brake Control System (Service Information))
>>
Yaw Rate And Acceleration Sensor
>>
Components
>>
Illustration
Yaw Rate And Acceleration Sensor: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

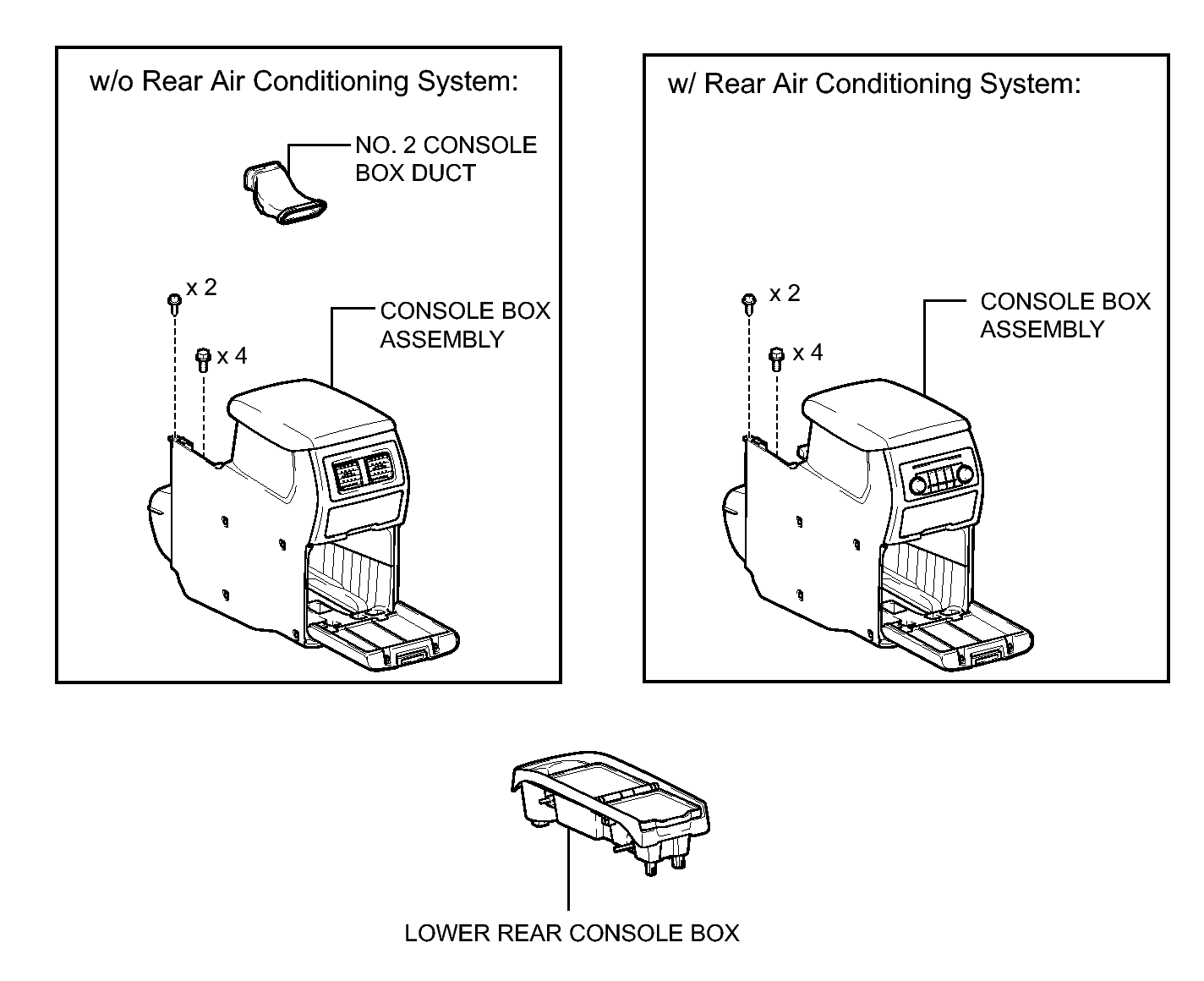

Fig 1: Identifying Yaw Rate & Acceleration Sensor Replacement Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

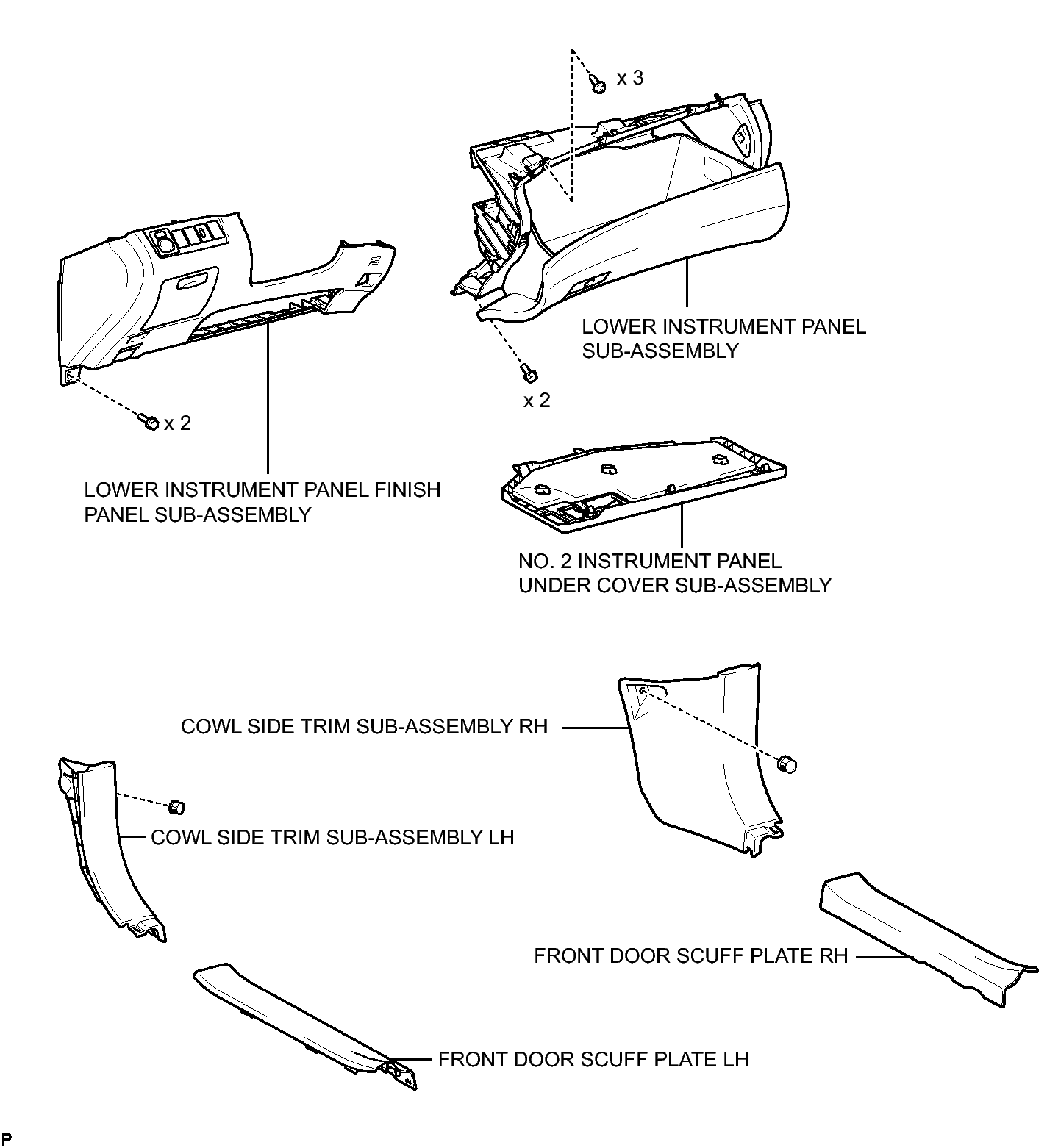

Fig 1: Identifying Yaw Rate & Acceleration Sensor Replacement Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

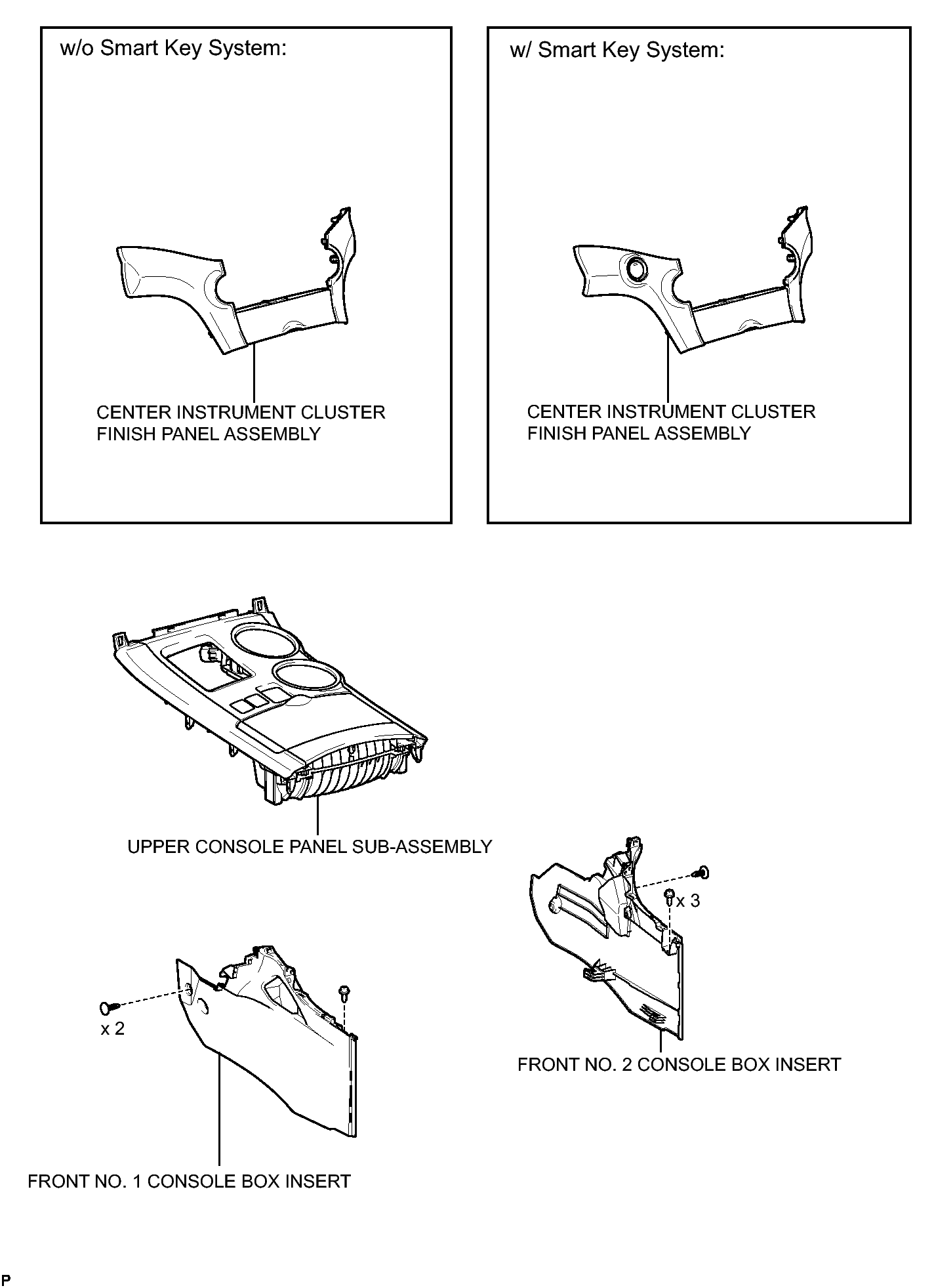

Fig 1: Identifying Yaw Rate & Acceleration Sensor Replacement Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

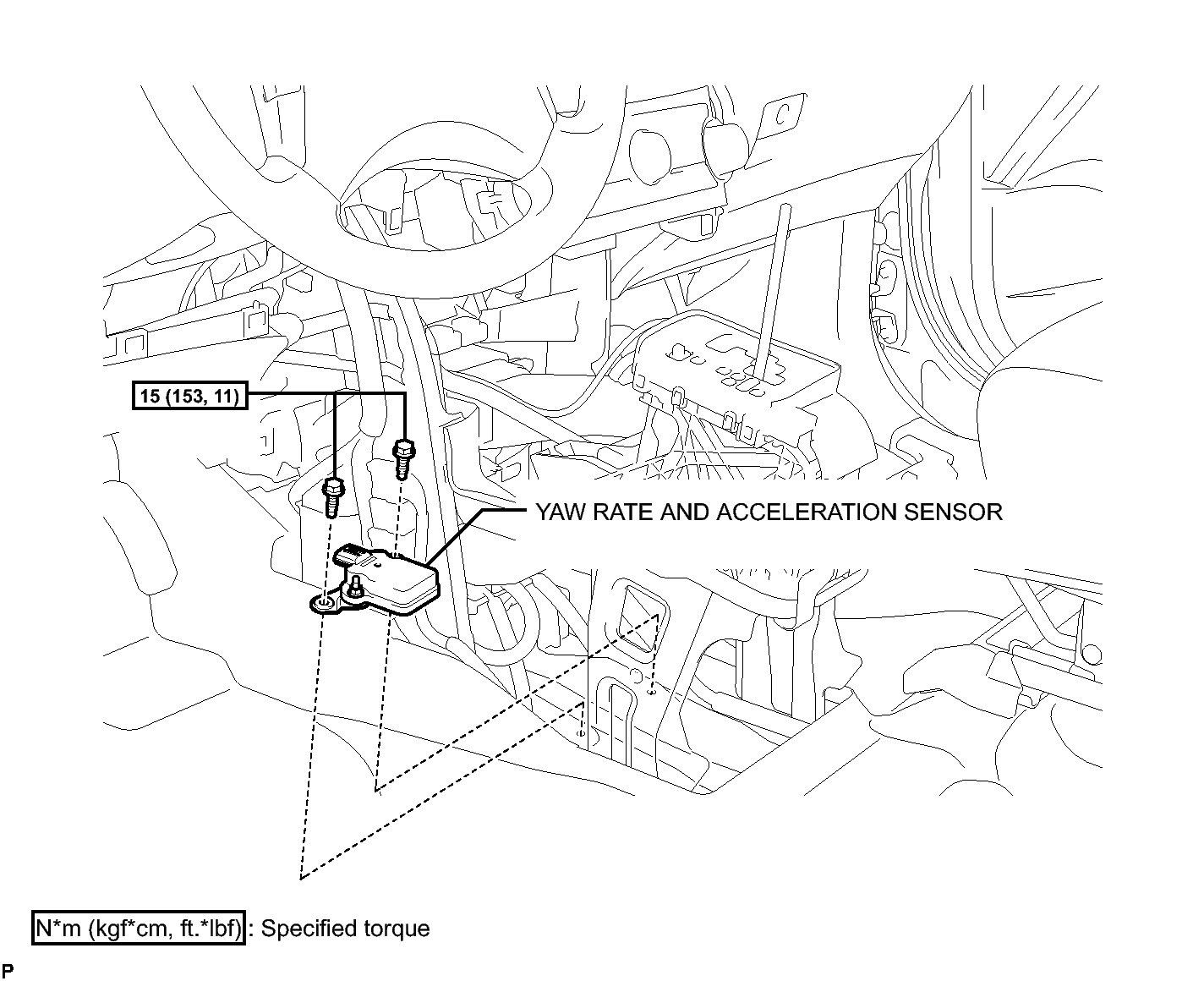

Fig 1: Identifying Yaw Rate & Acceleration Sensor Replacement Components With Torque Specification (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
