Brake Actuator: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

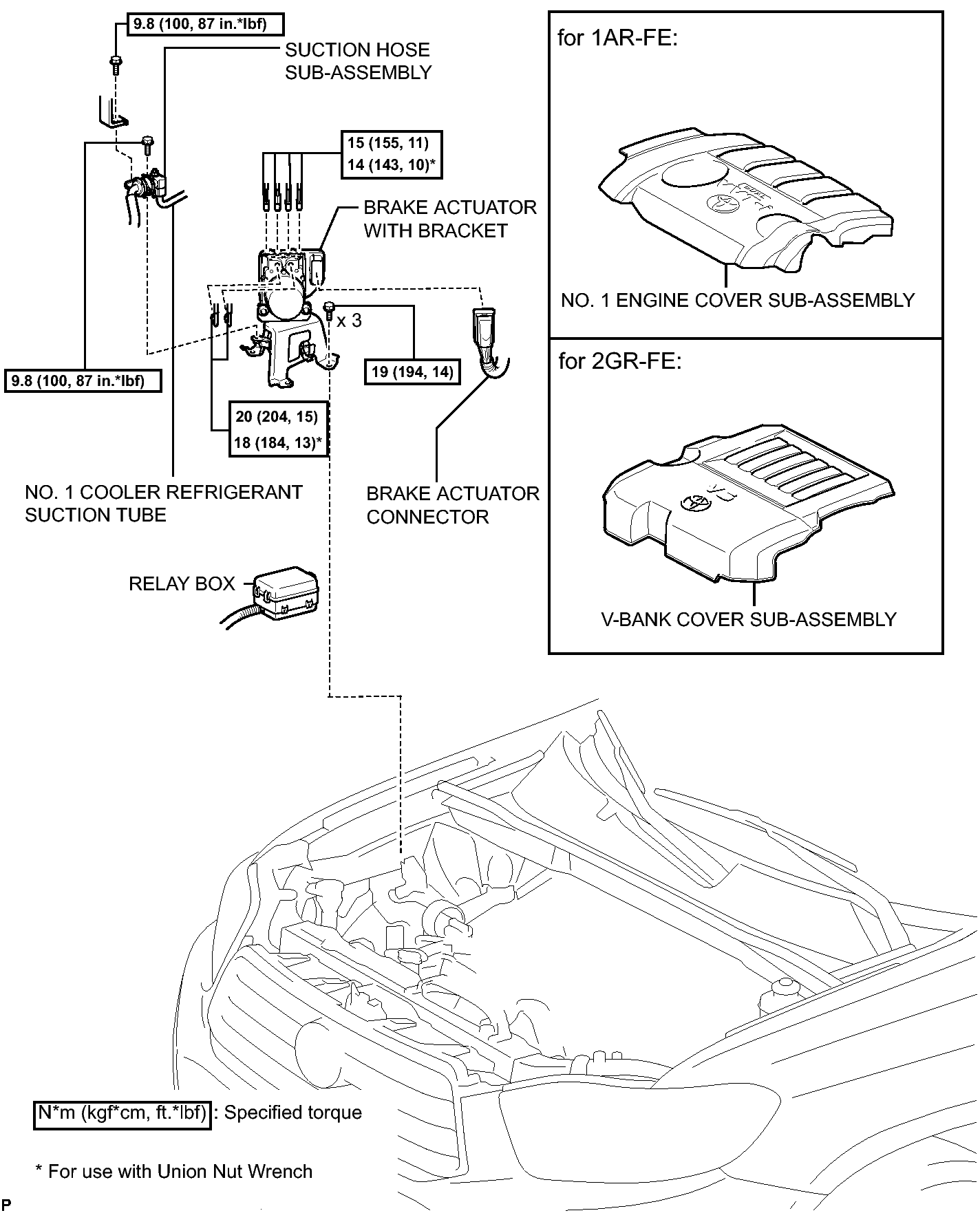

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specification (1 Of 2)
GTY205655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

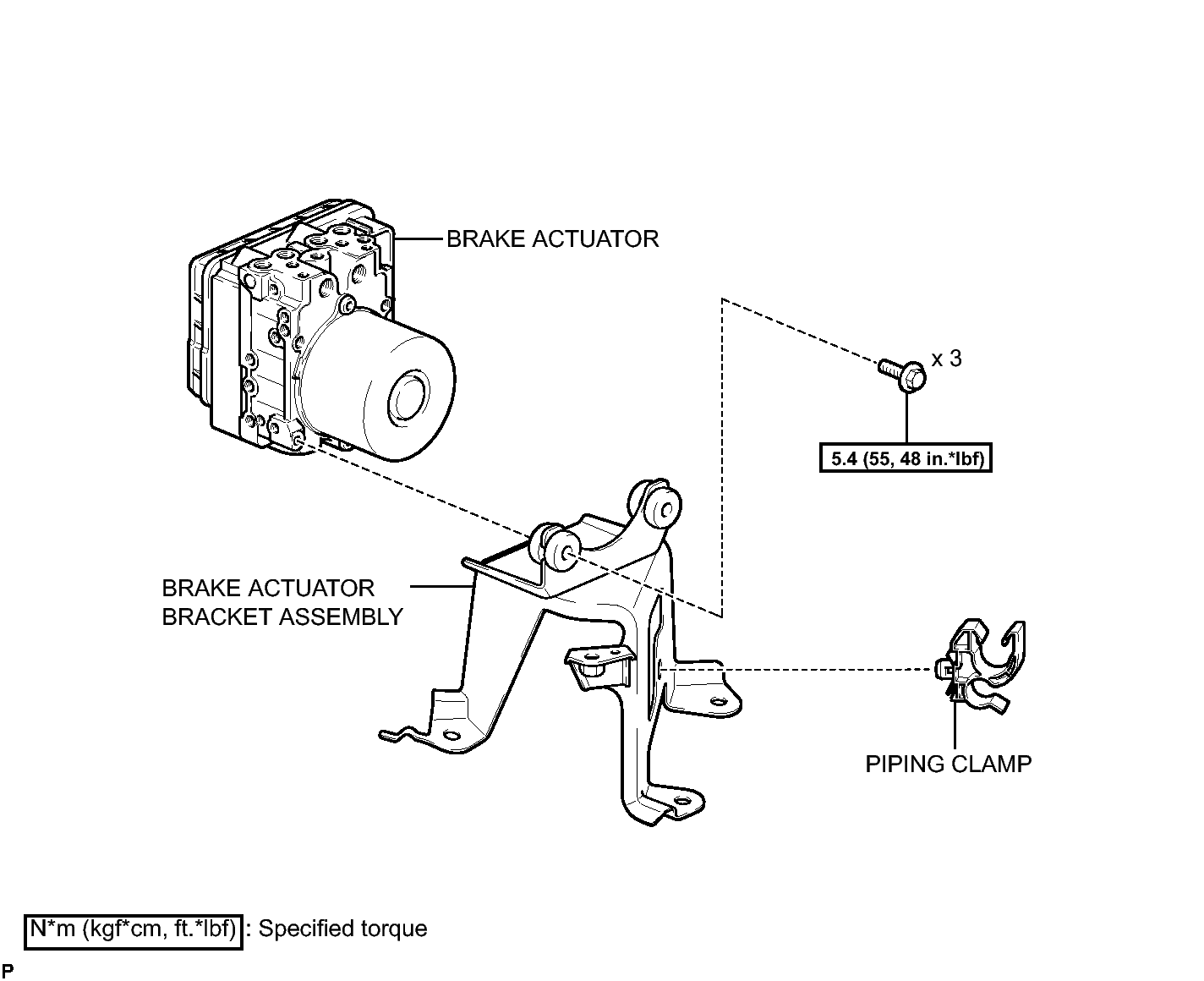

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specification (2 Of 2)
GTY204763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
