Rear Center Seat Inner Belt Assembly: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL REAR CENTER SEAT INNER BELT ASSEMBLY
    1. Install the rear center seat inner belt assembly with the bolt.

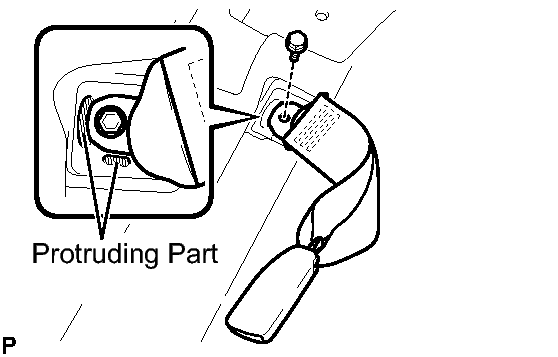

      Fig 1: Identifying Rear Center Seat Inner Belt Assembly Bolt
      GTY172474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the rear center seat inner belt assembly to overlap the protruding part of the floor panel.

  2. INSTALL REAR NO. 1 SEAT ASSEMBLY  . Refer to INSTALLATION - Step 1
  3. CONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (w/ Remote Folding Function)  . Refer to INSTALLATION - Step 2
  4. INSPECT REAR SEAT SLIDE ADJUSTER LOCK  . Refer to INSTALLATION - Step 3
  5. INSTALL REAR SEAT LEG SIDE COVER  . Refer to INSTALLATION - Step 4
  6. INSTALL REAR INNER TRACK BRACKET COVER  . Refer to INSTALLATION - Step 5
  7. INSTALL REAR OUTER TRACK BRACKET COVER  . Refer to INSTALLATION - Step 6
  8. INSTALL REAR SEAT TRACK BRACKET COVER  . Refer to INSTALLATION - Step 7
  9. INSTALL REAR SEAT HEADREST ASSEMBLY  . Refer to INSTALLATION - Step 8
