Shift Solenoid Valve: Inspection: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT SHIFT SOLENOID VALVE SL
    1. Measure the resistance according to the value(s) in the table below.

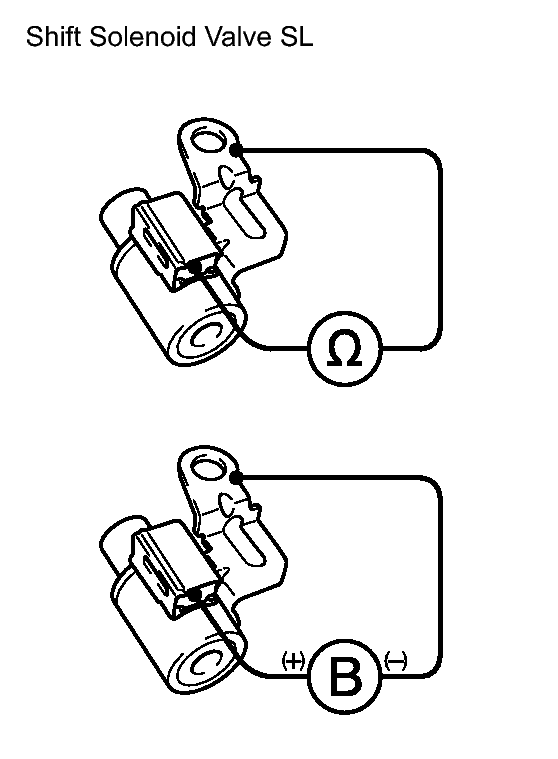

      Fig 1: Inspecting Shift Solenoid Valve SL
      GTY205347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD RESISTANCE

      Tester Connection Specified Condition
      20°C (68°F)
      Solenoid Connector (SL) - Solenoid Body (SL) 11 to 15 Ω

      If the value is not as specified, replace the shift solenoid valve.

    2. Connect a positive (+) lead from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

      OK

      The solenoid makes an operating noise.

      If the result is not as specified, replace the shift solenoid valve.

  2. INSPECT SHIFT SOLENOID VALVE SLT
    1. Measure the resistance according to the value(s) in the table below.

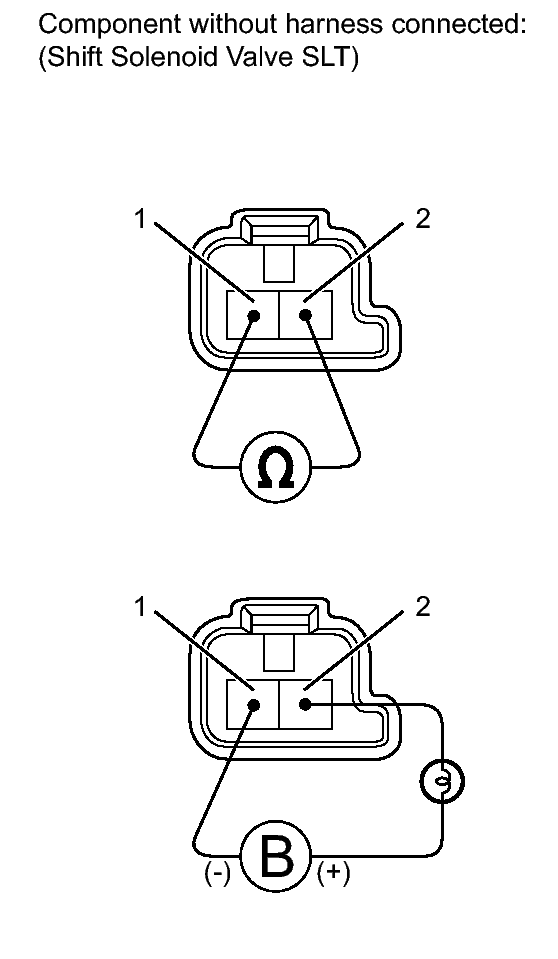

      Fig 2: Inspecting Shift Solenoid Valve SLT
      GTY178672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD RESISTANCE

      Tester Connection Specified Condition
      20°C (68°F)
      1 - 2 5.0 to 5.6 Ω

      If the value is not as specified, replace the shift solenoid valve.

    2. Connect a positive (+) lead with a 21 W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

      OK

      The solenoid makes an operating noise.

      If the result is not as specified, replace the shift solenoid valve.

  3. INSPECT SHIFT SOLENOID VALVE SLU
    1. Measure the resistance according to the value(s) in the table below.
      Fig 3: Inspecting Shift Solenoid Valve SLU
      GTY178663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD RESISTANCE

      Tester Connection Specified Condition
      20°C (68°F)
      1 - 2 5.0 to 5.6 Ω

      If the value is not as specified, replace the shift solenoid valve.

    2. Connect a positive (+) lead with a 21 W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

      OK

      The solenoid makes an operating noise.

      If the result is not as specified, replace the shift solenoid valve.

  4. INSPECT SHIFT SOLENOID VALVE SL1
    1. Measure the resistance according to the value(s) in the table below.

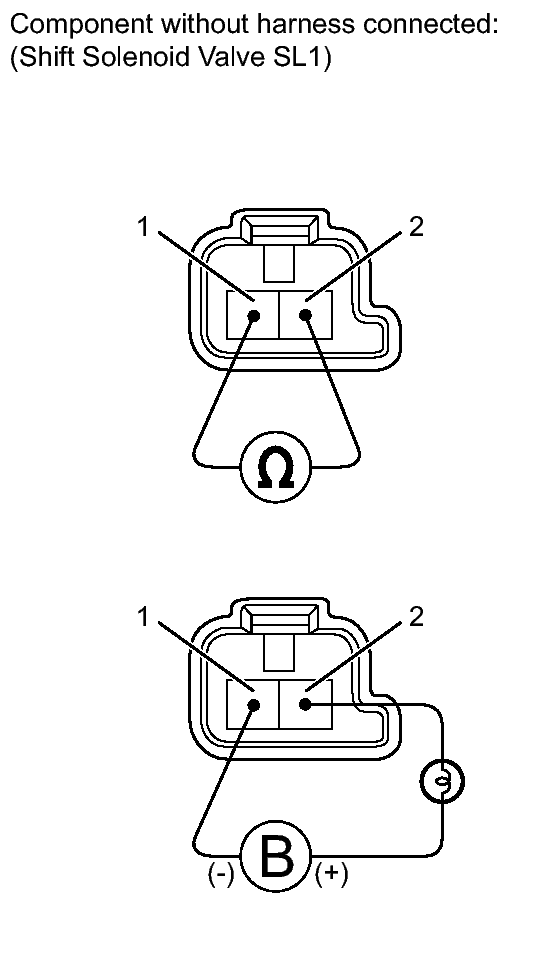

      Fig 4: Inspecting Shift Solenoid Valve SL1
      GTY178661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD RESISTANCE

      Tester Connection Specified Condition
      20°C (68°F)
      1 - 2 5.0 to 5.6 Ω

      If the value is not as specified, replace the shift solenoid valve.

    2. Connect a positive (+) lead with a 21 W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

      OK

      The solenoid makes an operating noise.

      If the result is not as specified, replace the shift solenoid valve.

  5. INSPECT SHIFT SOLENOID VALVE SL2
    1. Measure the resistance according to the value(s) in the table below.

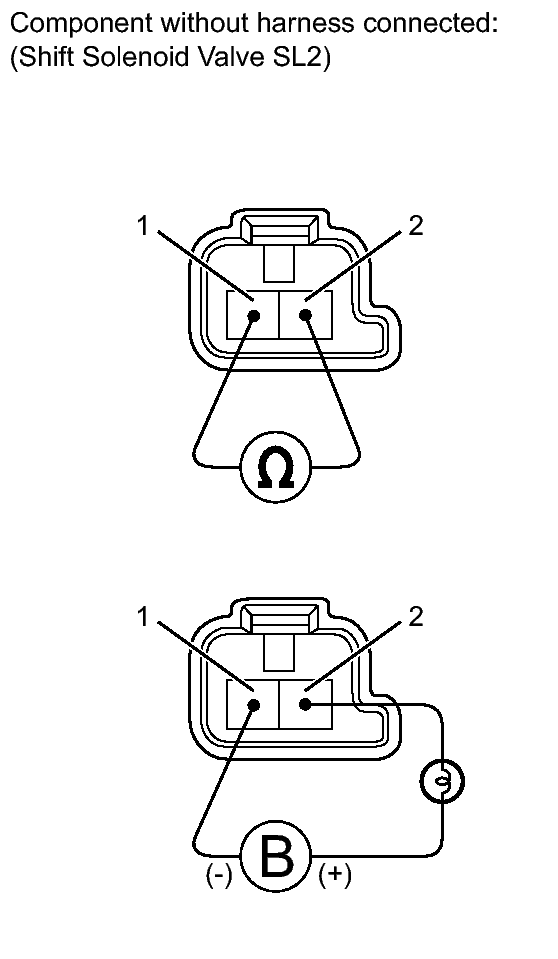

      Fig 5: Inspecting Shift Solenoid Valve SL2
      GTY203112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD RESISTANCE

      Tester Connection Specified Condition
      20°C (68°F)
      1 - 2 5.0 to 5.6 Ω

      If the value is not as specified, replace the shift solenoid valve.

    2. Connect a positive (+) lead with a 21 W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

      OK

      The solenoid makes an operating noise.

      If the result is not as specified, replace the shift solenoid valve.

  6. INSPECT SHIFT SOLENOID VALVE SL3
    1. Measure the resistance according to the value(s) in the table below.
      Fig 6: Inspecting Shift Solenoid Valve SL3
      GTY189193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD RESISTANCE

      Tester Connection Specified Condition
      20°C (68°F)
      1 - 2 5.0 to 5.6 Ω

      If the value is not as specified, replace the shift solenoid valve.

    2. Connect a positive (+) lead with a 21 W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

      OK

      The solenoid makes an operating noise.

      If the result is not as specified, replace the shift solenoid valve.

  7. INSPECT SHIFT SOLENOID VALVE SL4
    1. Measure the resistance according to the value(s) in the table below.
      Fig 7: Inspecting Shift Solenoid Valve Sl4
      GTY203113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD RESISTANCE

      Tester Connection Specified Condition
      20°C (68°F)
      1 - 2 5.0 to 5.6 Ω

      If the value is not as specified, replace the shift solenoid valve.

    2. Connect a positive (+) lead with a 21 W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

      OK

      The solenoid makes an operating noise.

      If the result is not as specified, replace the shift solenoid valve.
