Curtain Shield Airbag Assembly: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY
1. Check that the ignition switch is off.
2. Check that the cable is disconnected from the negative (-) battery terminal.
  WARNING:
  Wait for at least 90 seconds after disconnecting the cable to prevent airbag deployment.
3. Temporarily install the curtain shield airbag assembly to the body panel with the 11 hooks.
  NOTE:
  Do not twist the curtain shield airbag assembly when installing it.
4. Install 11 new bolts.
  Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

  HINT:

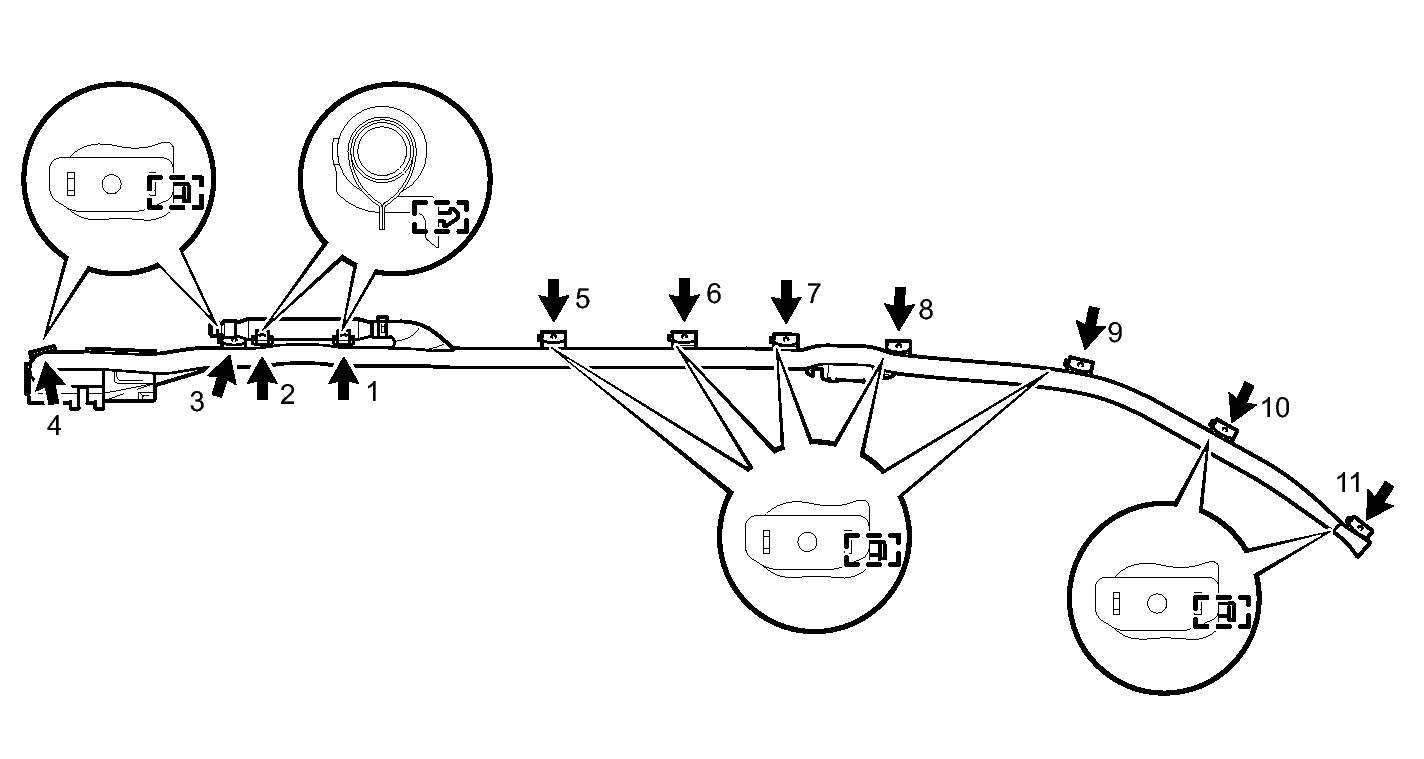

  Tighten the bolts in the order shown in the illustration.

  Fig 1: Locating Tightening Sequence Of Curtain Shield Airbag Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

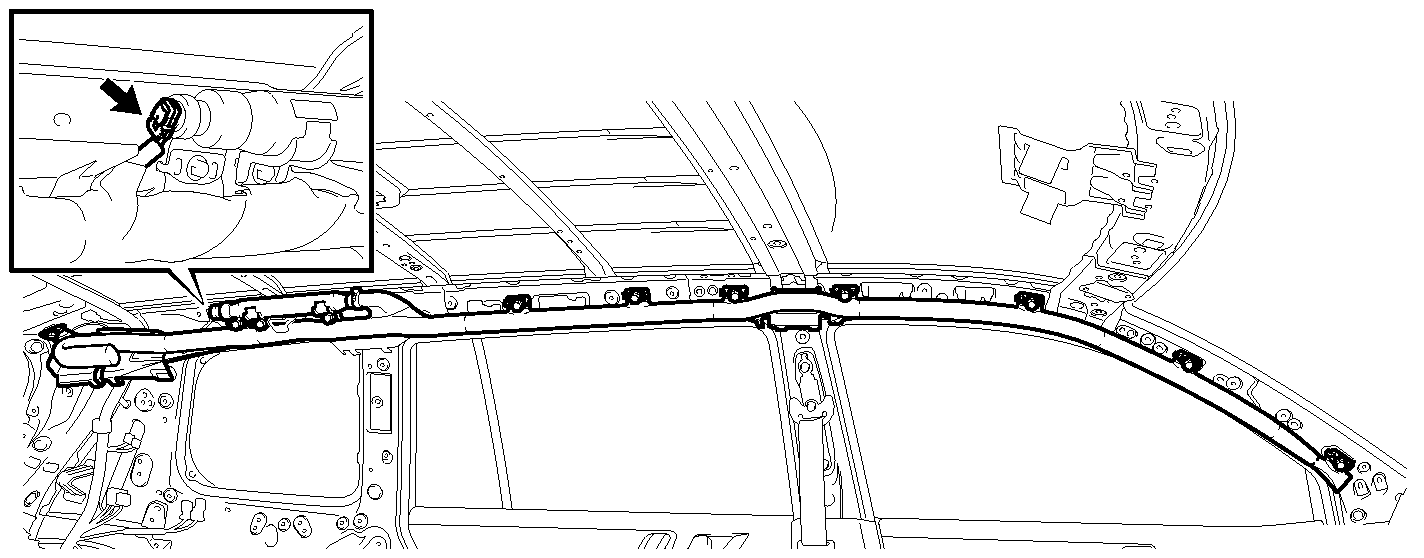

5. Connect the curtain shield airbag connector.
  NOTE:
  When handling the airbag connector, take care not to damage the airbag wire harness.

  Fig 2: Locating Curtain Shield Airbag Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING ASSEMBLY
Refer to INSTALLATION
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected, refer to INITIALIZATION .
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light, refer to DIAGNOSIS SYSTEM .
