Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

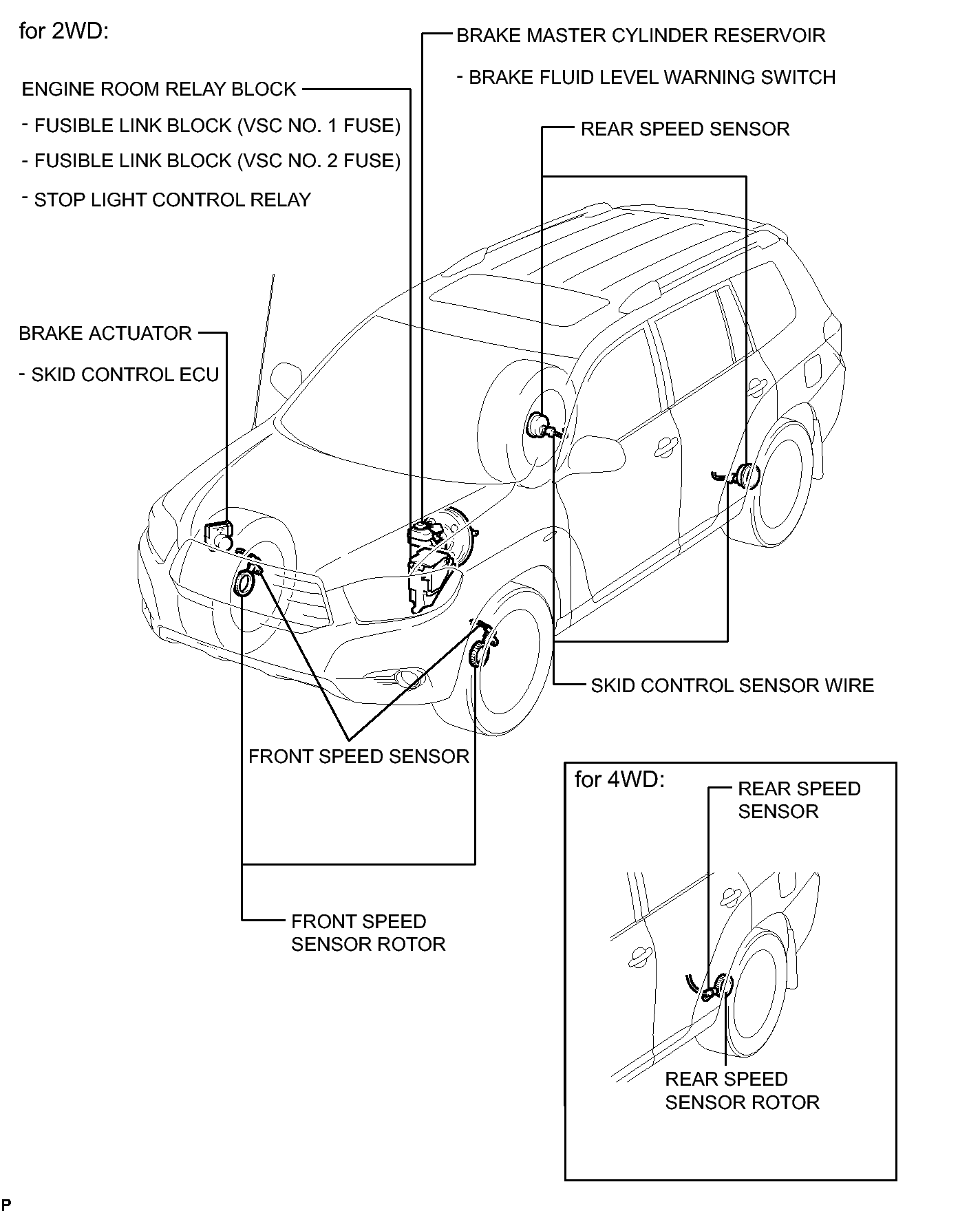

Fig 1: Identifying Vehicle Stability Control System Component Locations (1 Of 2)
GTY202993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

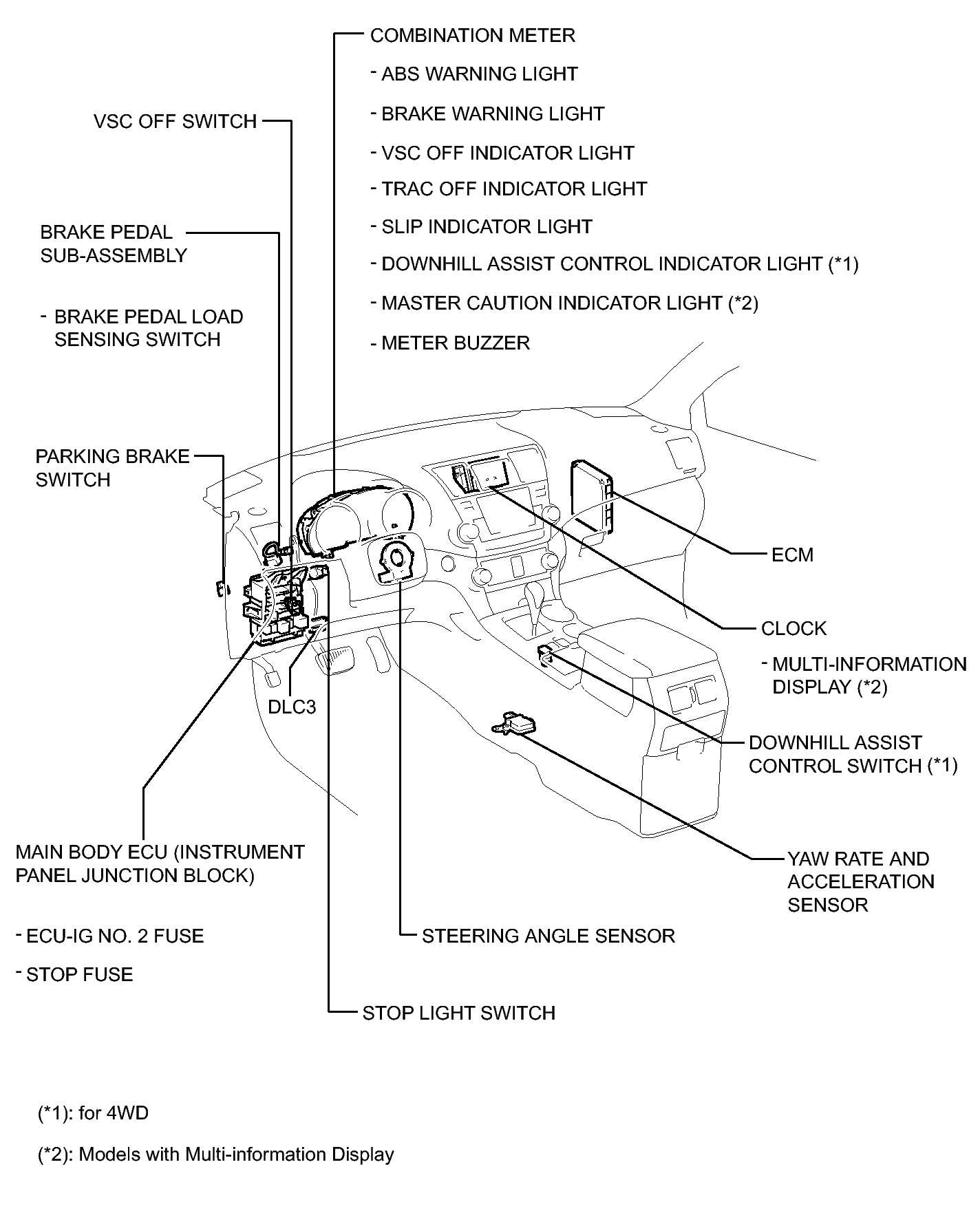

Fig 1: Identifying Vehicle Stability Control System Component Locations (2 Of 2)
GTY297787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
