Component Location: Illustration

WARNING: This page is about a different variant/trim than selected.

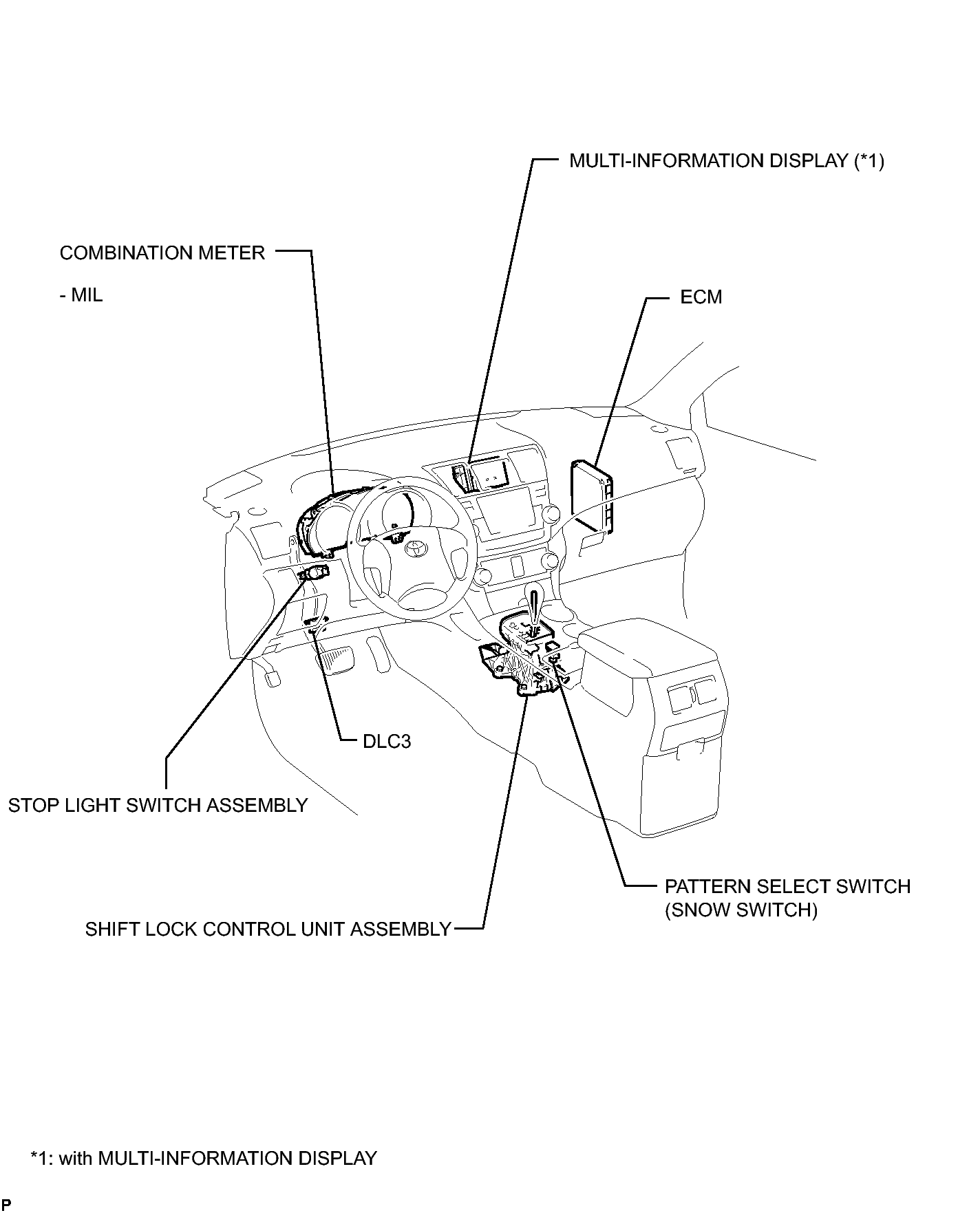

Fig 1: Identifying Automatic Transaxle System Components Location (1 Of 2)
GTY204350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

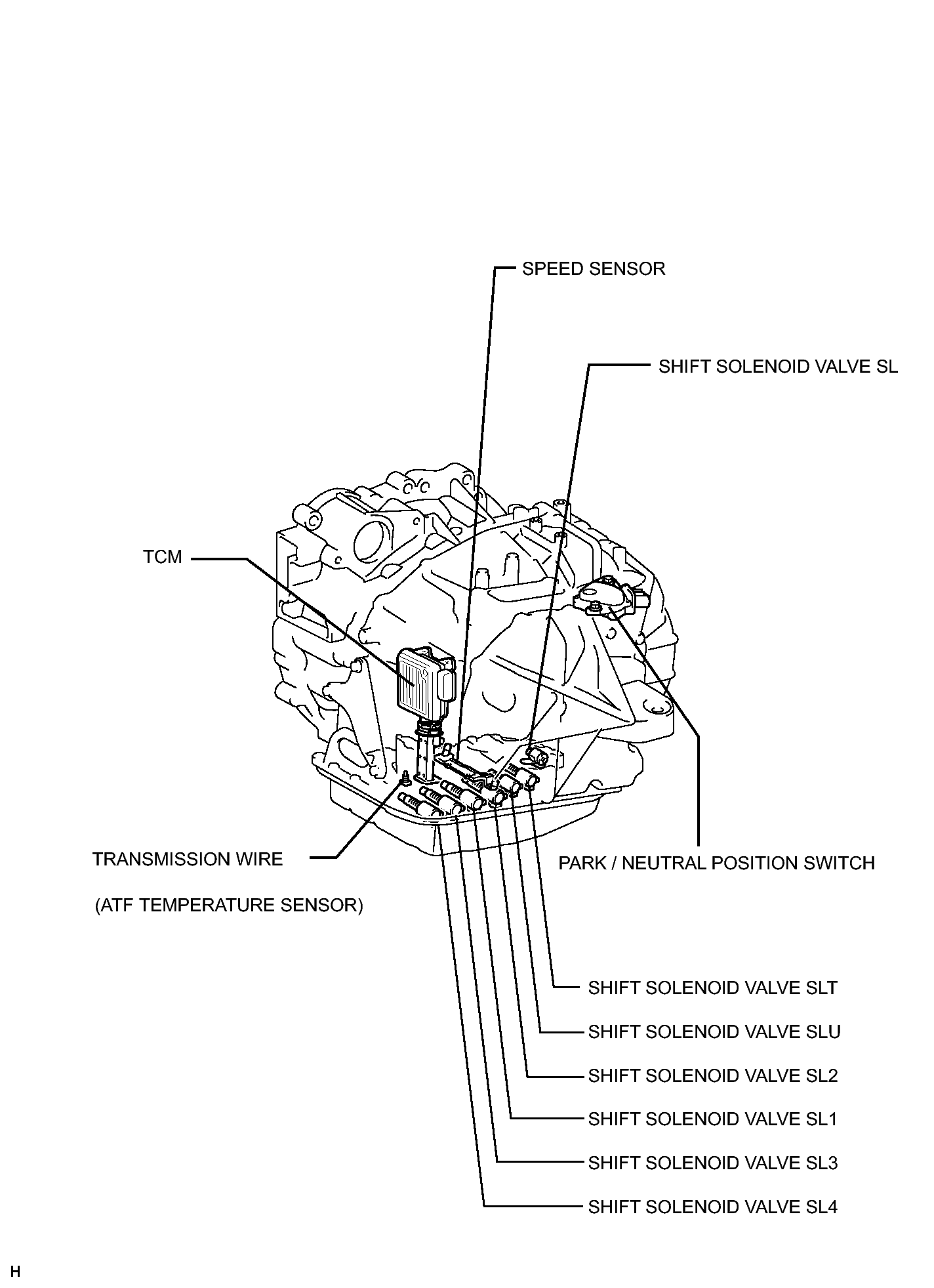

Fig 1: Identifying Automatic Transaxle System Components Location (2 Of 2)
GTY178992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
