Section 10 (Engine Control System (2GR-FE) (Diagnostics - Introduction))
>>
SFI System
>>
Parts Location
>>
Illustration
Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

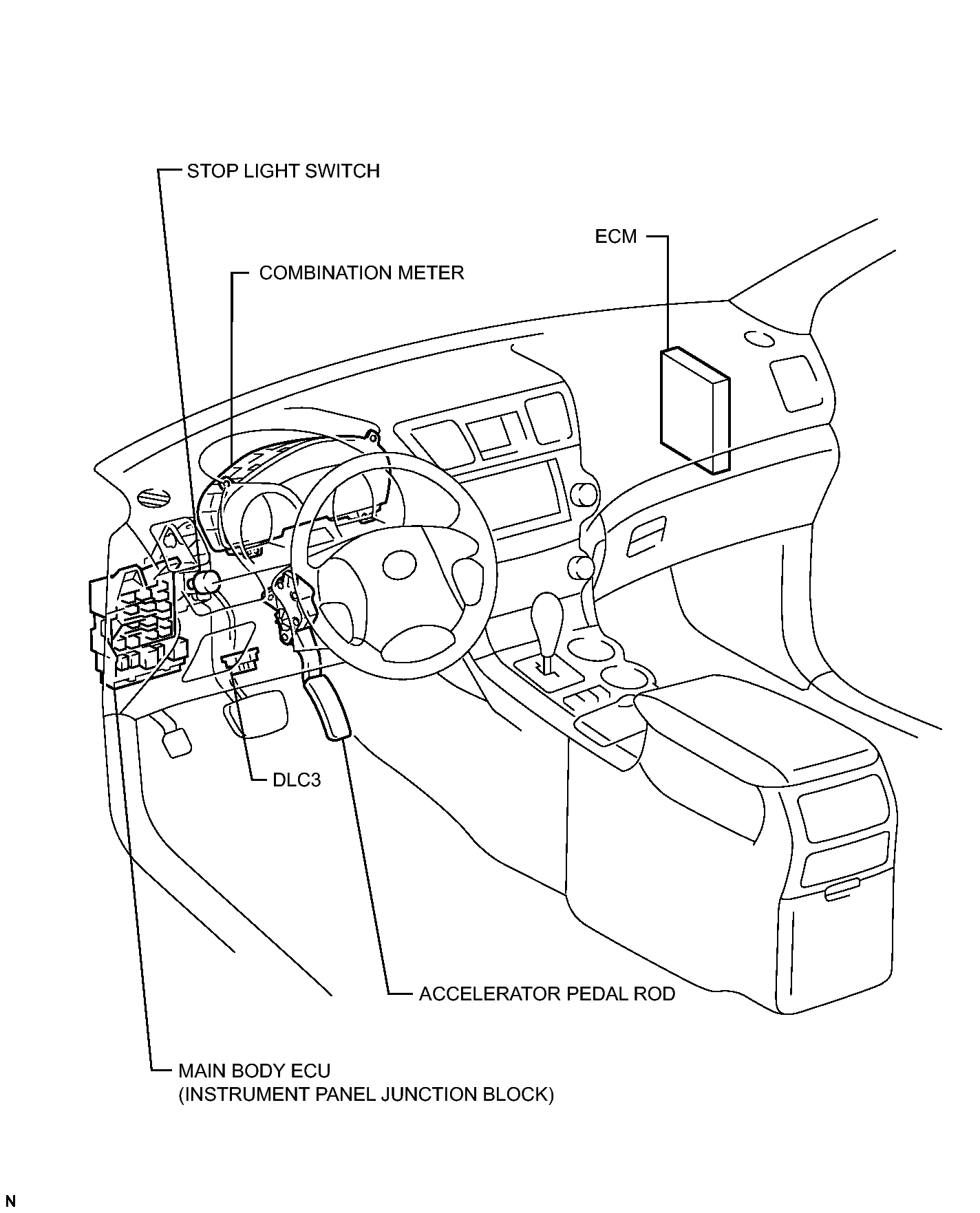

Fig 1: Identifying Engine Control System Replacement Components (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

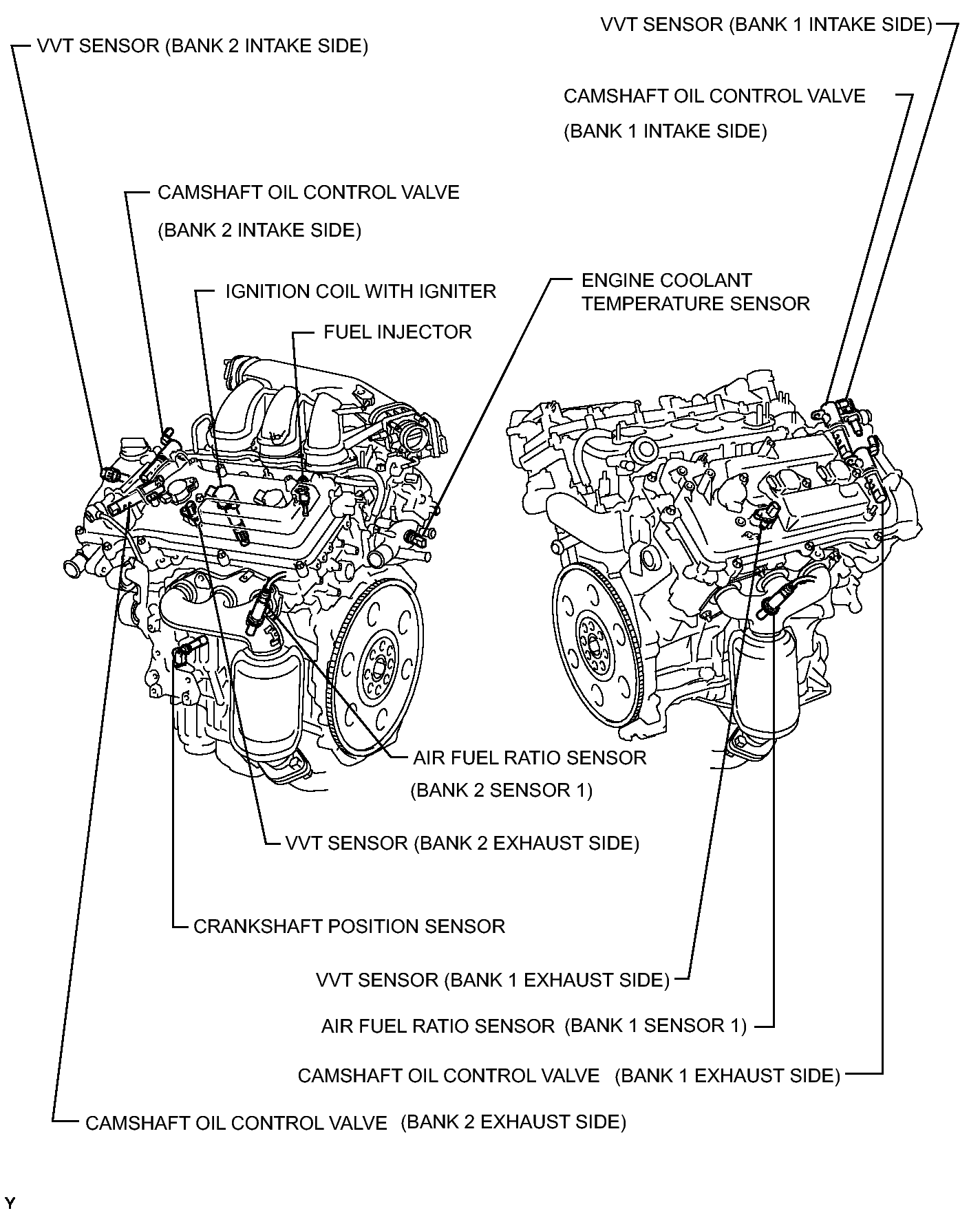

Fig 1: Identifying Engine Control System Replacement Components (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

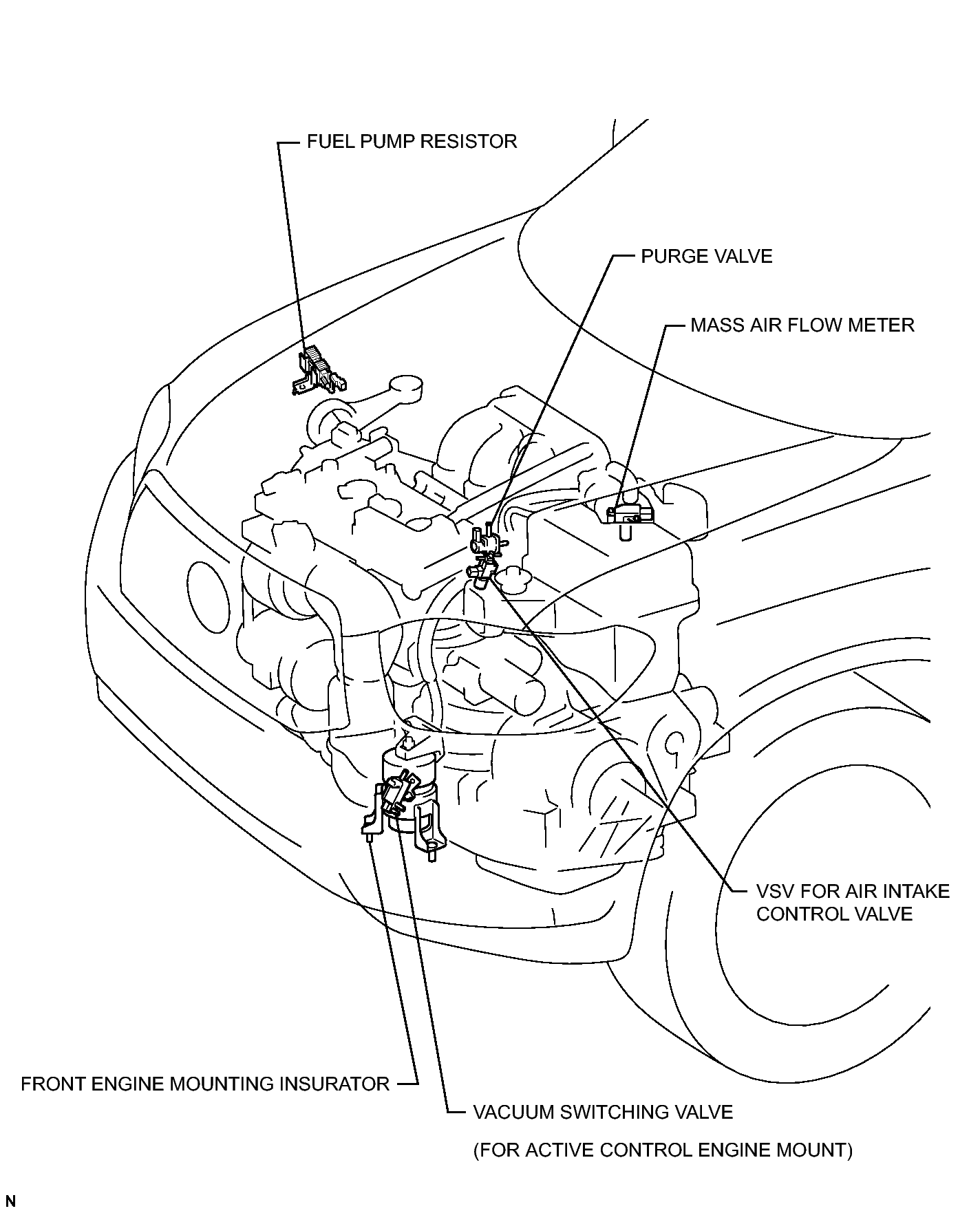

Fig 1: Identifying Engine Control System Replacement Components (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

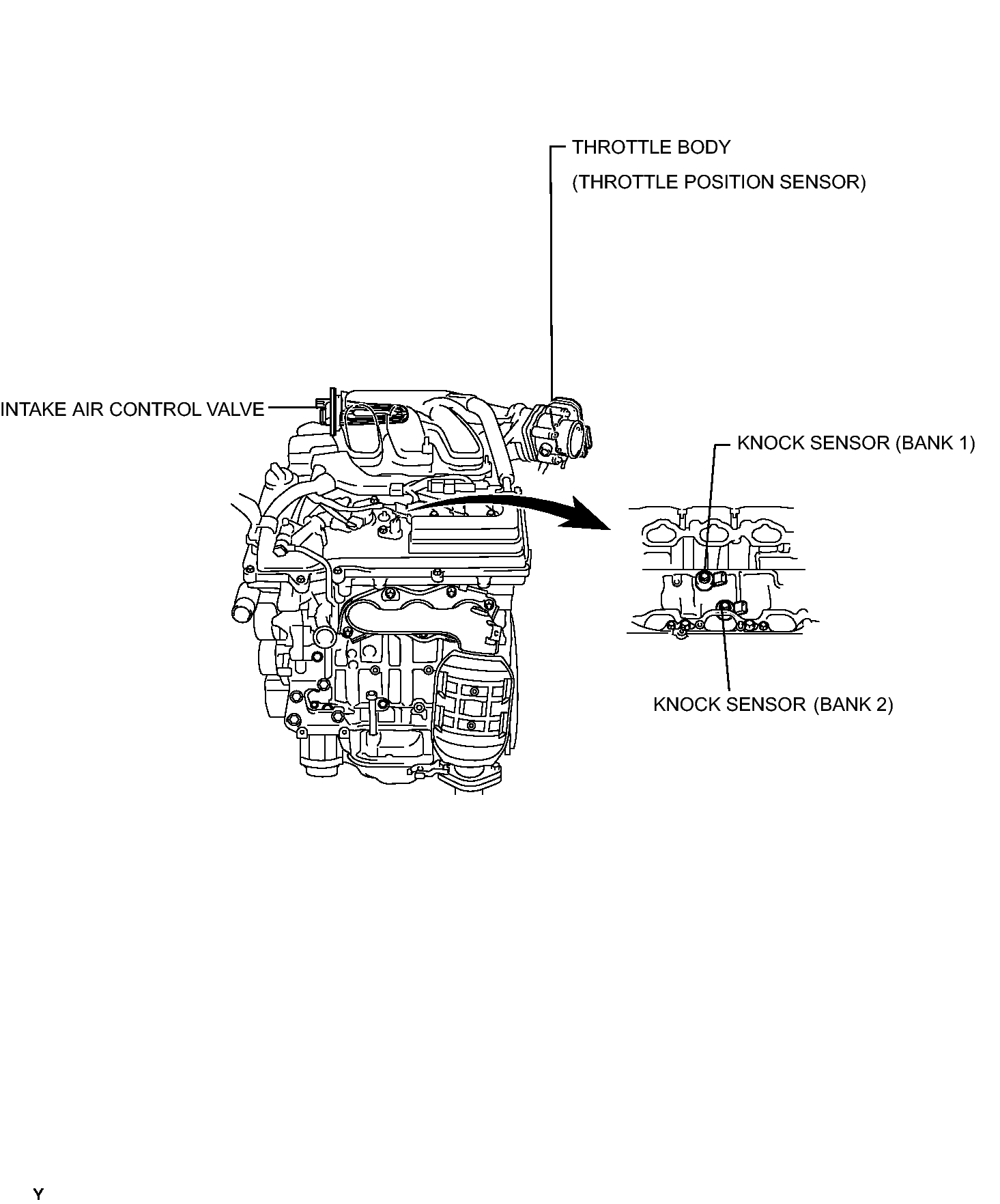

Fig 1: Identifying SFI System Components (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

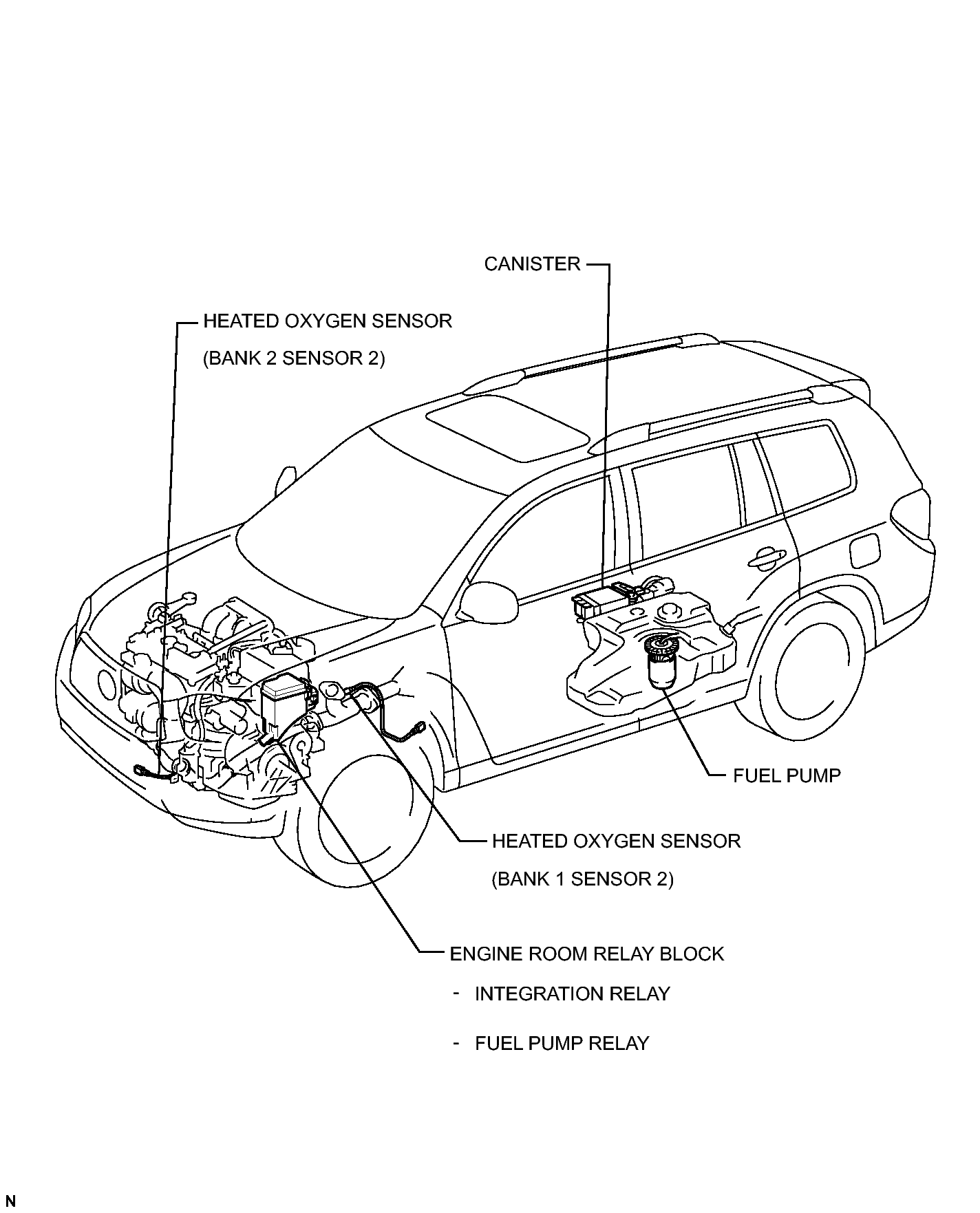

Fig 1: Identifying SFI System Components (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
