Spiral Cable: Components: Illustration

Fig 1: Identifying Spiral Cable Replacement Components (1 of 2)
GTY300837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

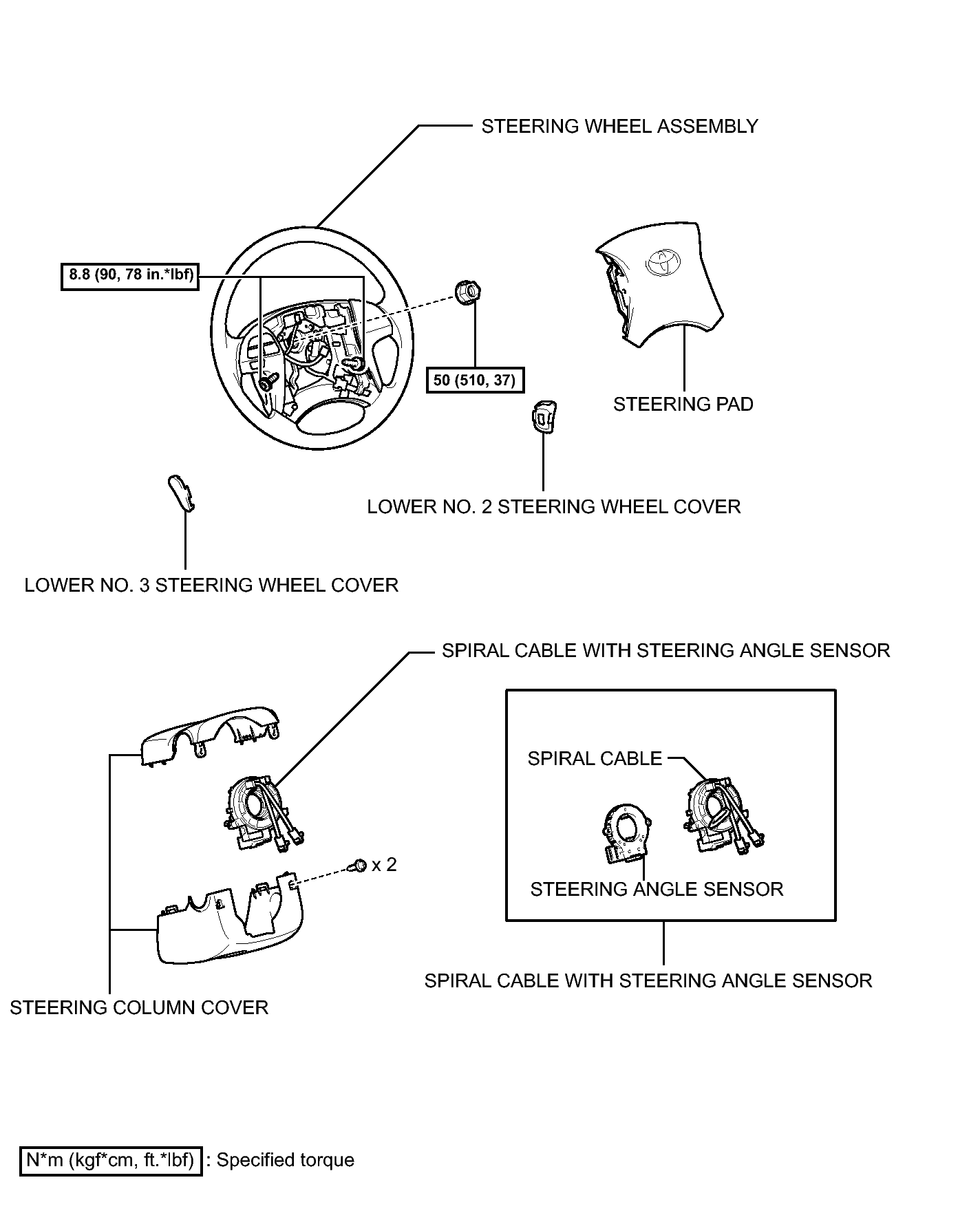

Fig 1: Identifying Spiral Cable Replacement Components With Torque Specification (2 of 2)
GTY188469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
